TKR0370
TKR0370
Pitch
37 mm
37 mm
Inner height
28 mm
28 mm
Inner widths
40 - 80 mm
40 - 80 mm
Bending radii
55 - 100 mm
55 - 100 mm
Stay Variants
TKR0370 RE
more details

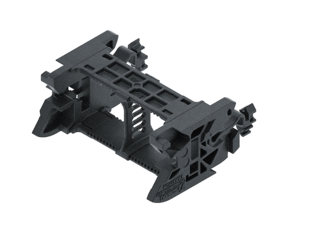

Stay Variants
TKR0370 RE
Frame screw-in stay
- Plastic stay for light to medium loads. Assembly without screws.
- Outside/inside: to open by rotating.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 75 | 252 | 348 | 167 |
| 100 | 302 | 427 | 192 |
| 150 | 402 | 548 | 242 |
| 200 | 502 | 741 | 292 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.55 kg/m at Bi 50 mm. For other inner widths, the maximum additional load changes.
Speed
up to 5 m/s
Acceleration
up to 200 m/s2*
Travel length
up to 2.8 m
Additional load
up to 2.4 kg/m
* For values > 20 m/s2, please contact us, we are happy to advise you!
