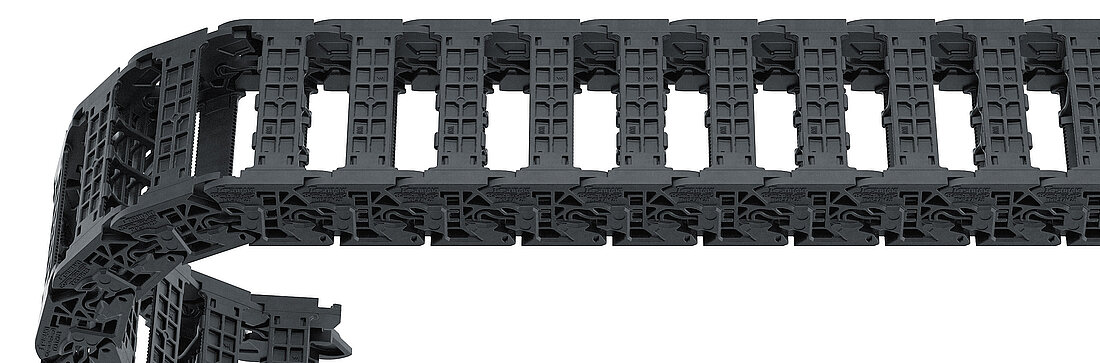

Plastic stay RE – screw-in frame stay

Properties

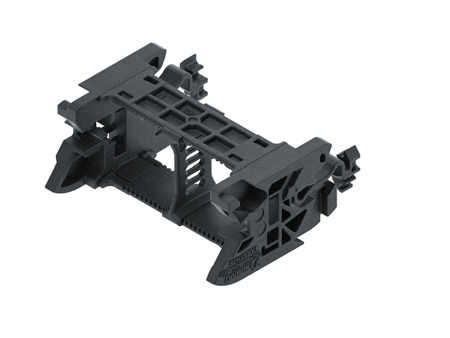

  • Plastic stay for light and medium loads. Assembly without screws.
  • Available in 5 widths.
  • Outside/inside: to open by rotating.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 40 - 80 mm

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t for odd number of chain links
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">37</td> <td class="hi red">28</td> <td class="hg">35</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 19</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0.53 - 0.61</td> </tr> </tbody> </table>
Bi [mm]
40 50 60 70 80
KR [mm]
55 75 100

Order example

TKR0370
Type
80
Bi [mm]
RE
Stay variant
75
KR [mm]
-
703
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As standard, the divider system is mounted on every 2nd chain link. As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

Fixable dividers are available for applications with lateral accelerations and for applications lying on the side. The arresting cams click into place in the locking grids in the crossbars (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A7.586
BA862
ABi [mm]4050607080
aT min [mm]89898

Divider system TS1
with continuous height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A7.5862
BA8622
ABi [mm]4050607080
aT min [mm]89898

Order example

TS1
Divider system
A
Version
3
nT
-
VD0
-
VD1
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT ].

If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 0.6 Nm for screws M4
Bi
[mm]
BEF
[mm]
nz
40593
50694
60795
70896
80997

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
F
M
Connection point
U
U
Connection type
