TKK series
TKK series

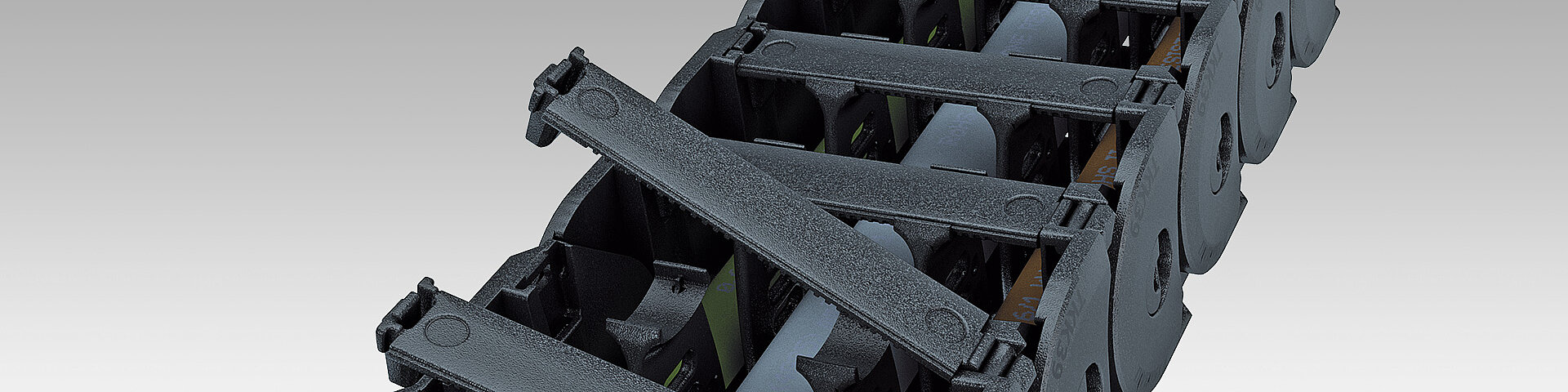

Dirt-repellent cable carriers made of plastic
- Very short steel end connectors
- Plastic chain links
- Extensive unsupported length
- Link system repels dust and chips
- Smooth surface for smooth running
- Inside openable (design 040)
- Dividers and height separations for cable separation

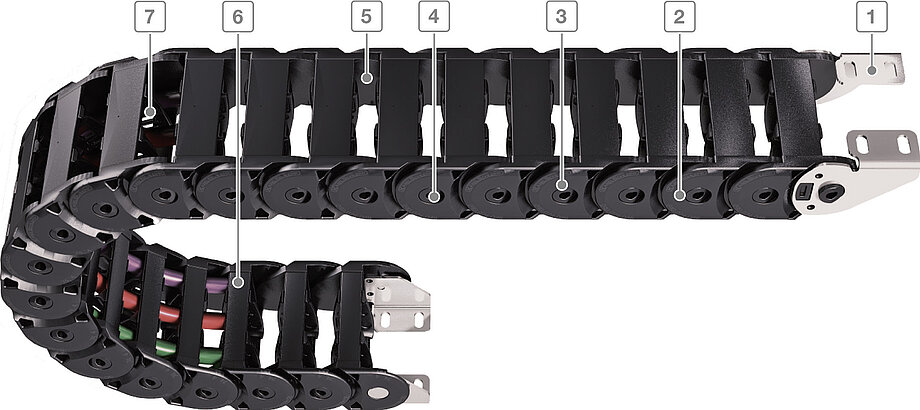

Features
Features
- High torsional rigidity
- Optimised dividers to protect cables: rounded inner and outer profile
- Extensive unsupported length
- New dirt-resistant design of the chain links to protect against dust and chips
- Smooth surface for optimum running
- Closed and openable designs
- Very short end connectors
- Fixable dividers
- Optimised stroke system
- High side stability
- Space-saving design for small spaces
Long travel length
Cannot be opened
Opens inward
Sliding dividers
Fixable dividers
Height separation possible
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)
Optimised divider design to protect cables
New design of chain links. Link system repels dust, chips and dirt
Very short end connectors
Types
more details

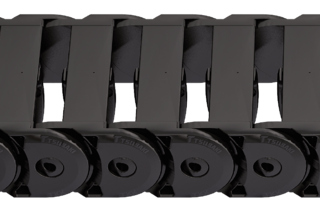

TKK39
- Inner height [hi]: 39 mm
- Inner widths [Bi]: 39 - 99 mm
- Pitch [t]: 39 mm
- Bending [KR]: 46 - 95 mm
| Type | hi [mm] | Bi [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|
| TKK39 | 39 | 39 - 99 | 39 | 46 - 95 |
