TKK39
TKK39
Pitch
39 mm
39 mm
Inner height
39 mm
39 mm
Inner widths
39 - 99 mm
39 - 99 mm
Bending radii
46 - 95 mm
46 - 95 mm
Stay Variants
TKK39.020
more details
TKK39.040
more details
Stay Variants

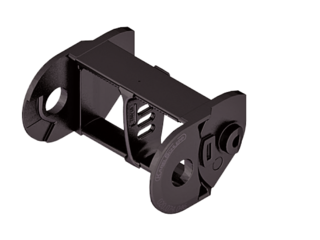

TKK39.020
Closed frame
- Weight-optimised, closed plastic frame with particularly high torsional rigidity.
- Outside/inside: closed.

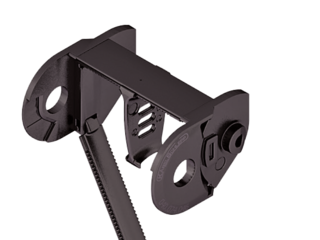

TKK39.040
Frame with inside opening crossbar
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Crossbars can be opened at any position on one side.
- Inside: openable.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 46 | 142 | 172 | 222 | 149 |
| 58 | 166 | 196 | 260 | 161 |
| 70 | 190 | 220 | 298 | 173 |
| 95 | 240 | 270 | 376 | 198 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.56 kg/m. The maximum additional load changes with deviating inner widths.
Speed
up to 3 m/s
Acceleration
up to 9 m/s2
Travel length
up to 4.8 m
Additional load
up to 10 kg/m
GLIDING ARRANGEMENT
| KR [mm] | H [mm] | nRKR | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 46 | 142 | 0 | 222 | 149 |
| 58 | 150 | 2 | 405 | 196 |
| 70 | 150 | 3 | 551 | 257 |
| 95 | 150 | 4 | 770 | 341 |
Speed
up to 2.5 m/s
Acceleration
up to 9 m/s2
Travel length
up to 120 m
Additional load
up to 10 kg/m
The gliding cable carrier must be guided in a channel.
Glide shoes must be used for gliding applications.
Only design 020 can be used for a gliding arrangement.
