TKK39.040

TKK39.040

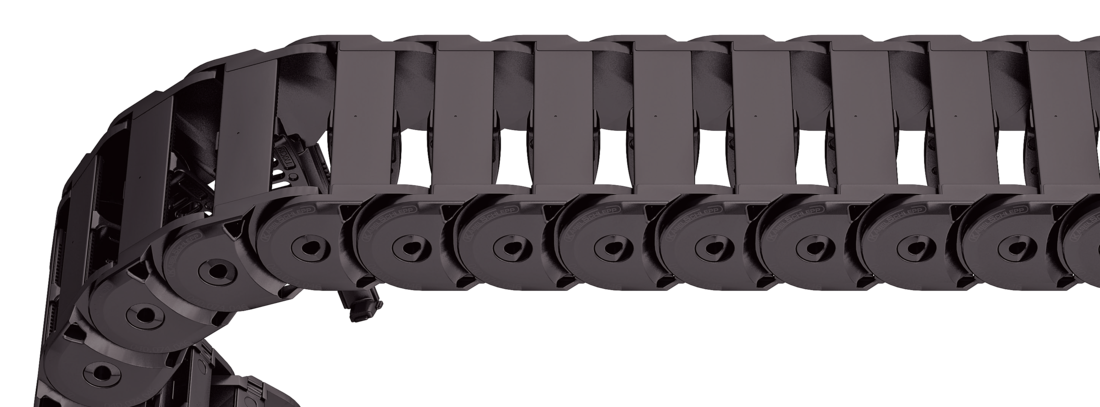

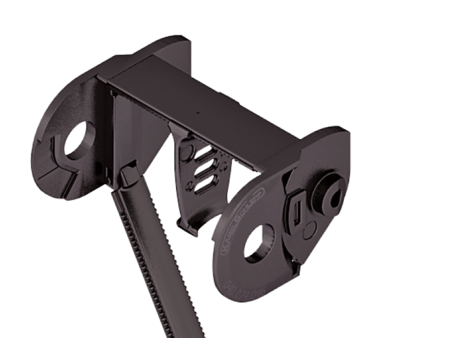

Stay variant 040 – with inside opening crossbar

Properties

  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Crossbars can be opened at any position on one side.
  • Inside: openable.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 39 - 99 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">39</td> <td class="hi red">39</td> <td class="hg">50</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 21</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">1.29 – 1.72</td> </tr> </tbody> </table>
Bi [mm]
39 59 74 99
KR [mm]
46 58 70 95

Order example

TKK39
Type
040
Stay variant
74
Bi [mm]
70
KR [mm]
-
1950
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on every 2nd chain link as a standard. Dividers, and the complete divider system (dividers with height separations) comes as diameter adjustable as standard (version A).

For applications with lateral accelerations and applications with the cable carrier rotated by 90°, the dividers can easily be fixed on the stay. The arresting cams snap into the catch profiles in the crossbars (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A5107
B9.51072

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A51072
B9.510722

The dividers can be moved in the cross section.

Order example

TS1
Divider system
A
Version
3
nT
-
VD1
-
VD3
Height separation

Please state the designation of the divider system (TS0, TS1,...), the version, and the number of dividers per cross section [nT].

When using divider systems with height separation (TS1), please additionally state the position (e.g. VD1) viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Connection surface
A – threaded joint outside (standard)
I – threaded joint inside

Order example

Steel
Steel
End connector
F
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
