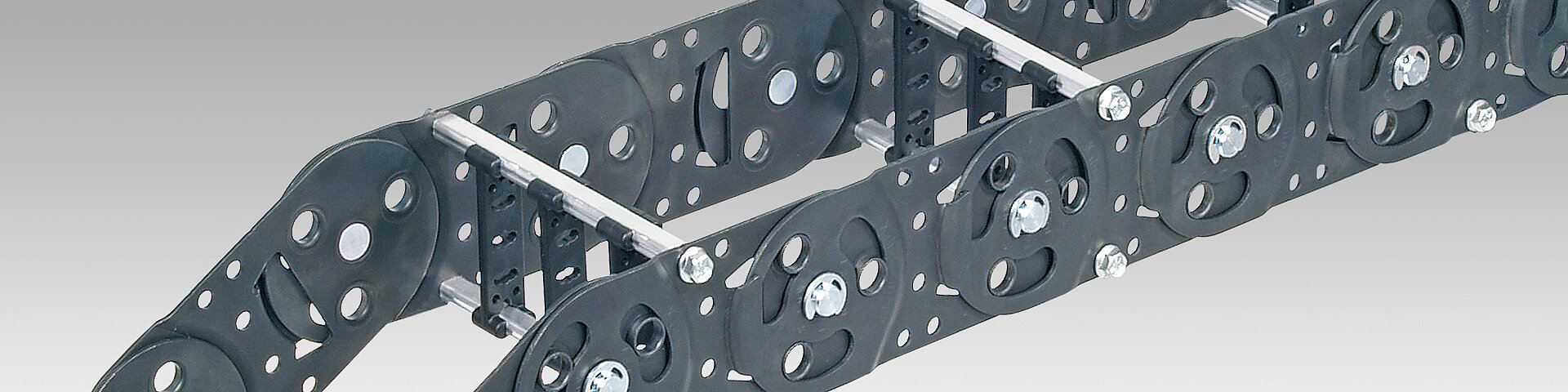

LS/LSX-Series
Cost-effective steel chains with light design

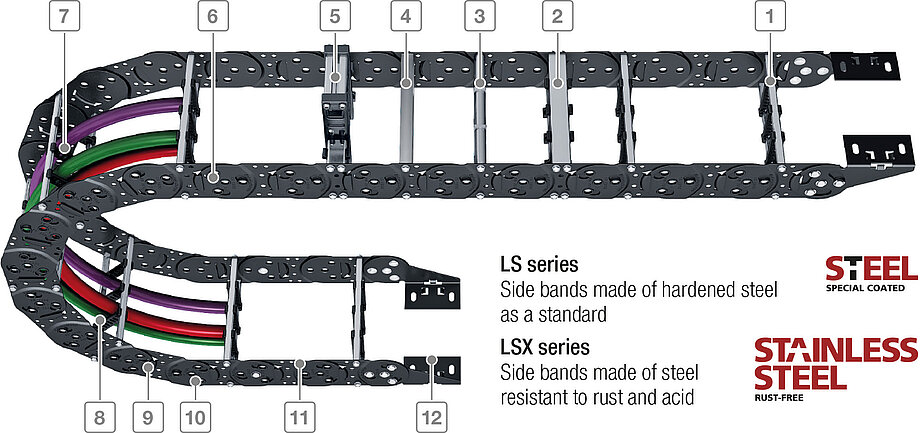

- All stays available in 1 mm width sections
- 4-fold bolted aluminum stays for extreme loads
- Rolling stays
- Aluminum hole stays
- Mounting frame stays
- Stops integrated into link plate – no additional bolts required
- Different separation options for the cables
- Plastic or steel dividers
- Weight-optimized side bands made of hardened steel or stainless steel
- Optional center bolt for applications with high loads
- Good ratio of inner to outer width – no end divider required
- End connectors for different connection variants
Features
- Weight-optimized one-part link plate design
- Better value than comparable steel cable carriers
- Significantly higher unsupported lengths compared to plastic cable carriers of a similar size
- Integrated radius and pre-tension stops – in a good value design
- Bolted stay systems, solid end connectors
- Cover with steel band available on request
- Also possible as a double band solution
- Good corrosion resistance
The design
The weight-optimized link plate design makes the cable carriers very light yet highly sturdy. For the LS series, the unsupported length is significantly higher compared to plastic cable carriers of a similar size.
Weight-optimized link plates consist of only one plate – the stop system is integrated
Lightweight side bands without additional bolts – hardened steel or stainless steel
Optional: Center bolts and circlip for applications with high loads
Optional: C-rail for strain relief elements attached in the connection

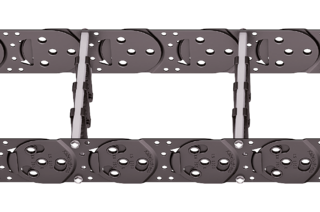

LS/LSX1050
- Inner height [hi]: 48 - 58 mm
- Chain width [Bk]: 100 - 600 mm
- Pitch [t]: 105 mm
- Bending [KR]: 105 - 430 mm
| Type | hi [mm] | Bi [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|
| LS/LSX1050 | 48 - 58 | 54 - 584 | 105 | 105 - 430 |
Sturdy and durable, even under extreme conditions
Double-band steel cable carrier LS1050
- Up to 40% longer unsupported lengths compared to LS1050 with standard side band with the same additional load, as part of the load diagram
- Very high additional loads: up to 40 kg/m possible
- Long service life even with high dynamic loads
- High travel speeds

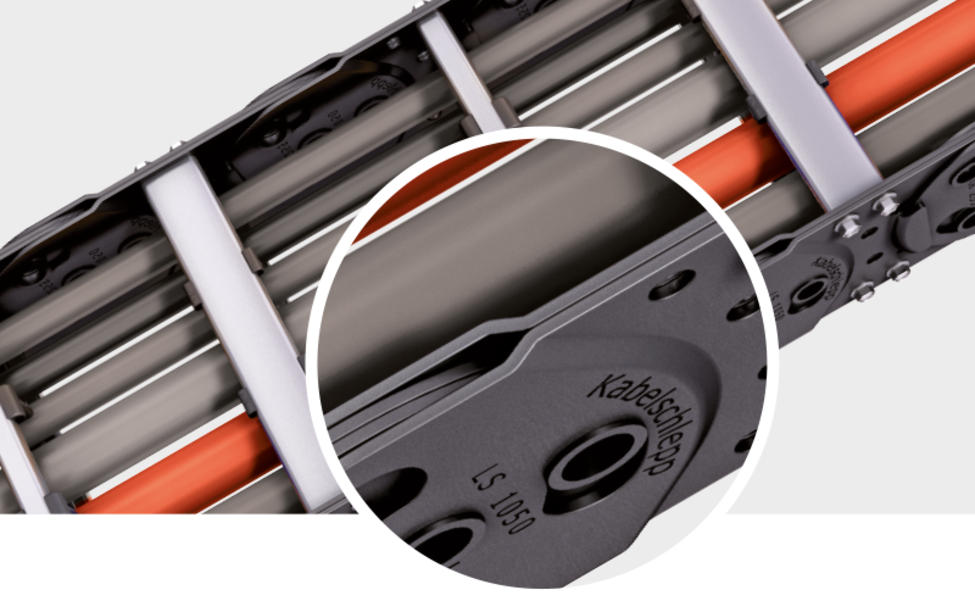

Longer service life through hardened side bands
The hardened surface significantly increases the service life of the LS1050. Tests were carried out on cable carriers with identical designs.
The LS1050 is therefore ideal for applications with many travel cycles, for example in 3-shift operation.
Significantly higher unsupported lengths compared to plastic cable carriers of a similar size
Load diagram for unsupported length
depending on the additional load
Weight-optimized through adapted link plate design
