LS/LSX1050
LS/LSX1050
Pitch
105 mm
105 mm
Inner heights
48 - 58 mm
48 - 58 mm
Chain widths
100 - 600 mm
100 - 600 mm
Bending radii
105 - 430 mm
105 - 430 mm
Stay Variants
LS/LSX1050 RS 2
more details
LS/LSX1050 RV
more details
LS/LSX1050 RR
more details
LS/LSX1050 LG
more details
LS/LSX1050 RMAI
more details
LS/LSX1050 RMAO
more details
Stay Variants

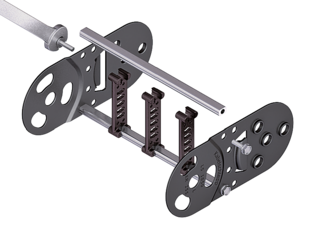

LS/LSX1050 RS 2
Frame stay narrow, bolted
- Quick to open and close.
- Aluminum profile bars for light to medium loads. Easy threaded connection.
- Inside/outside: Threaded joint easy to release.

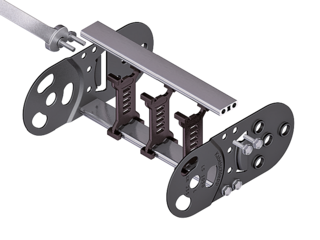

LS/LSX1050 RV
Frame stay, reinforced
- Aluminum profile bars for medium to heavy loads and large cable carrier widths. Double threaded joint on both sides.
- Inside/outside: Threaded joint easy to release.

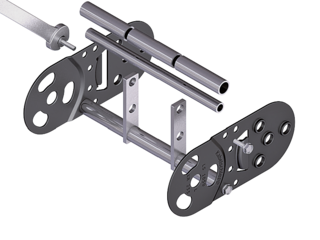

LS/LSX1050 RR
Frame stay, tube version
- Steel rolling stays with gentle cable support and steel dividers. Ideal for using media hoses with soft sheathing.
- Inside/outside: Screw connection detachable.

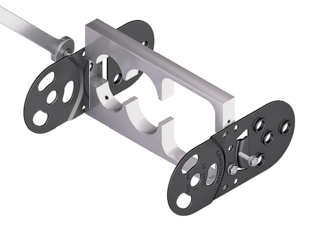

LS/LSX1050 LG
Frame stay, split
- Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
- Inside/outside: Threaded joint easy to release.

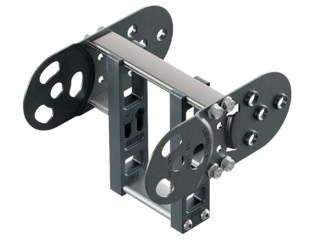

LS/LSX1050 RMAI
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Inside: Screw-fixing easy to release.

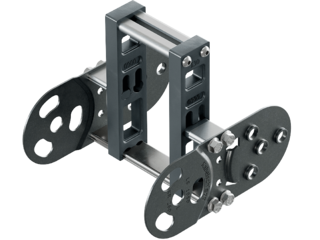

LS/LSX1050 RMAO
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Outside: Screw-fixing easy to release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 105 | 330 | 540 | 250 |
| 125 | 370 | 603 | 270 |
| 155 | 430 | 697 | 300 |
| 195 | 510 | 823 | 340 |
| 260 | 640 | 1027 | 405 |
| 295 | 710 | 1137 | 440 |
| 325 | 770 | 1231 | 470 |
| 365 | 850 | 1357 | 510 |
| 430 | 980 | 1561 | 575 |
Installation height Hz: Hz = H + 10 mm/m
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Intrinsic cable carrier weight qk = 3.8 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 5 m/s
Acceleration
up to 10 m/s2
Travel length
up to 9.5 m
Additional load
up to 35 kg/m

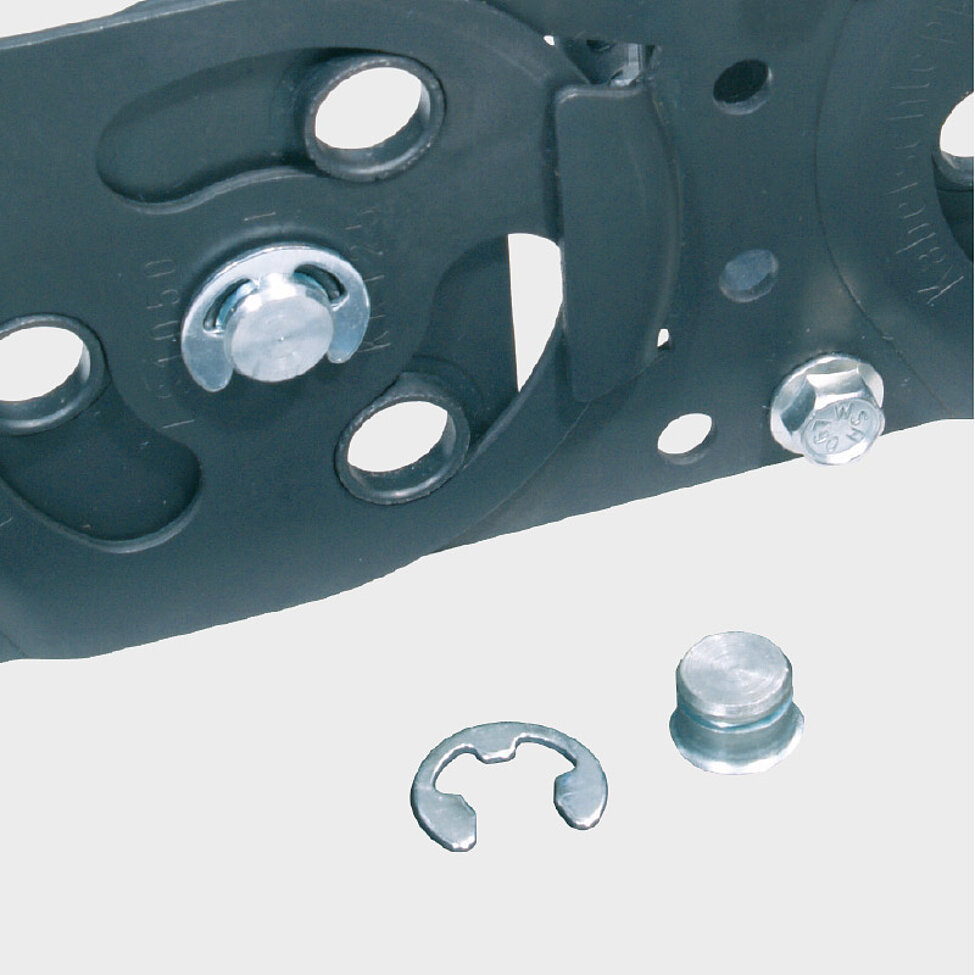

Information on selecting center bolts and stay arrangement
- Cable carrier length < 4 m: half-stayed arrangement as a standard
- Cable carrier length > 4 m: fully-stayed arrangement required
- Stay width BSt > 400 mm: fully-stayed arrangement required
- Travel speed > 2.5 m/s: fully-stayed arrangement required
- Use of support rollers: Center bolt and fully-stayed arrangement required
