LS/LSX1050 RS 2

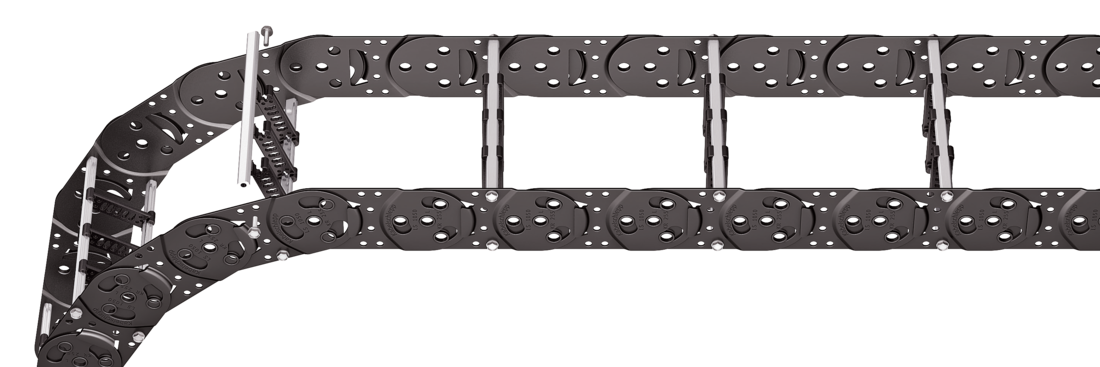

Aluminum stay RS 2 – frame stay narrow, threaded joint

Properties

Quick to open and close

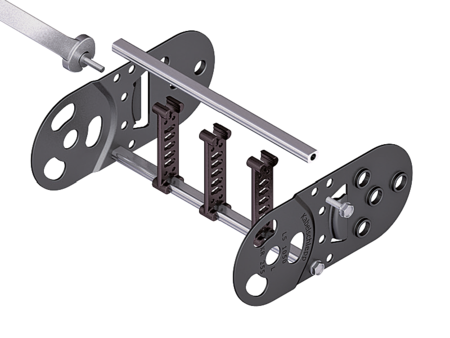

Aluminum profile bars for light to medium loads. Simple threaded joint.
Available customized in 1 mm grid.
Inside/outside: Threaded joint easy to release.

Stays on every 2nd section, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_k 100 - 400 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length Lk: Lk ≈ LS/2 + LB

Cable carrier length Lk rounded to pitch t

^* in 1 mm width sections

KR [mm]
105	125	155	195	260	295	325	365	430

Order example

LS1050

Type

•

180

BSt [mm]

•

RS 2

Stay variant

•

125

KR [mm]

•

Material

2415

Lk [mm]

Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS). As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping on a socket (available as an accessory). The socket additionally serves as a spacer between the dividers and is available in 1 mm sections between 3 – 50 mm as well as 16.5 and 21.5 mm (version B).

Divider system TS0
without height separation

Vers.	aT min [mm]	ax min [mm]	ac min [mm]	nT min
A	7	14	10	–

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.	aT min [mm]	aT max [mm]	ax min [mm]	ac min [mm]	nT min
A	7	25	14	10	2

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.	aT min [mm]	ax min [mm]	ac min [mm]	nT min
A	7	23	19	2

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 4 mm).

Please note that the real dimensions may deviate slightly from the values indicated here.

Divider system TS3
with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

Divider version A

End divider

Vers.	aT min [mm]	ax min [mm]	ac min [mm]	nT min
A	6/2*	14	10	2

* For End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

a_x (center distance of dividers) [mm]
a_c (nominal width of inner chamber) [mm]
14	16	19	23	24	28	29	32	33	34	38	39
10	12	15	19	20	24	25	28	29	30	34	35
43	44	48	49	54	58	59	64	68	69	74	78
39	40	44	45	50	54	55	60	64	65	70	74
79	80	84	88	89	94	96	99	112
75	76	80	84	85	90	92	95	108

When using partitions with ax > 49 mm we recommended an additional preferential central support.

Order example

TS3

Divider system

•

Version

•

n_T

•

Chamber

•

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/ax] (as seen from the driver).

If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.
