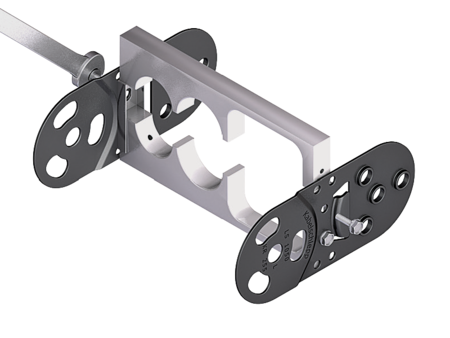

Aluminum stay LG – hole stay, split version

Properties

  • Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
  • Available customized in 1 mm grid.
  • Inside/outside: Threaded joint easy to release.

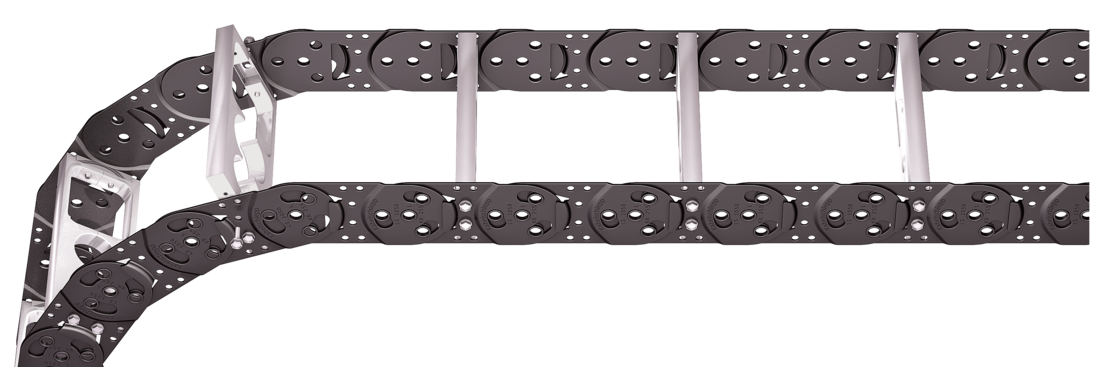

Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bk 100 - 600 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Calculating the stay width
Stay width BSt: BSt = Σ D + Σ c + 2 a0
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="dmax red"><strong>D<sub>max</sub></strong><br>[mm]</th> <th class="dmin"><strong>D<sub>min</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]</th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="cmin"><strong>c<sub>min</sub></strong><br>[mm]</th> <th class="a0min"><strong>a<sub>0</sub> min</strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk50"><strong>q<sub>k</sub> 50%</strong><br>[kg/m]<sup>**</sup></th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">105</td> <td class="hi">48</td> <td class="dmax red">48</td> <td class="dmin">12</td> <td class="hg">80</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 54 - 554 </td> <td class="bst red"> 82 - 582 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 18</td> <td class="cmin">4</td> <td class="a0min">14</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk50">4.00 - 7.99</td> </tr> </tbody> </table>
* in 1 mm width sections ** Hole ratio of the hole stay approx. 50 %
KR [mm]
105 125 155 195 260 295 325 365 430
qk 50%: 4.00 - 7.99 mm Hole ratio of the hole stay approx. 50 %

Order example

LS1050
Type
•
180
BSt [mm]
•
LG
Stay variant
•
125
KR [mm]
•
Sb
Material
-
2415
Lk [mm]
HS
Stay arrangement

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Connection surface
A – connecting surface outside
I – connecting surface inside

Order example

Steel
Steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs before driver and fixed point.
