XLT series
XLT series
Tubes with variable cable carrier widths

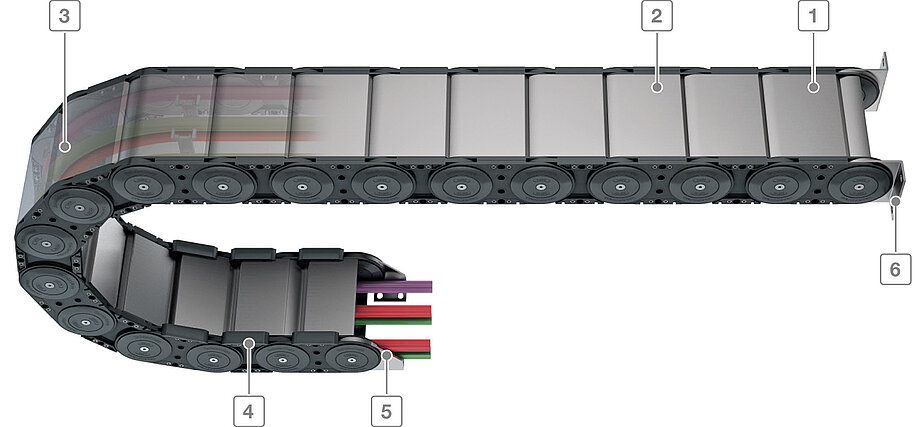

- Aluminum covers available in 1 mm width sections
- 4 screw-fixing points for extreme loads
- Can be opened on the inside and the outside for installation of cables and hoses
- Replaceable glide shoes
- Sturdy end connectors made of steel
- Flange connection
Features
Features
- Sizes/dimensions
- Low intrinsic weight
- Optimum force transmission via the large-surface stroke system (2 disc principle)
- Plastic side bands in combination with aluminum stays
- Versions with aluminum stays available in 1 mm width sections up to 1000 mm inner width
- Can be opened on both sides
- Large selection of separating options for cables and hoses Optionally with strain relief
Inner width (Bi) in 1 mm increments
Long travel length
High additional load
Opens inward/outward
Sliding dividers
Fixable dividers
Height separation possible
Bolted covers systems for maximum stability even for large cable carrier widths
Replaceable glide shoes for long service life for gliding applications
Sturdy end connectors made of steel (different connection variants)
Many separation options for the cables
Types
more details

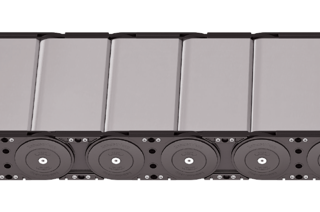

XLT1650
- Inner height [hi]: 105 mm
- Inner widths [Bi]: 200 - 1000 mm
- Pitch [t]: 165 mm
- Bending [KR]: 300 - 550 mm
| Type | hi [mm] | Bi [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|
| XLT1650 | 105 | 200 - 1000 | 165 | 300 - 550 |
