FLATVEYOR®

Cable management system solution for cleanroom applications

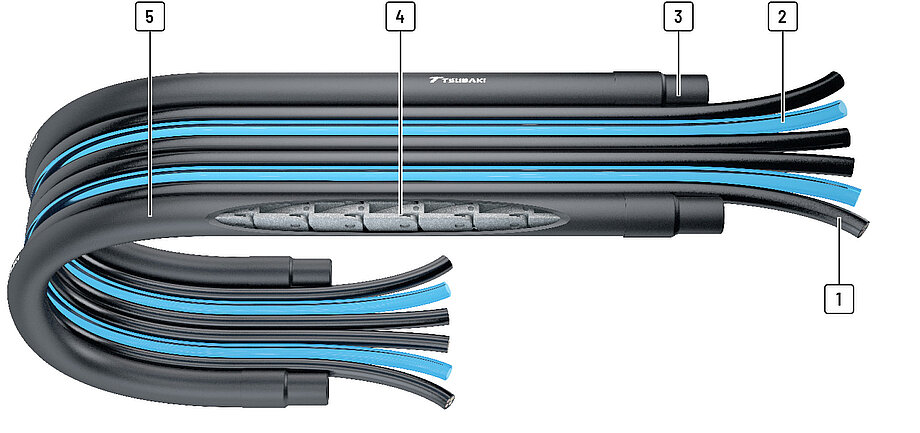

Flexibility PVC cables from our lineup, based on your specifications
Polyurethane air tubes, based on your specifications
Stopper for support members
Support members on both sides for a freestanding guiding
Covered tube for support members

Features

No friction occurs: Cleanroom IPA ISO Class 2 certified
Solve particle issues generated from the friction of cable carriers and cables
Usable with long travel strokes
Easy to make a clean for maintenance
Minimizes bouncing
Quiet
Compact & lightweight
High speed operation

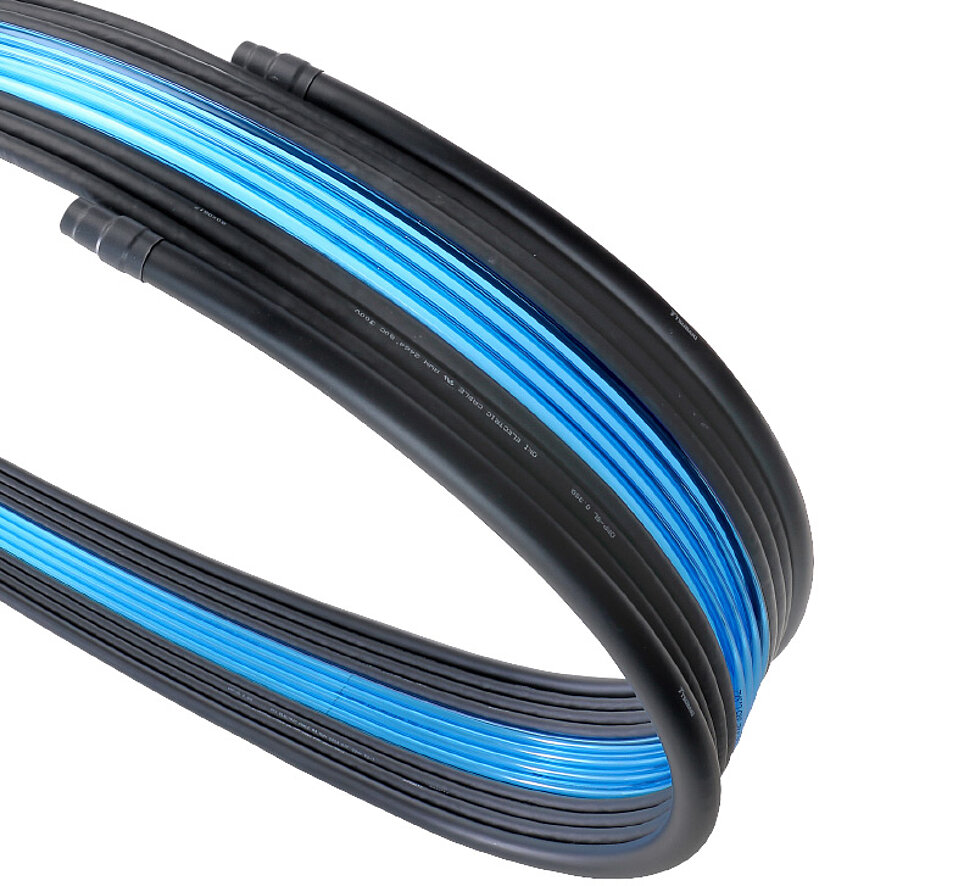

Line up cables with excellent flexibility and elasticity

High travel acceleration

Quiet running/low noise

Low weight

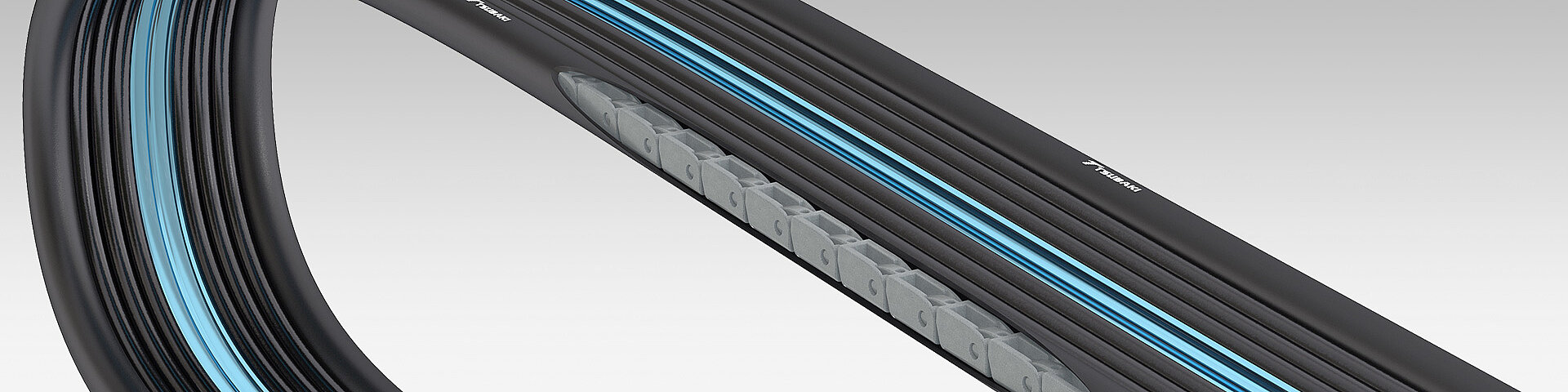

FLATVEYOR®

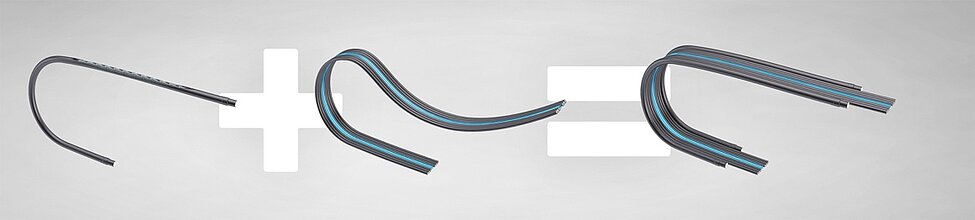

FLATVEYOR^® is a free-standing flat cable guiding system that makes full use of our cable carrier technology and experience.

From pharmaceutical industry through medical technology to high-tech industry – all of them require an especially low-particle environment and “technical cleanliness” for their production processes. FLATVEYOR® can support to reduce the downtime and improve your productivity.

FLATVEYOR^® is a free-standing flat cable system with internal support members to keep straight movement with a high speed.

No hopping, No sagging, No falling over sideways! The support members act as reliable guides which can be moved in one direction along the intended minimum bending radius, whereby the cables and tubes are guided reliably.
