Power cables: Multi core/single core

Hi-flex Power cables for use in cable carriers

  • Power supply of electrical applications and electric drives
  • Transmission of large electrical currents

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands
  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands
  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

Power cables

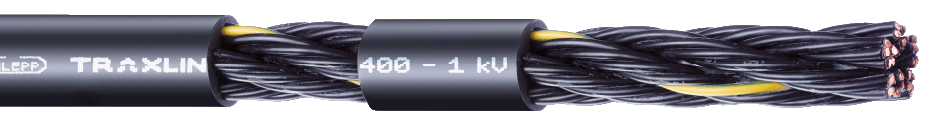

POWER 400 1 kV

Outer jacket material PVC
Shield Unshielded
Flexibility hi-flex
Demands demanding/ high demanding
Up to motion cycles 4 Million
Travel length up to 100 m
Stranding Bundle stranded
more details

POWER 400 C 1 kV

Outer jacket material PVC
Shield Shielded
Flexibility hi-flex
Demands demanding/ high demanding
Up to motion cycles 4 Million
Travel length up to 100 m
Stranding Bundle stranded
more details

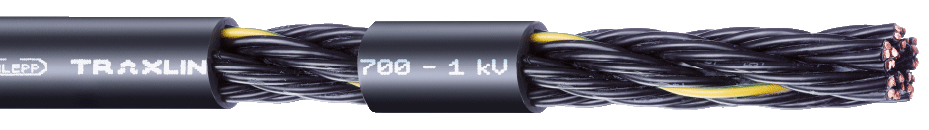

POWER 700 1 kV

Outer jacket material PUR
Shield Unshielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Bundle stranded
more details

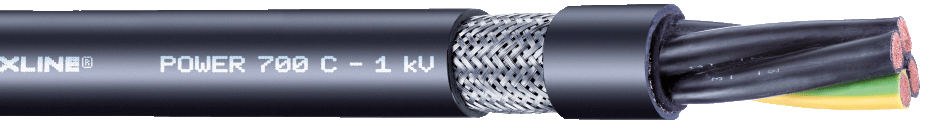

POWER 700 C 1 kV

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Bundle stranded
more details

POWER 1000 TPE 1 kV

Outer jacket material TPE
Shield Unshielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 10 Million
Travel length up to 1000 m
Stranding Bundle stranded
more details

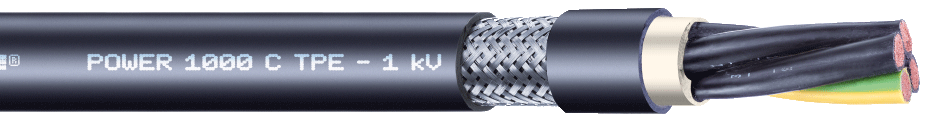

POWER 1000 C TPE 1 kV

Outer jacket material TPE
Shield Shielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 10 Million
Travel length up to 1000 m
Stranding Bundle stranded
more details

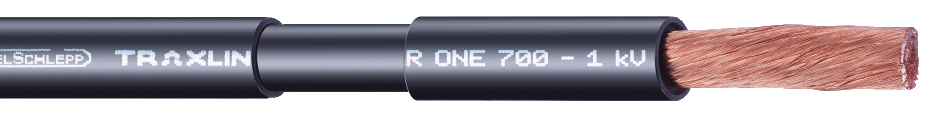

POWER ONE 700 1 kV

Outer jacket material PUR
Shield Unshielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Single core
more details

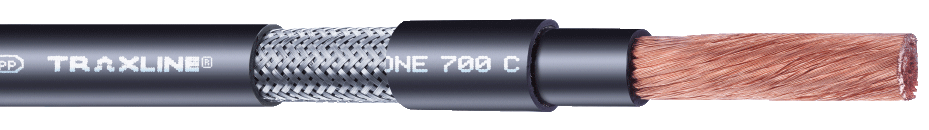

POWER ONE 700 C 1 kV

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Single core
more details

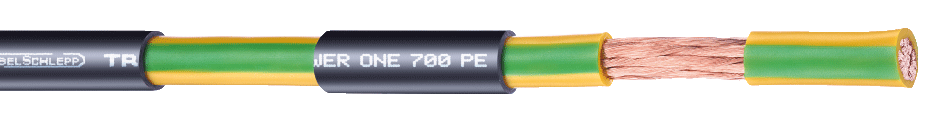

POWER ONE 700 PE

Outer jacket material PUR
Shield Unshielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Single core
more details

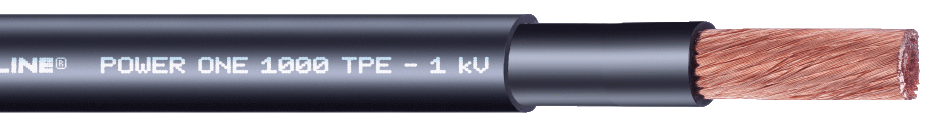

POWER ONE 1000 TPE 1 kV

Outer jacket material TPE
Shield Unshielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 10 Million
Travel length up to 1000 m
Stranding Single core
more details

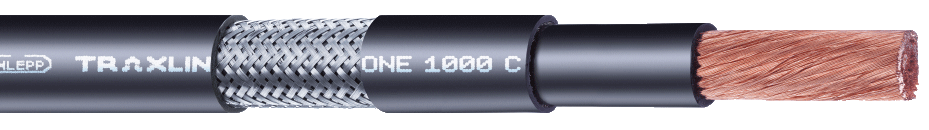

POWER ONE 1000 C TPE 1 kV

Outer jacket material TPE
Shield Shielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 10 Million
Travel length up to 1000 m
Stranding Single core
more details
Type Outer jacket material Shield Flexibility Demands Up to motion cycles Travel length up to Stranding
POWER 400 1 kV PVC Unshielded hi-flex demanding/ high demanding 4 Million 100 m Bundle stranded
POWER 400 C 1 kV PVC Shielded hi-flex demanding/ high demanding 4 Million 100 m Bundle stranded
POWER 700 1 kV PUR Unshielded hi-flex high demanding 7 Million 500 m Bundle stranded
POWER 700 C 1 kV PUR Shielded hi-flex high demanding 7 Million 500 m Bundle stranded
POWER 1000 TPE 1 kV TPE Unshielded hi-flex very high demanding 10 Million 1000 m Bundle stranded
POWER 1000 C TPE 1 kV TPE Shielded hi-flex very high demanding 10 Million 1000 m Bundle stranded
POWER ONE 700 1 kV PUR Unshielded hi-flex high demanding 7 Million 500 m Single core
POWER ONE 700 C 1 kV PUR Shielded hi-flex high demanding 7 Million 500 m Single core
POWER ONE 700 PE PUR Unshielded hi-flex high demanding 7 Million 500 m Single core
POWER ONE 1000 TPE 1 kV TPE Unshielded hi-flex very high demanding 10 Million 1000 m Single core
POWER ONE 1000 C TPE 1 kV TPE Shielded hi-flex very high demanding 10 Million 1000 m Single core
