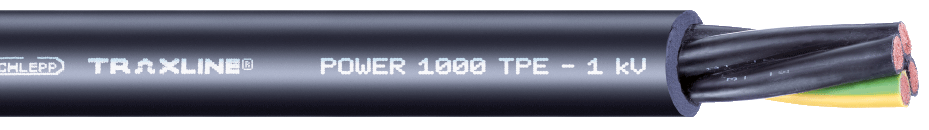

POWER 1000 TPE 1 kV

pressure-extruded, hi-flex design, high abrasion resistant

hi-flex design, low capacitance

bundled cores stranded around optimized center element (> 8 cores)

Up to 10 Million
Motion cycles

Up to 1000 m
Travel length

Conductor:	Class 6
Core insulation:	PP/9Y
Core identification:	Black, coded with white numbers, 1 x ye/gn
Core stranding:	Bundle stranded (> 8 cores) Layer stranded (≤ 8 cores)
Shield:	Shielded
Jacket color:	Black
Outer jacket:	TPE

Temperature range while moved:	-35 up to +90 °C
Minimum bend radius while moved:	KR_min ≥ 5 x Ø
V_max supported:	20 m/s
V_max gliding:	5 m/s
a_maxsupported:	50 m/s²
a_max gliding:	50 m/s²
Insulation resistance:	> 30 MΩ x km
Nominal voltage power core(s):	according to VDE 0.60/1.0 kV

Varying parameters possible.

Core number x Cross-section [mm²]	Part no.	max. ∅ [mm]	Cable weight [kg/m]	Copper index [kg/m]	Datasheet
25 G 2.5²	49534	24.8	0.904	0.625	View
4 G 4²	49542	11.5	0.227	0.154	View
7 G 4²	49543	15.3	0.395	0.268	View
5 G 4²	49544	12.9	0.282	0.240	View
4 G 6²	49552	13.5	0.331	0.240	View
5 G 6²	49553	15.1	0.411	0.288	View
7 G 6²	49555	18.2	0.578	0.403	View
4 G 10²	49562	16.9	0.546	0.384	View
5 G 10²	49563	18.9	0.658	0.500	View
4 G 16²	49565	21.0	0.834	0.640	View
5 G 16²	49566	23.7	0.923	0.800	View
4 G 25²	49568	25.8	1.329	1.000	View
5 G 25²	49569	28.8	1.599	1.200	View
4 G 35²	49571	29.8	1.763	1.344	View
5 G 35²	49560	33.4	2.187	1.750	View
4 G 50²	49572	34.4	2.556	1.920	View
4 G 70²	49573	40.6	3.594	2.700	View
4 G 95²	49574	45.1	4.481	3.800	View

Additional types upon request.

TRAXLINE® POWER 1000 TPE 1 KV
