Control Cables

Hi-flex Control cables for use in cable carriers

  • Communication between transmitter and receiver
  • Signal for turning on and off/start and stop

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands
  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands
  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

Control cables

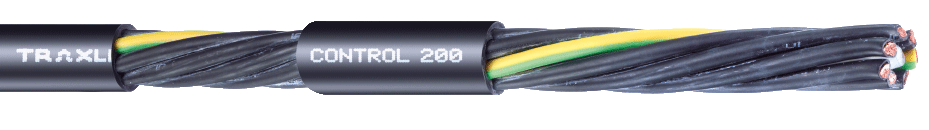

CONTROL 200

Outer jacket material PVC
Shield Unshielded
Flexibility bending flexible
Demands flexing/demanding
Up to motion cycles 2 Million
Travel length up to 25 m
Stranding Layer stranded
more details

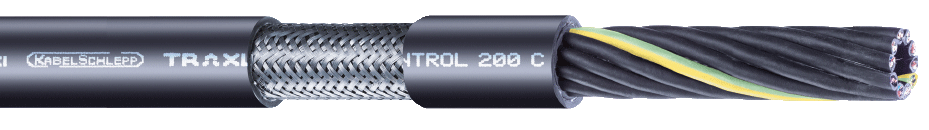

CONTROL 200 C

Outer jacket material PVC
Shield Shielded
Flexibility bending flexible
Demands flexing/ demanding
Up to motion cycles 2 Million
Travel length up to 25 m
Stranding Conductor cores layered
more details

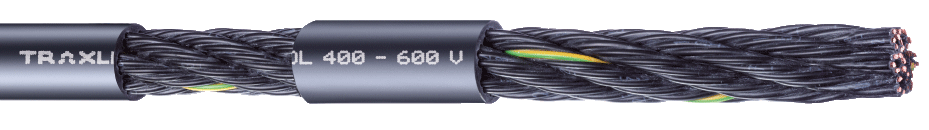

CONTROL 400 600 V

Outer jacket material PVC
Shield Unshielded
Flexibility hi-flex
Demands demanding/ high demanding
Up to motion cycles 4 Million
Travel length up to 100 m
Stranding Bundle stranded
more details

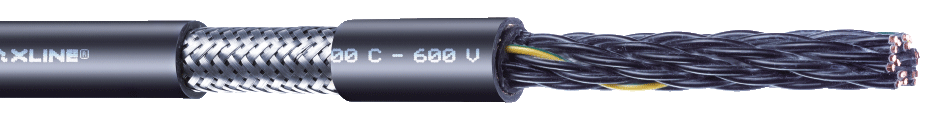

CONTROL 400 C 600 V

Outer jacket material PVC
Shield Shielded
Flexibility hi-flex
Demands demanding/ high demanding
Up to motion cycles 4 Million
Travel length up to 100 m
Stranding Bundle stranded
more details

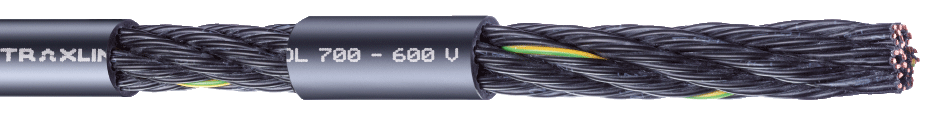

CONTROL 700 600 V

Outer jacket material PUR
Shield Unshielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Bundle stranded
more details

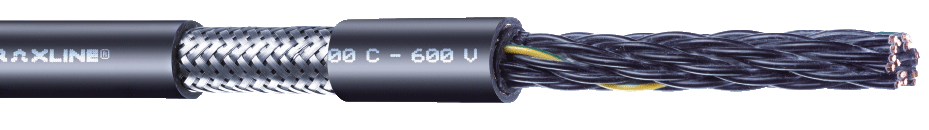

CONTROL 700 C 600 V

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Bundle stranded
more details

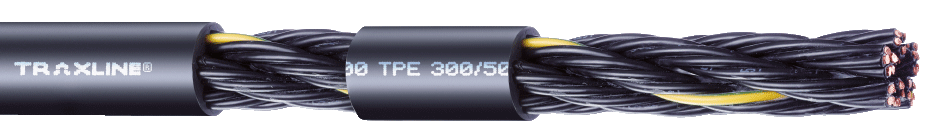

CONTROL 1000 TPE 300/500 V

Outer jacket material TPE
Shield Unshielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 10 Million
Travel length up to 1000 m
Stranding Bundle stranded
more details

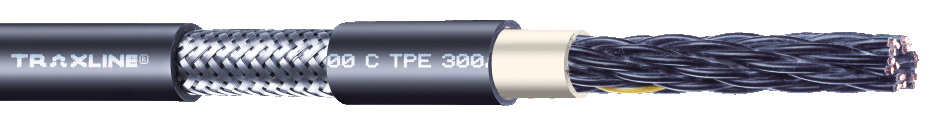

CONTROL 1000 C TPE 300/500 V

Outer jacket material TPE
Shield Shielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 10 Million
Travel length up to 1000 m
Stranding Bundle stranded
more details
Type Outer jacket material Shield Flexibility Demands Up to motion cycles Travel length up to Stranding
CONTROL 200 PVC Unshielded bending flexible flexing/demanding 2 Million 25 m Layer stranded
CONTROL 200 C PVC Shielded bending flexible flexing/ demanding 2 Million 25 m Conductor cores layered
CONTROL 400 600 V PVC Unshielded hi-flex demanding/ high demanding 4 Million 100 m Bundle stranded
CONTROL 400 C 600 V PVC Shielded hi-flex demanding/ high demanding 4 Million 100 m Bundle stranded
CONTROL 700 600 V PUR Unshielded hi-flex high demanding 7 Million 500 m Bundle stranded
CONTROL 700 C 600 V PUR Shielded hi-flex high demanding 7 Million 500 m Bundle stranded
CONTROL 1000 TPE 300/500 V TPE Unshielded hi-flex very high demanding 10 Million 1000 m Bundle stranded
CONTROL 1000 C TPE 300/500 V TPE Shielded hi-flex very high demanding 10 Million 1000 m Bundle stranded
