M series
Variable cable carrier with extensive accessories and stay variants
- Aluminum stays available in 1 mm width sections
- 4-fold bolted aluminum stays for extreme loads
- Aluminum stays with ball joint
- Aluminum hole stays
- Mounting frame stays
- Plastic stays available in 4, 8 or 16 mm width sections
- Aluminum cover available in 1 mm width sections
- Plastic cover available in 8 or 16 mm width sections
- Can be opened quickly on the inside and the outside for cable laying
- Fixable dividers
- Locking bolts
- Replaceable glide shoes
- Universal end connectors (UMB)
- C-rail for strain relief elements
- Strain relief combs
Features
- Encapsulated, dirt-resistant stroke system
- Durable sidebands through robust link plate design
- Easy assembly of side bands through bars with easy-to-assemble locking bolts

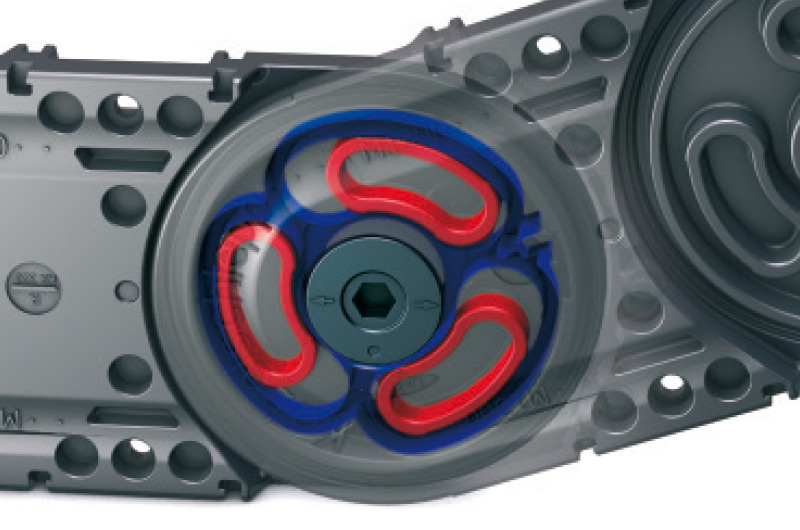

- Long service life due to minimized hinge wear owing to the “life extending 2 disc principle“
- Large selection of vertical and horizontal stay systems and dividing options for your cables
- Versions with aluminum stays in 1 mm width sections up to 800 mm inner width
- Versions with plastic stays available in 4, 8 or 16 mm width sections
Pictographs
Inner height
Outer height
Inner width
Outer width
Inner width (Bi) in x mm increments
Pitch
Bending radius
Long travel length
Travel length unsupported
Travel length gliding
High additional load
High travel acceleration
High travel velocity
Stay arrangement on every 2nd chain link
Stay arrangement on every chain link
Cannot be opened
Opens outward
Opens inward
Opens inward/outward
Covered cable carrier
Sliding dividers
Fixable dividers
Fixable dividers in x mm grid
Height separation possible
Height separation in 1 mm increments
Hole stay available
Guide channel required
Strain relief
Clean room suitable
Quiet running/low noise
Sold by the meter
Low weight
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Resistant to hot chips
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)
Minimized hinge wear owing to the “life extending 2 disc principle“
Sturdy link plate design, encapsulated stroke system
Easy to assemble through locking bolts
Replaceable glide shoes for long service life for gliding applications
Types
M0320
Inner height
[hi]:
19
mm
Inner widths
[Bi]:
25 – 280
mm
Pitch [t]:
32
mm
Bending [KR]:
37 – 200
mm
M0475
Inner height
[hi]:
28
mm
Inner widths
[Bi]:
24 – 280
mm
Pitch [t]:
47.5
mm
Bending [KR]:
55 – 300
mm
M0650
Inner heights
[hi]:
38 – 42
mm
Inner widths
[Bi]:
50 – 500
mm
Pitch [t]:
65
mm
Bending [KR]:
75 – 350
mm
M0950
Inner heights
[hi]:
54 – 58
mm
Inner widths
[Bi]:
45 – 600
mm
Pitch [t]:
95
mm
Bending [KR]:
140 – 380
mm
M1250
Inner heights
[hi]:
69 – 72
mm
Inner widths
[Bi]:
71 – 800
mm
Pitch [t]:
125
mm
Bending [KR]:
180 – 500
mm
M1300
Inner height
[hi]:
87
mm
Inner widths
[Bi]:
100 – 800
mm
Pitch [t]:
130
mm
Bending [KR]:
150 – 500
mm
