Way wiper systems
For protecting guideways on machine tools.
Way wiper types BA and BAS

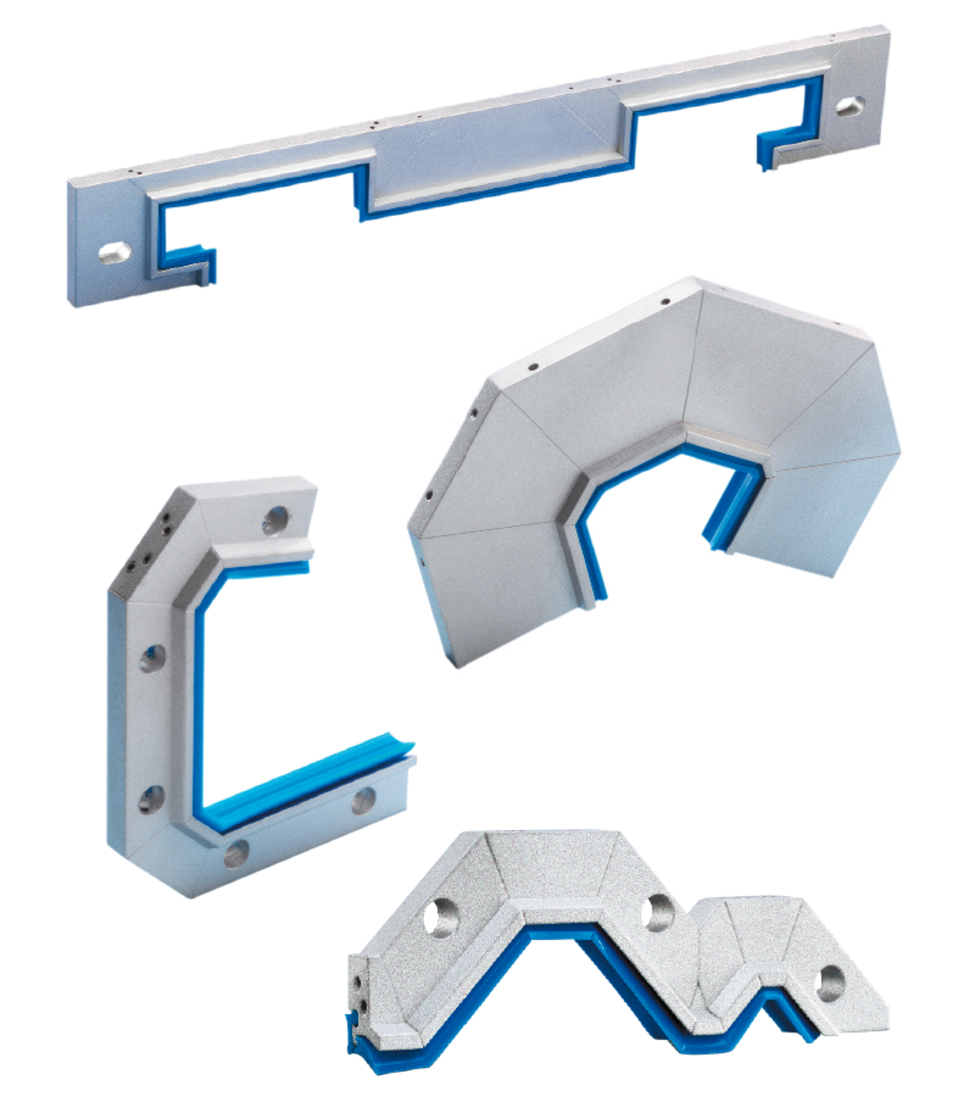

Wipers of this type have a replaceable lip and guarantee high form stability and mechanical loading capacity. They are manufactured in custom forms according to your specifications and are also available as bar material.
Properties
- Temperature range from -40 °C to 100 °C
- Material for support element: Aluminum
- Material for scraper lip: polyurethane
- Resistant to alkaline-based substances, amino acids, petrol and hydrolysis, as well as oxygen, ozone and UV rays
- Mostly resistant against oil, grease, bases and water
- Pretension approx. 2 mm
- Replaceable scraper lip
- Standard lengths rod goods: 1000 mm
Reduce costs
With types BA and BAS the wiper lip is replaceable. In case of wear, only the lip has to be exchanged; the support profile can remain in use.

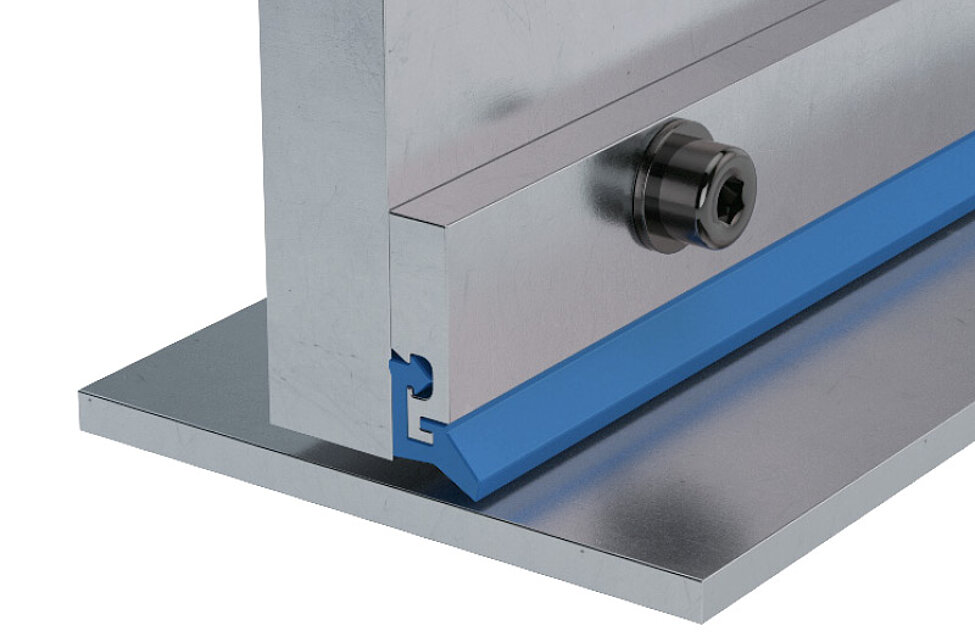

Type BA
Path way wipers from this type series are predominantly used for tight installation conditions or those areas where the way wiper is additionally protected by a telescopic cover, a bellows or a link apron or where no shavings or chips occur.

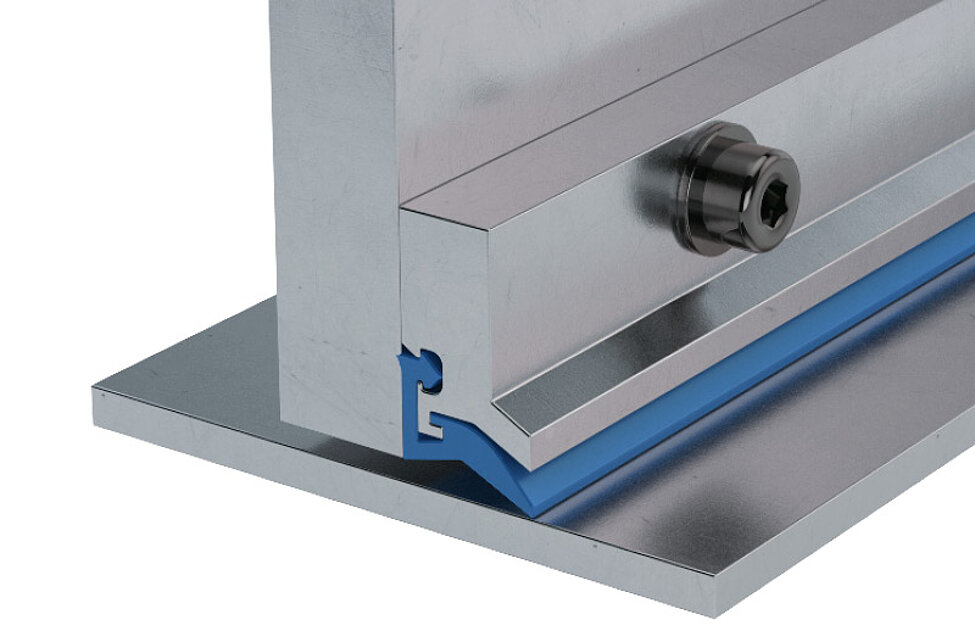

Type BAS
The lightweight metal support is manufactured with a protector for the way wiper lip with this type series. These are predominantly utilized for direct chip waste (no hot chips).

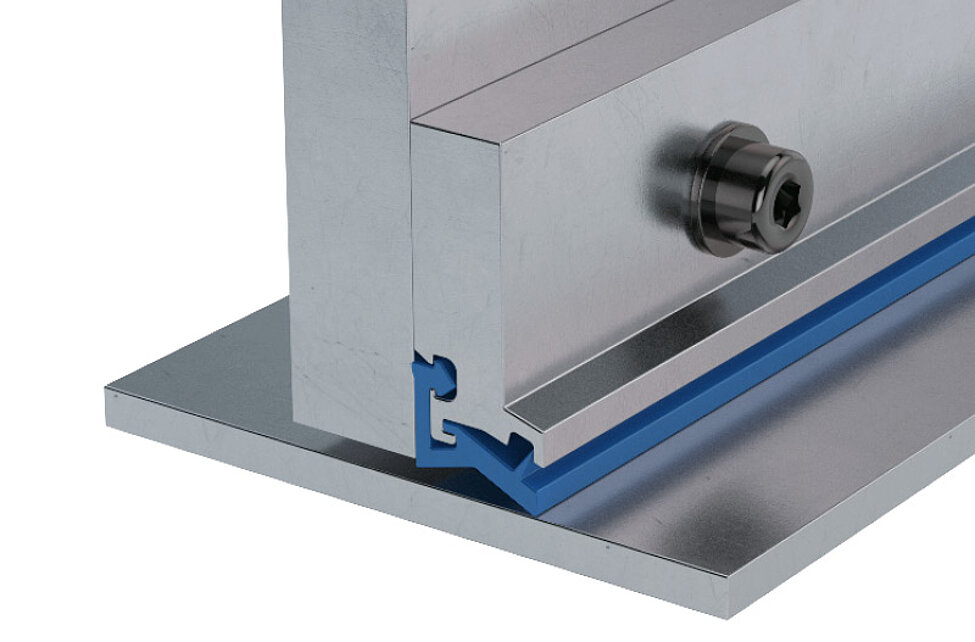

Type BASN
The way wiper lip in this type series is equipped with an additional support lug, which increases the contact pressure of the lip.
Principal characteristics
- Interchangeability with all products on the market.
- Perfect adaptability.
- Countersunk screws or bolts are not required.
- Simple exchangability of the way wiping strip.
- Perfect adhesion of the back of the way wiper.
- Special customer-specific harnessing.

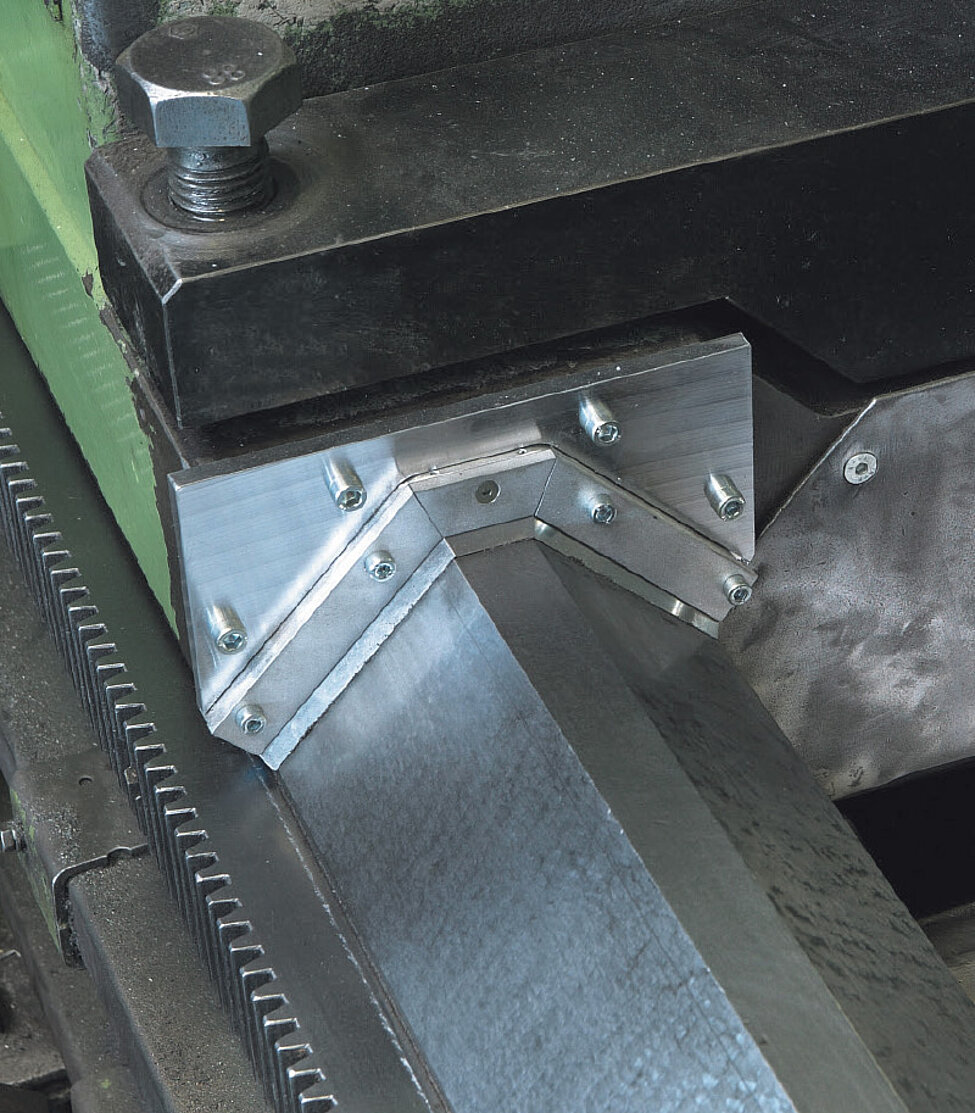

Pre-wiper for protection of the guideway
To protect the wiper lip from hot chips, and to remove coarse and stubborn dirt from the guideway, the way wiper must be fitted with a pre-wiper made from stainless spring steel or brass.
The pre-wiper and its corresponding light metal clamping strip are affixed to the machine component with the fastening screws of the wiper.
For straight way wipers with a corresponding hole pattern (distance between holes ≤ 80 mm), the clamping strip is not required.
Types BA/BAS/BASN
| Type | A [mm] | B [mm] | C [mm] | D [mm] | Length of the profile [mm] |
|---|---|---|---|---|---|
| BA 18 | 7.5 | 4.5 | 17.5 | 3.5 | 1000 |
| BA 25 | 7.5 | 4.5 | 23.5 | 3.5 | 1000 |
| BAS 18 | 10 | 7 | 17.5 | 3.5 | 1000 |
| BAS 25 | 10 | 7 | 23.5 | 3.5 | 1000 |
| BAS 40 | 10 | 7 | 39.5 | 3.5 | 1000 |
| BASN 18 | 10 | 7 | 17.5 | 3.5 | 1000 |
| BASN 25 | 10 | 7 | 23.5 | 3.5 | 1000 |
| BASN 40 | 10 | 7 | 39.5 | 3.5 | 1000 |
Types BA/BAS/BASN
| Type | A [mm] | B [mm] | C [mm] | D [mm] | Length of the profile [mm] |
|---|---|---|---|---|---|
| BA 18 | 7.5 | 4.5 | 17.5 | 3.5 | 1000 |
| BA 25 | 7.5 | 4.5 | 23.5 | 3.5 | 1000 |
| BAS 18 | 10 | 7 | 17.5 | 3.5 | 1000 |
| BAS 25 | 10 | 7 | 23.5 | 3.5 | 1000 |
| BAS 40 | 10 | 7 | 39.5 | 3.5 | 1000 |
| BASN 18 | 10 | 7 | 17.5 | 3.5 | 1000 |
| BASN 25 | 10 | 7 | 23.5 | 3.5 | 1000 |
| BASN 40 | 10 | 7 | 39.5 | 3.5 | 1000 |
Way wiper BA 65
Way wiper BA 65 – bar material
Wipers of this type are compact and are notable for high shape accuracy and dimensional accuracy. It is manufactured in various forms, thus guaranteeing high repeatability.
Properties
- Temperature resistance – 40 °C to + 100 °C, briefly up to 140 °C
- Support material: Steel
- Wiper lip material: Abrasion-resistant synthetic rubber (NBR)
- Resistant to standard oils, greases, acids and bases
- Resistant to microorganisms
Type BA 65
| Type | A [mm] | B** [mm] | C [mm] | D [mm] | Pretension* [mm] | Length of the profile [mm] |
|---|---|---|---|---|---|---|
| BA 65-14 | 6.5 | 14 | 8 | 1 | 1 | 500 |
| BA 65-18 | 6.5 | 18 | 12 | 1 | 1 | 500 |
| BA 65-22 | 6.5 | 22 | 15 | 0 | 2 | 500 |
| BA 65-25 | 6.5 | 25 | 18 | 1.5 | 1 | 500 |
* Recommended pretension
** Dimensions without pretension

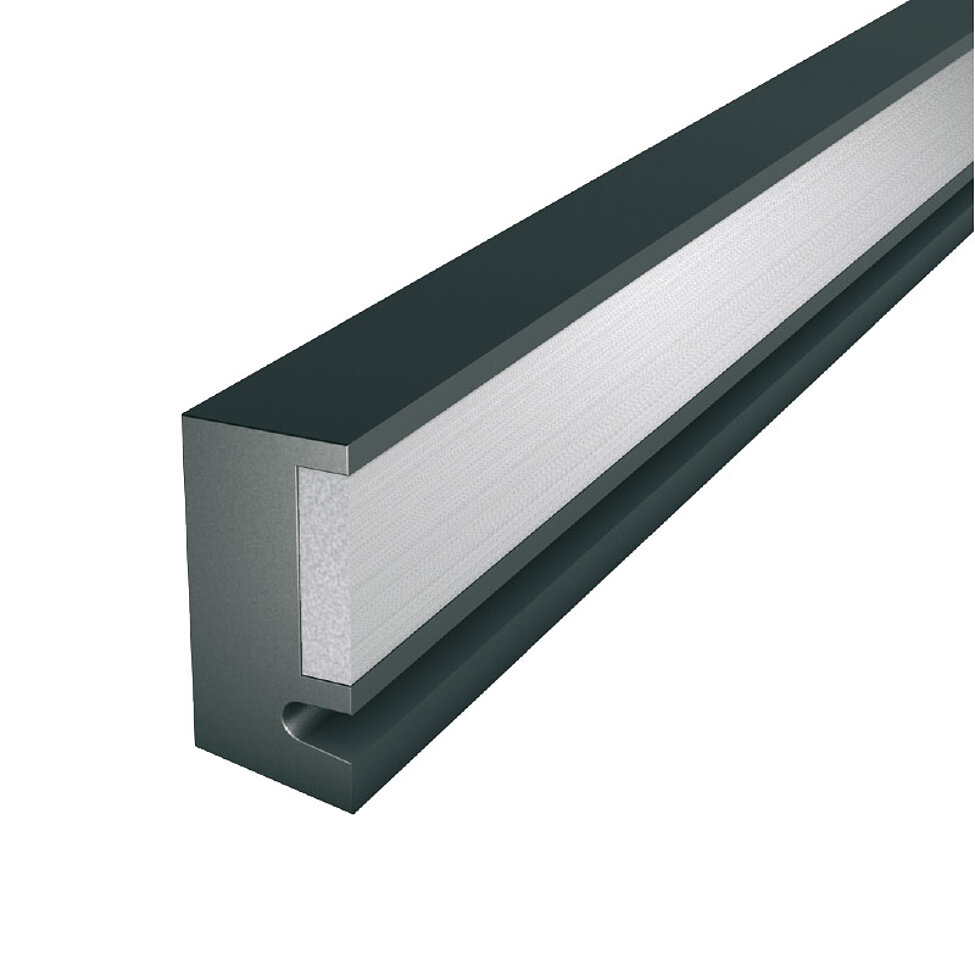

Type BA 65-14

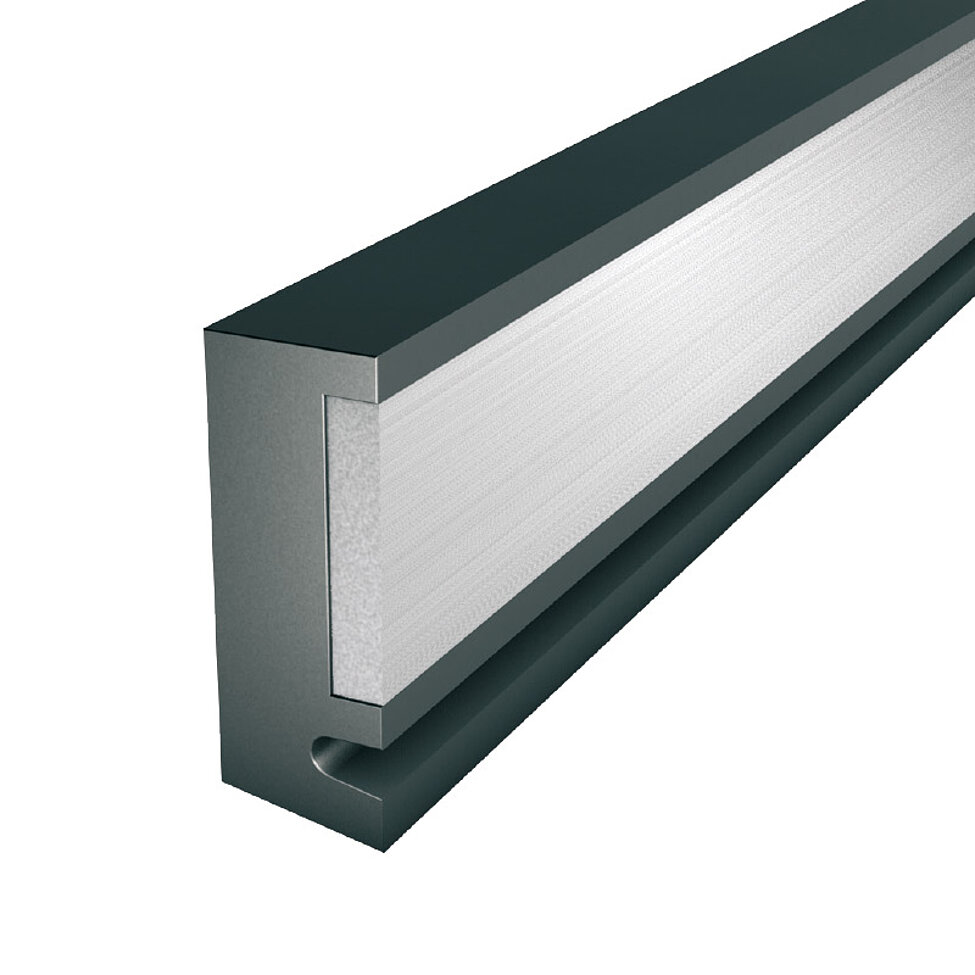

Type BA 65-18

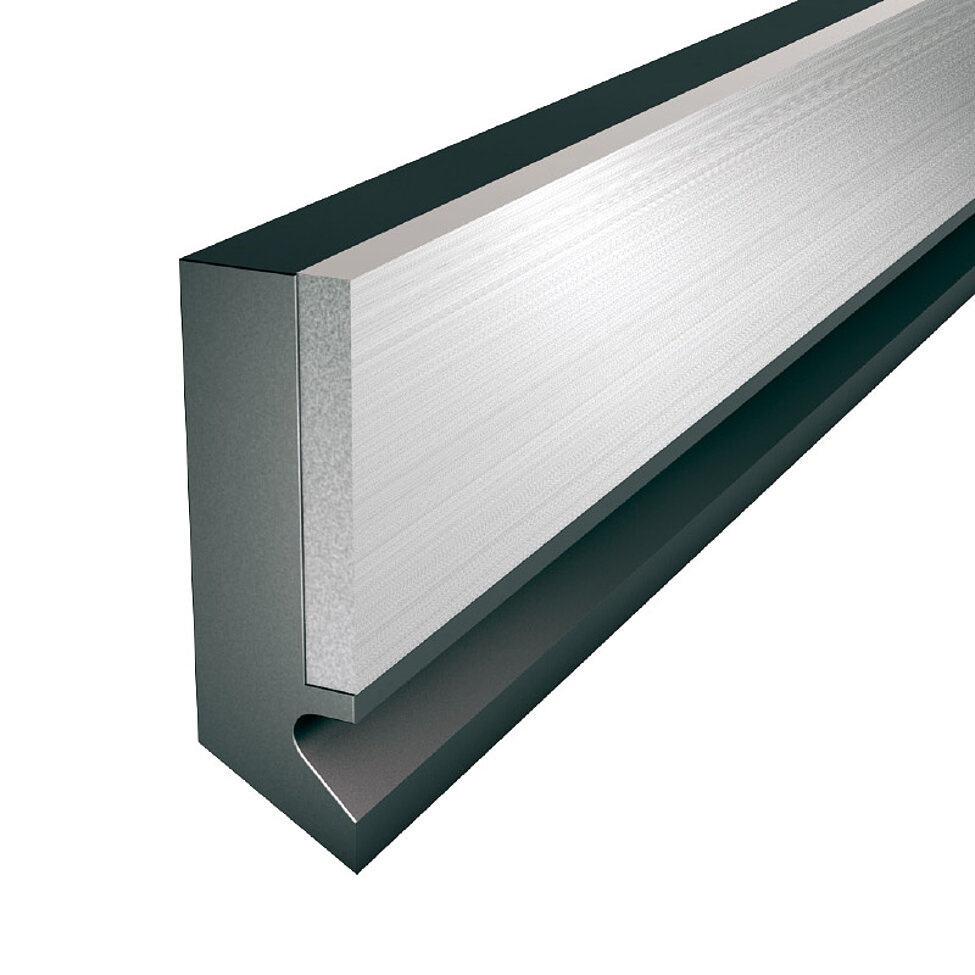

Type BA 65-22

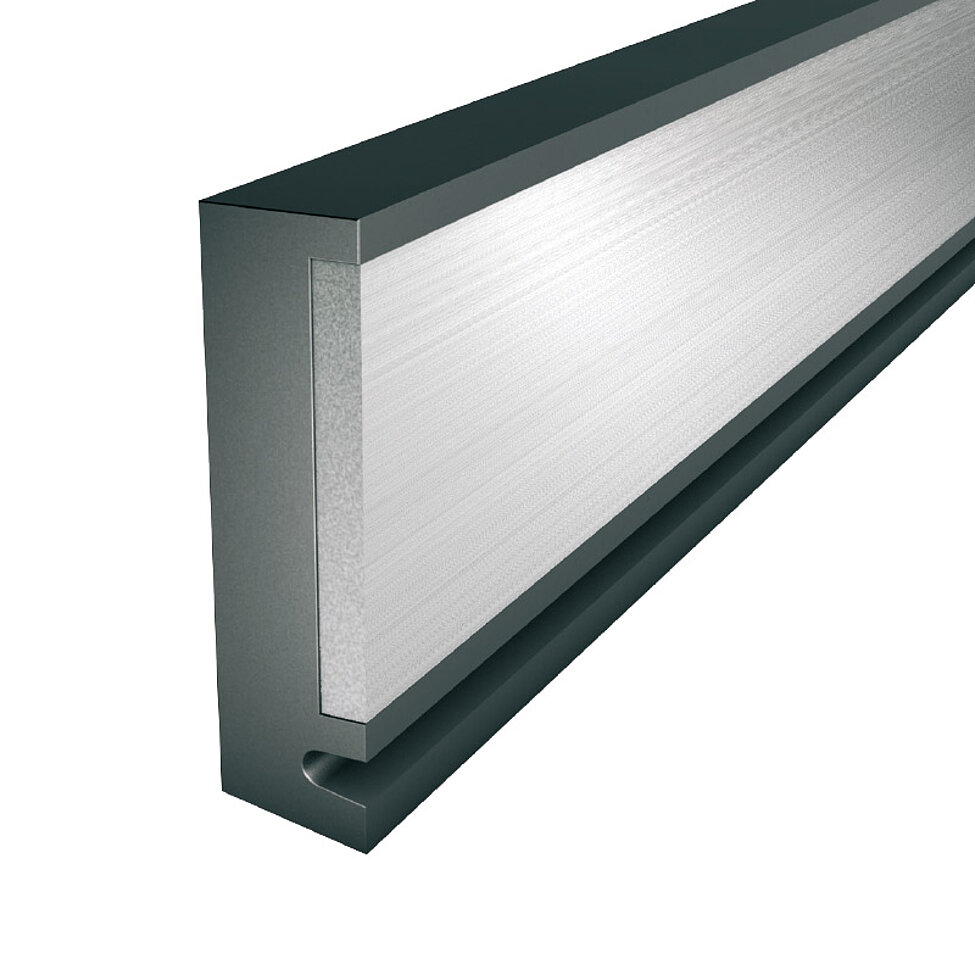

Type BA 65-25
Way wiper BA 115
Way wiper BA 115 – bar material
Highly flexible wiper with a max. pretension of 4 mm. It is manufactured in various forms, guaranteeing high repeatability.
Properties
- Temperature resistance – 40 °C to + 100 °C, briefly up to 140 °C
- Support material: Steel
- Wiper lip material: Abrasion-resistant synthetic rubber (NBR)
- Resistant to standard oils, greases, acids and bases
- Resistant to microorganisms
Dimensions Type BA 115
| Type | A [mm] | B [mm] | C [mm] | D [mm] | Pretension* [mm] | Length of the profile [mm] |
|---|---|---|---|---|---|---|
| BA 115-30 | 11.5 | 30 | 15 | 15 | 4 | 500 |
* Recommended pretension

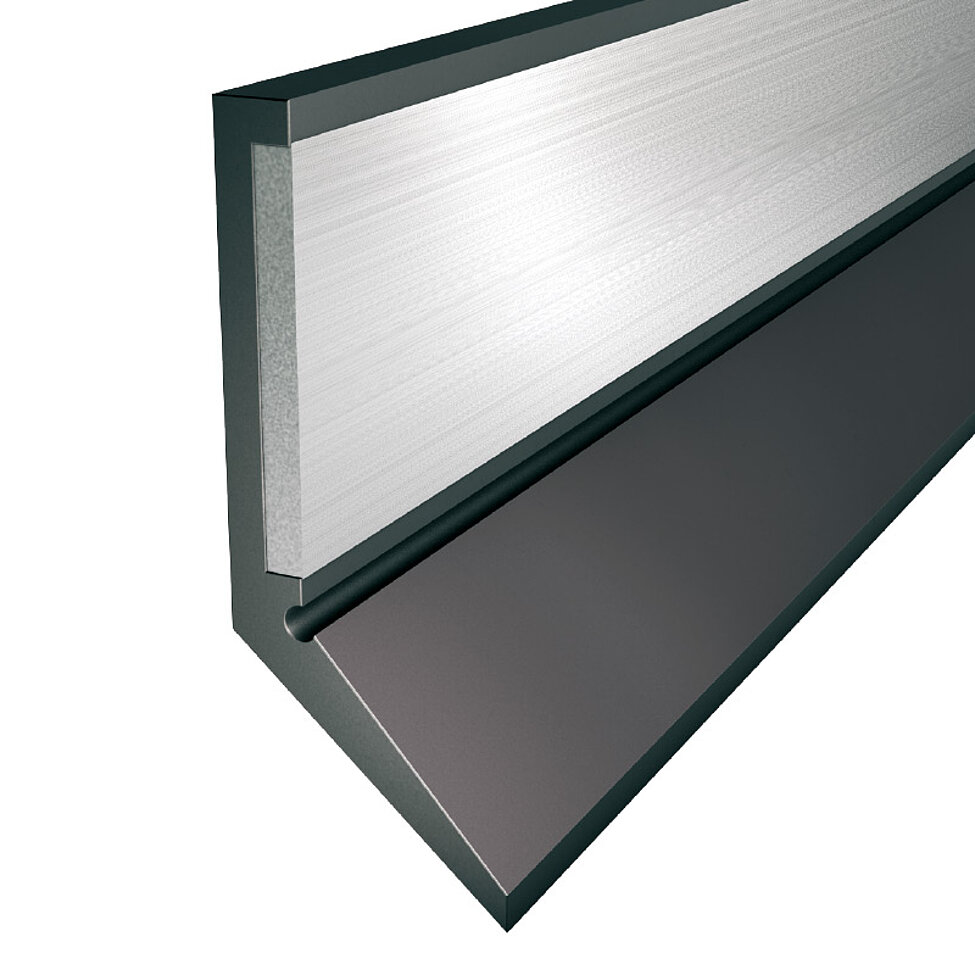

Type BA 115-30

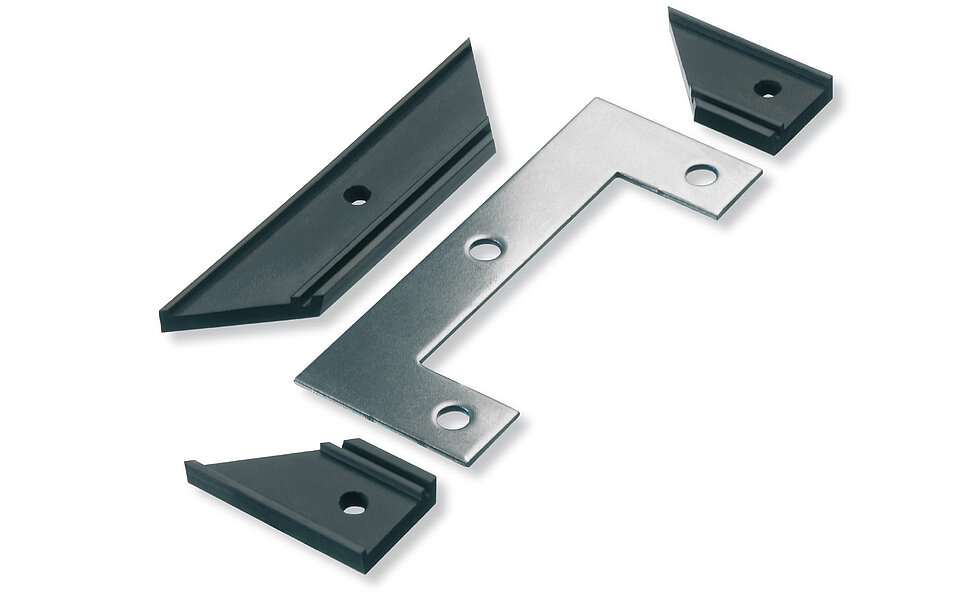

Way wiper BA 65 VARIO
The most economical alternative to cast wipers – even for small quantities. On request we also manufacture them according to your specifications – custom tailored for your application. BA 65 VARIO way wipers are optionally available as complete wipers, or as individual wiper lips in bar form for your own harnessing.
So-called “cast wipers” are wipers consisting of a piece of neoprene rubber vulcanised onto a steel support profile. They are produced in specially-manufactured injection moulds. Larger quantities are essential, as the tool costs must be offset by the number of parts produced.
For the wiper system BA 65 Vario no special tools are required: A pre-finished profile of synthetic rubber is customized tailored.
The support profile – usually made from metal – can be produced on a laser or nibbling machine.
Thus, smaller quantities can be produced in this way at a reasonable cost.
Properties
- Temperature resistance – 40 °C to + 100 °C, briefly up to 140 °C
- Support material: Steel, stainless steel
- Wiper lip material: Abrasion-resistant synthetic rubber (NBR)
- Resistant to standard oils, greases, acids and bases
- Pretension of the wiper lip: max. 1 mm
- Resistant to microorganisms
Type BA 65 VARIO
| Type | A [mm] | B** [mm] | C [mm] | D [mm] | Pretension* [mm] | Length of the profile [mm] |
|---|---|---|---|---|---|---|
| BA 65-14 VARIO | 6.5 | 14 | 8 | 1 | 1 | 500 |
| BA 65-18 VARIO | 6.5 | 18 | 12 | 1 | 1 | 500 |
| BA 65-25 VARIO | 6.5 | 25 | 18 | 1.5 | 1 | 500 |
* Recommended pretension
** Dimensions without pretension

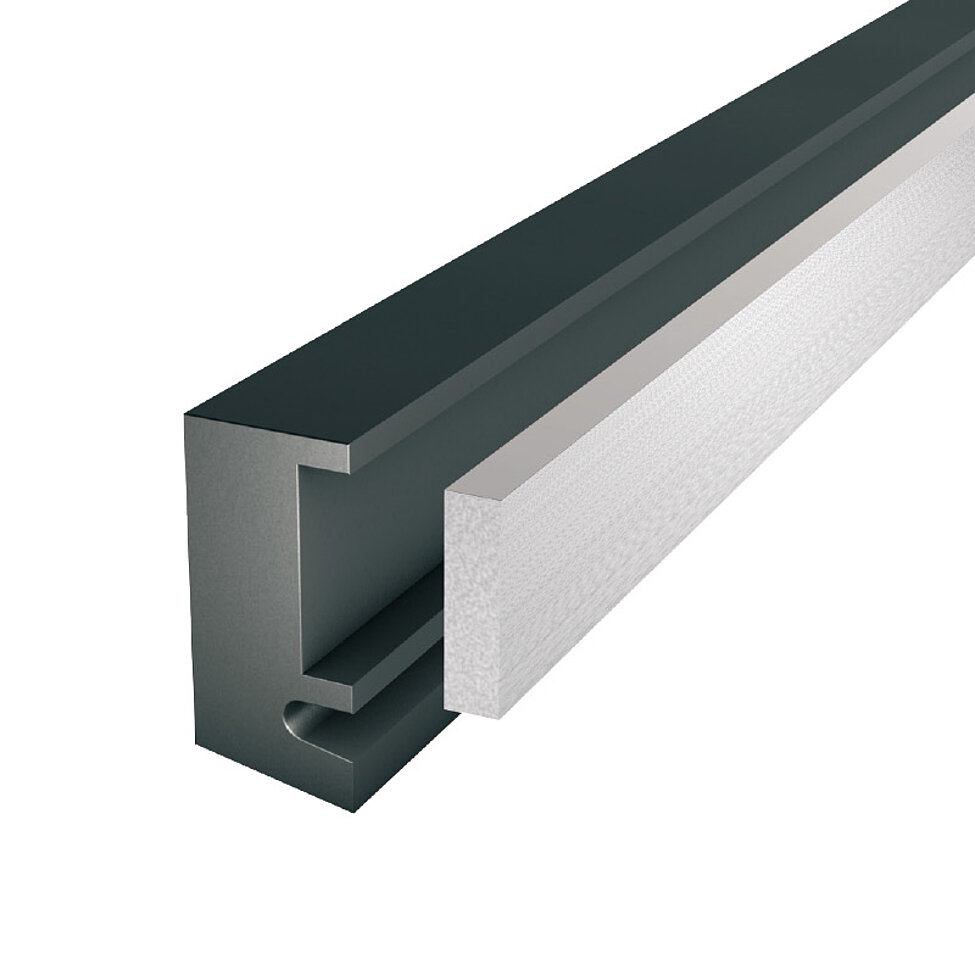

Type BA 65-14 VARIO

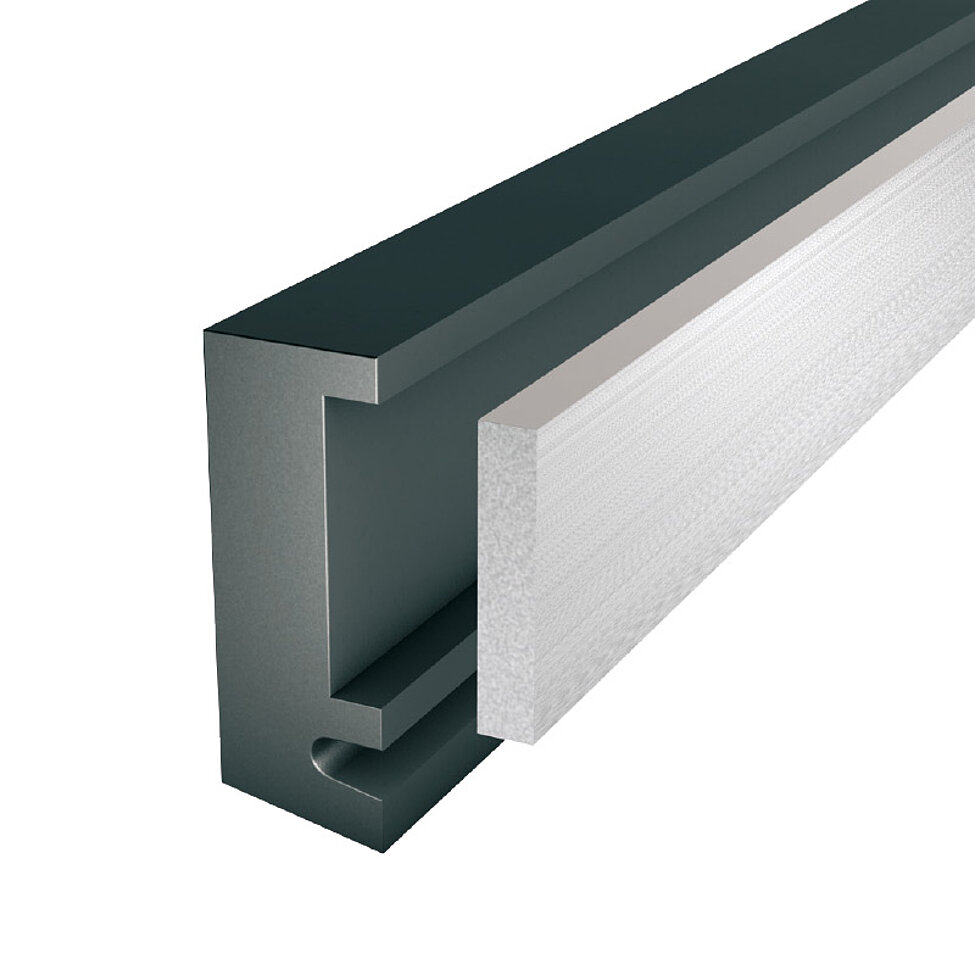

Type BA 65-18 VARIO

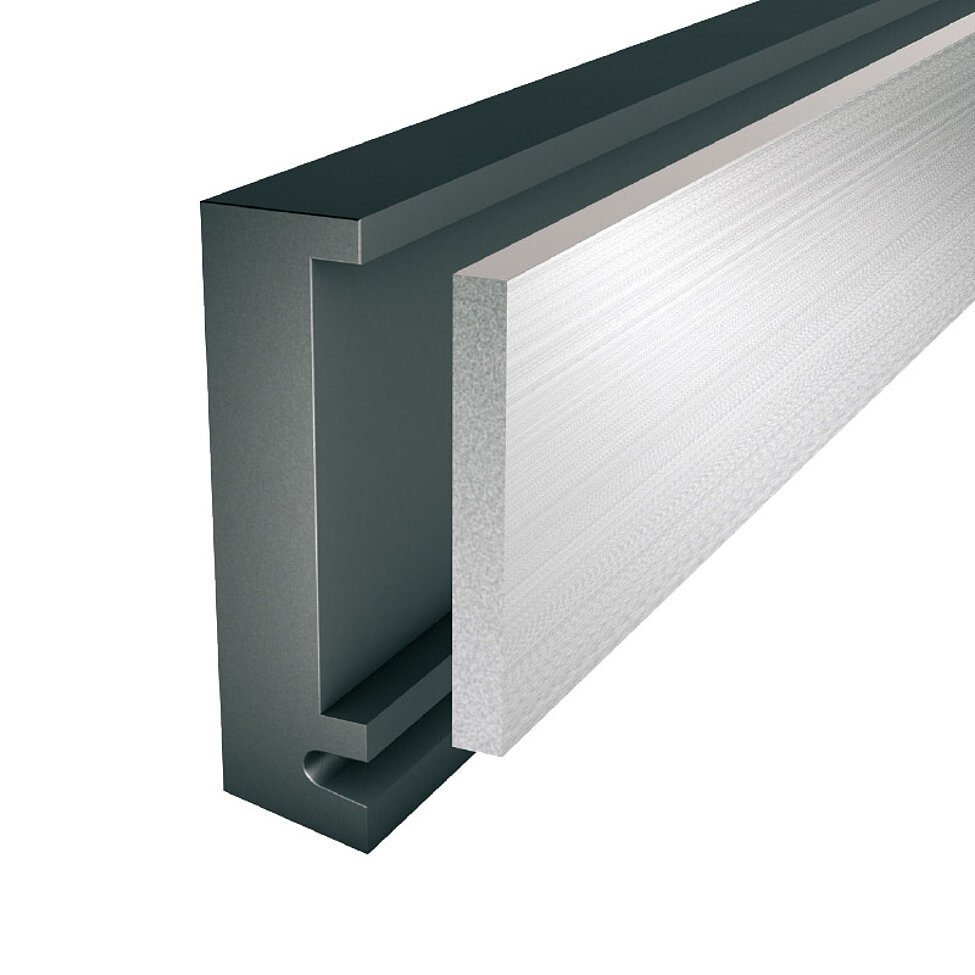

Type BA 65-25 VARIO
Delivery options

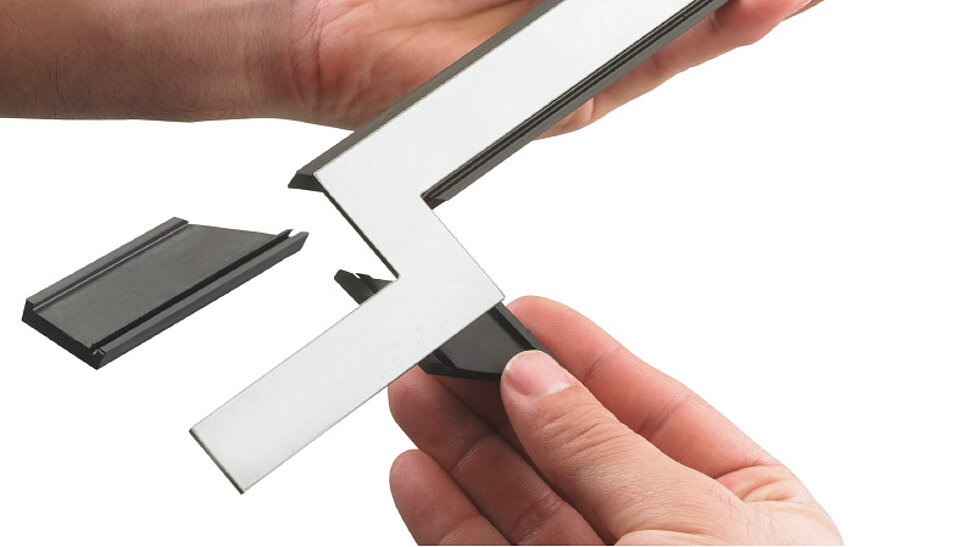

1. Construction set as individual parts
The support material and wiper lips are produced according to your specifications and delivered as an assembly kit.

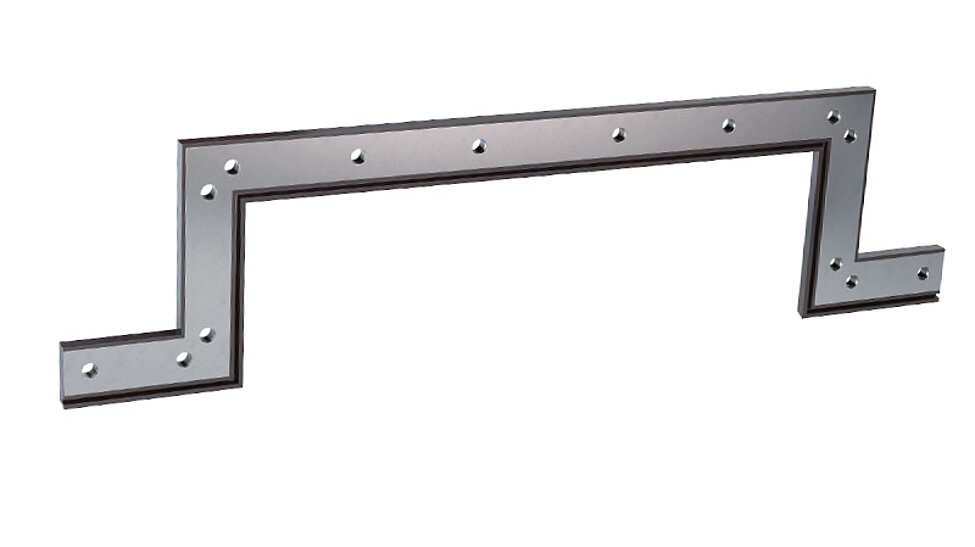

2. Ready-to-install wiper system
All parts are supplied affixed to the support profile.

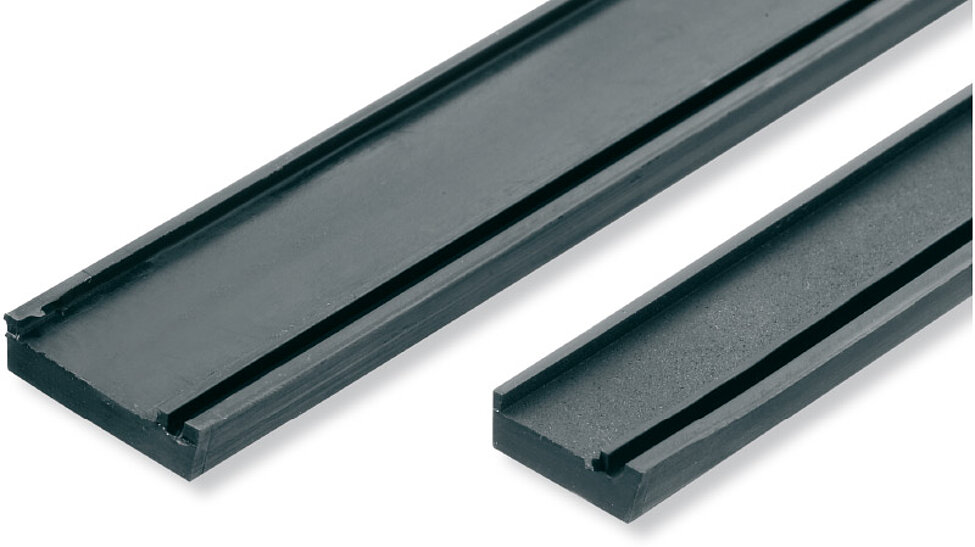

3. Separate wiper lip
If your production department can produce the required support plates itself, you can order the wiper lip from us separately. The delivery length is 500 mm.
Wipers on telescopic covers
Wipers on telescopic covers keep the cover boxes clean and prevent the penetration of dirt and chips.
Welded-on and riveted-on wipers
With these types the support profile is spot-welded or riveted to the cover box.
Type MA 8 / MA 12
These wipers consist of an NBR profile vulcanized onto a steel strip.
Necessary calculated distance of the cover plates 2.5 to 3.5 mm.
Type MA 8S / MA 12S
Wipers MA 8S and MA 12S are covered with a protective strip for protection against hot chips.
Necessary calculated distance of the cover plates 3.5 to 4 mm
Type MA 12.1 / MA 18
A specially rolled steel plate profile is spot-welded to the boxes and a PUR scraper lip is pressed in.
Required calculated spacing of the cover sheet metal 3.5 to 5.5 mm.
The support profile of the MA 18 is made of aluminum and can be screwed, bolted or riveted on. It is also possible to attach an additional damping cord.
Type VA 12 / VA 17G
The interchangeable way wiper with PU lip
This generation of way wipers can be interchanged directly on the machine without removing the telescopic cover.
The way wiper lips have good sliding properties and can also be used where little lubricant is produced e.g. On tooling machines.
Rotary locks fix the way wiper on the cover sheet. The way wiper system is locked or unlocked by rotating the rotary locks by 90°. This makes it simple to replace and renew the system.
Necessary calculated distance for the covering sheet: 4 mm (VA 12 G) and/or 6 mm (VA 17 G).
Ready to order way wipers
Type BA/BAS/BASN
| Type | Length of the profile [mm] | Article number | Number of items in the package |
|---|---|---|---|
| BA 18 complete | 1000 | CPWB179100 | 10 |
| BA 18/25 lip | 1000 | CPWB107700 | 20 |
| BA 25 complete | 1000 | CPWB179140 | 10 |
| BAS 18 complete | 1000 | CPWB179120 | 10 |
| BAS 18 pre-wiper steel | 500 | CPWB178515 | 10 |
| BAS 18 pre-wiper Ms | 500 | CPWB178510 | 10 |
| BAS 18 clamping strip | 1000 | CPWB179191 | 5 |
| BAS 18 lip | 1000 | CPWB107710 | 20 |
| BAS 25 complete | 1000 | CPWB179160 | 10 |
| BAS 25 pre-wiper steel | 500 | CPWB178531 | 10 |
| BAS 25 pre-wiper Ms | 500 | CPWB178511 | 10 |
| BAS 25 clamping strip | 1000 | CPWB179194 | 5 |
| BAS 25 lip | 1000 | CPWB107710 | 20 |
| BASN 18 complete | 1000 | CPWB179136 | 5 |
| BASN 25 complete | 1000 | CPWB179176 | 5 |
| BASN 40 complete | 1000 | CPWB179185 | 5 |
| BASN 18/25/40 lip | 1000 | CPWB107714 | 20 |
Type BA 65
| Type | Length of the profile [mm] | Article number | Number of items in the package |
|---|---|---|---|
| BA 65-14 | 500 | CPWB179004 | 10 |
| BA 65-18 | 500 | CPWB179005 | 10 |
| BA 65-22 | 500 | CPWB179006 | 10 |
| BA 65-25 | 500 | CPWB179007 | 10 |
| BA 115-30 | 500 | CPWB179008 | 10 |
| BA 65-14 lip | 500 | CPWB179000 | 10 |
| BA 65-18 lip | 500 | CPWB179001 | 10 |
| BA 65-22 lip | 500 | CPWB179002 | 10 |
| BA 65-25 lip | 500 | CPWB179003 | 10 |
Type MA/VA
| Type | Length of the profile [mm] | Article number | Number of items in the package |
|---|---|---|---|
| MA 8 complete | 500 | CPWB179201 | 5 |
| MA 8 protective strip | 500 | CPWB178090 | 20 |
| MA 12 complete | 500 | CPWB179211 | 5 |
| MA 12 protective strip | 500 | CPWB178100 | 10 |
| MA 12.1 lip | 1000 | CPWB179212 | 20 |
| MA 12.1 supporting profile | 1500 | CPWB103921 | 10 |
| MA 18 lip | 1000 | CPWB179212 | 20 |
| MA 18 supporting profile | 1500 | CPWB103915 | 10 |
| VA 17 lip | 1000 | CPWB177932 | 10 |
| VA 17 supporting profile | 1500 | CPWB177931 | 10 |
| VA 12 lip | 1000 | CPWB177935 | 20 |
| VA 12 supporting profile | 1500 | CPWB177934 | 10 |
