Roll-up covers
Protection in a minimum of space
KABELSCHLEPP® roll-up covers serve to protect contact surfaces and guideways on all kinds of machine.
Properties
- For high travel speeds
- Minimal space required
- Customized production
- Simple installation
- Long lifetime
- Cost-effective

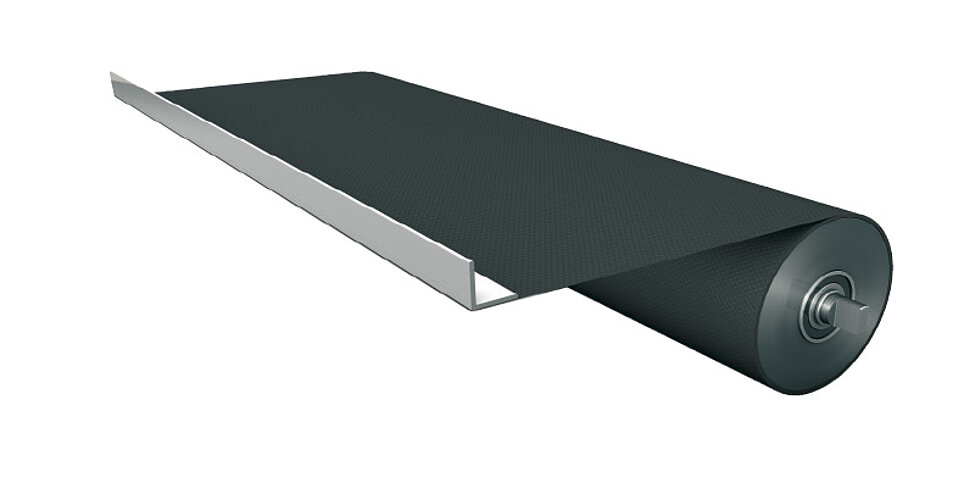

Roll-up cover without housing
Roll-up covers without a housing are suitable for areas with limited space, and facilitate optimal integration into the machine enclosure.
- Highly tear-resistant due to plastic-coated special fabric in different material thicknesses and designs
- Protection against chipping waste, oils and cooling emulsions
- Little space required
- Fixing via fixing angle bracket or integration within the machine

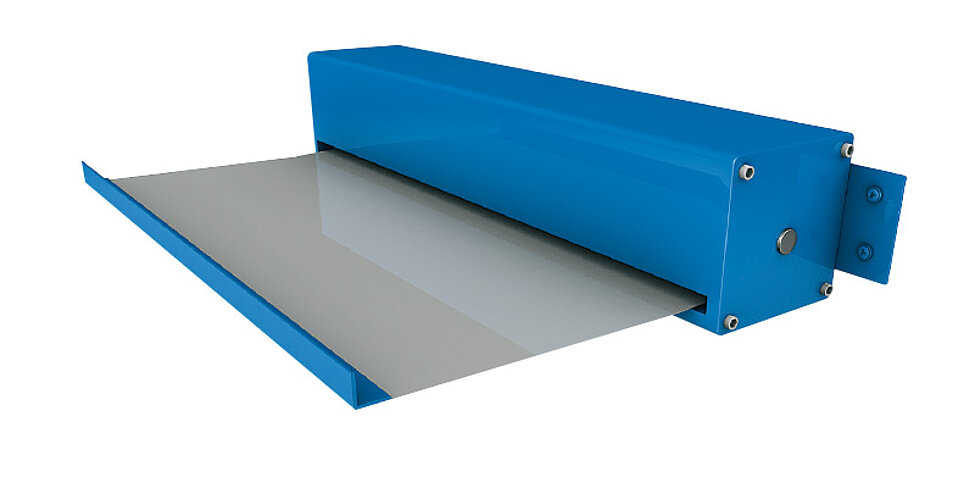

Roll-up cover with housing
Roll-up covers with a housing protect the roll-up cover and enable simple assembly, also retrofitting. The complete system provides selectable fixing possibilities and a defined belt outlet position.
- Steel belt made of rust-resistant and acid-resistant spring steel strip in material thicknesses from 0.2 to 0.4 mm
- Plastic belt made of special fabric in different material thicknesses and designs
- Steel roller belts only available in combination with housing
- Protection against chipping waste, oils and cooling emulsions
- For high travel speeds and loads.
