Apron covers

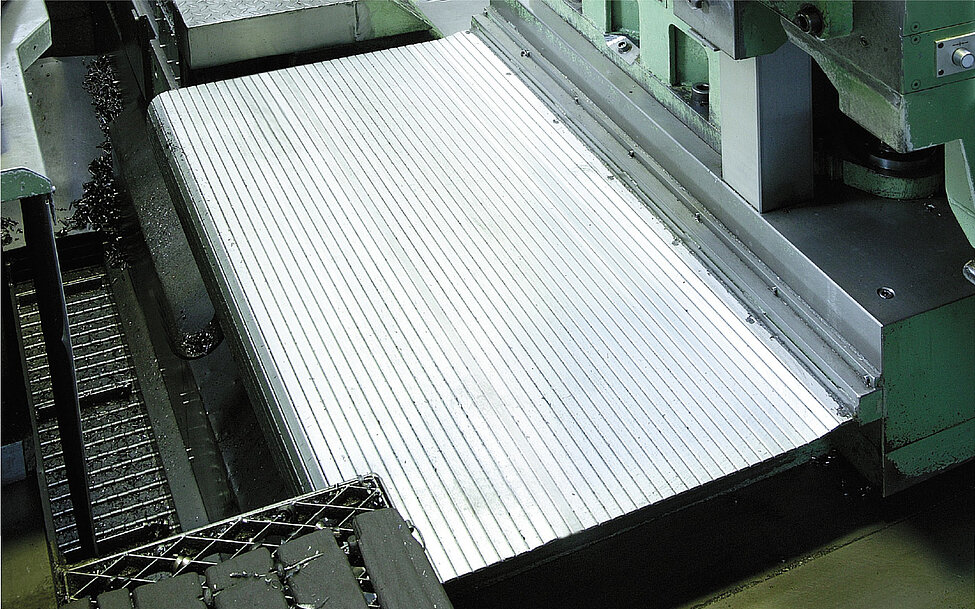

Apron covers can be used wherever space constrictions do not allow the use of telescopic covers. They are positioned directly on the guideway and can be loosely hung on, screwed, bolted, or also wound onto the end of the path without any particular guiding.

Properties

Small space requirement
Protection against chips and lubricant
Splash- and hose-proof
Low weight
Long lifetime
Heat-resistant to 100 °C duration ambient temperature
Customized end attachment
All apron covers can be supplied with roll-up device
Lateral guides are not necessary
Short delivery time
Attractive price/performance ratio

1 Design 1

Light, highly flexible solid profile apron cover, flat design

Solid aluminum profile 19 x 3 mm with PU connecting elements

Bending radius possible in both directions

Special widths on request!

B_min = 100 mm

B_max = 950 mm

R_min = 25 mm

Weight = 5.6 kg/m²

2 Design 2N

Light and stable hollow profile apron cover, also for large widths

Hollow aluminum profile 20 x 5.5 mm with PU connecting elements

Bending radius possible in both directions!

Special widths on request!

B_min = 100 mm

B_max = 2950 mm

R_min = 30 mm

Weight = 10 kg/m²

3 Design 2NG

Light and stable hollow profile apron cover, also for large widths.

Hollow aluminum profile 20 x 5,5 mm with PU connecting elements and bending radius in one direction.

Design with a particularly smooth and wipeable surface.

B_min = 100 mm

B_max = 2950 mm

R_min = 30 mm

Weight = 10 kg/m²

4 Design 3

Flexible solid metal apron cover, with joints and a single-sided bending radius

Hollow aluminum profile 25 x 7.5 mm with integrated joint and one-sided bending radius

B_min = 100 mm

B_max = 6000 mm

R_min = 40 mm

Weight = 13.2 kg/m²

Outside of the profile
Right connector
Bending radius
Left connector

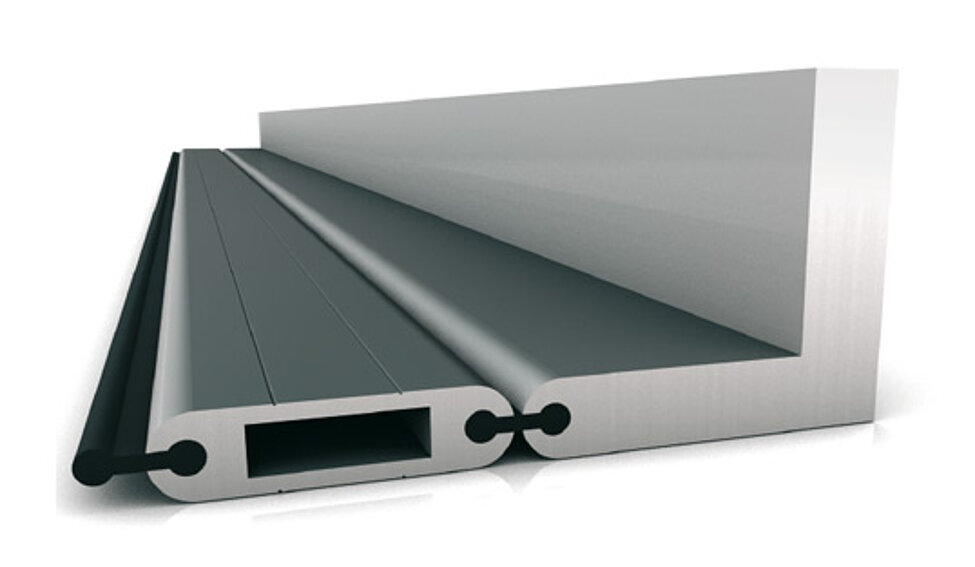

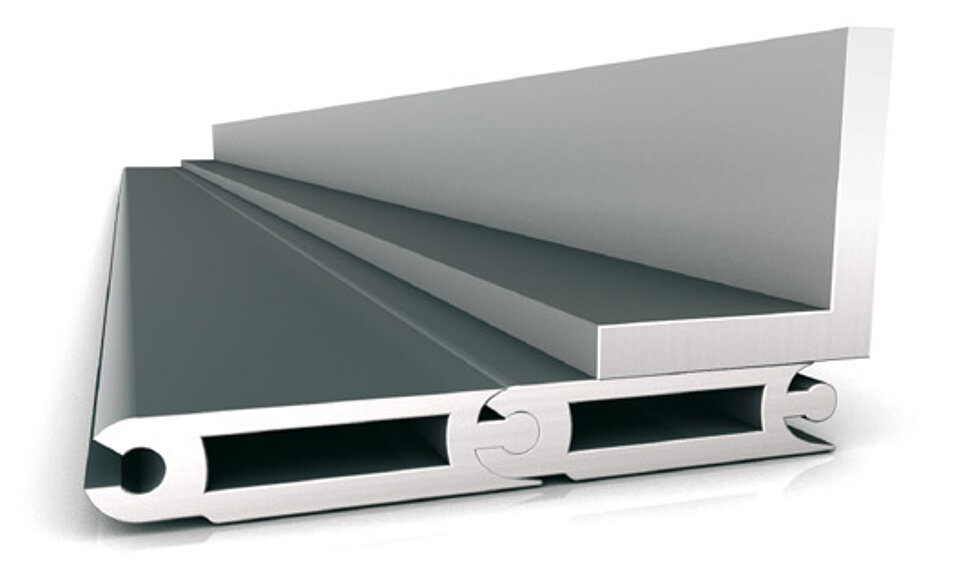

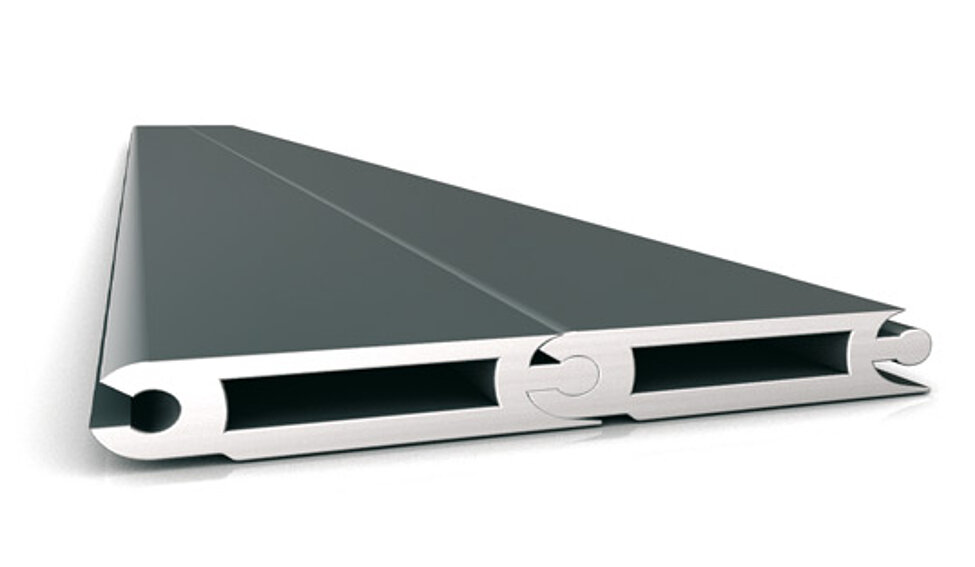

Profile with connecting elements

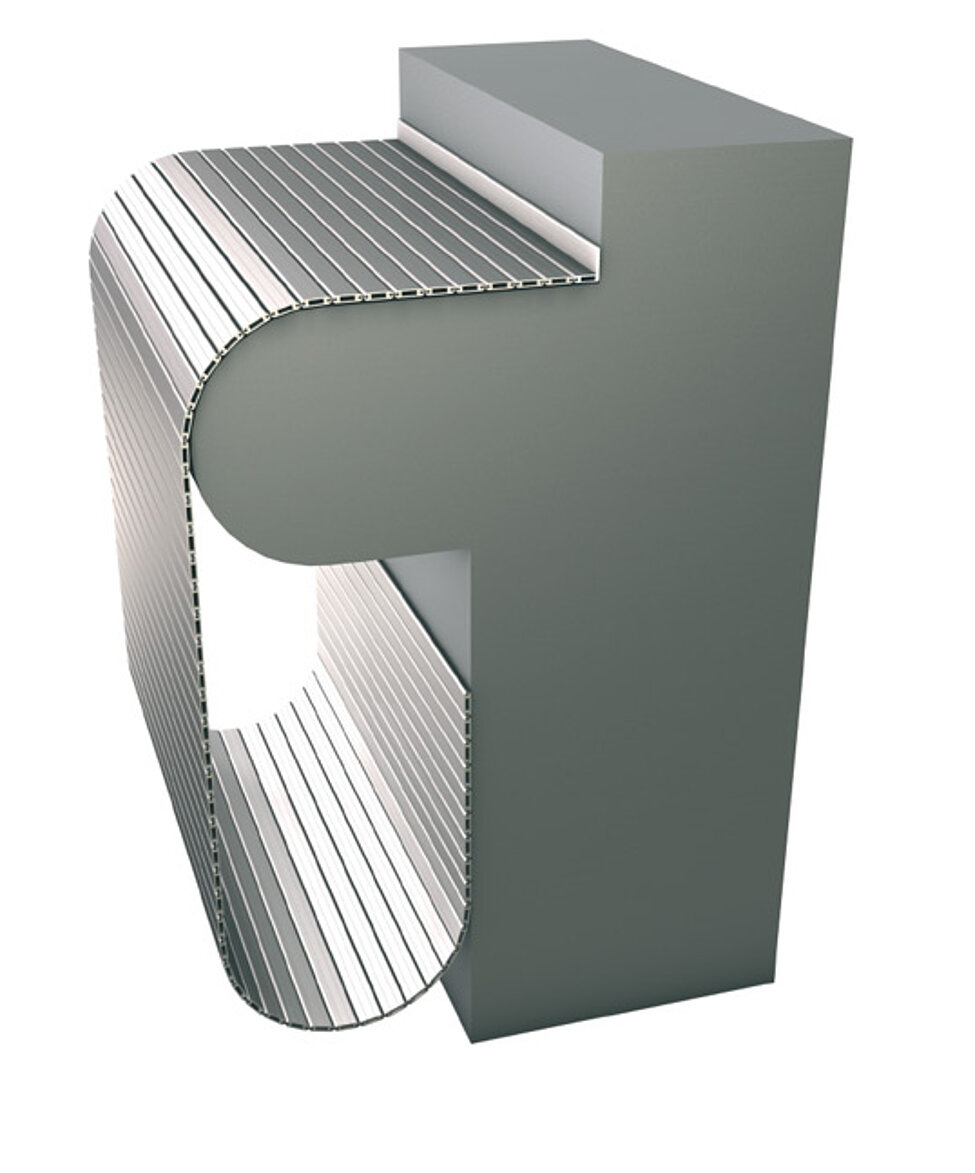

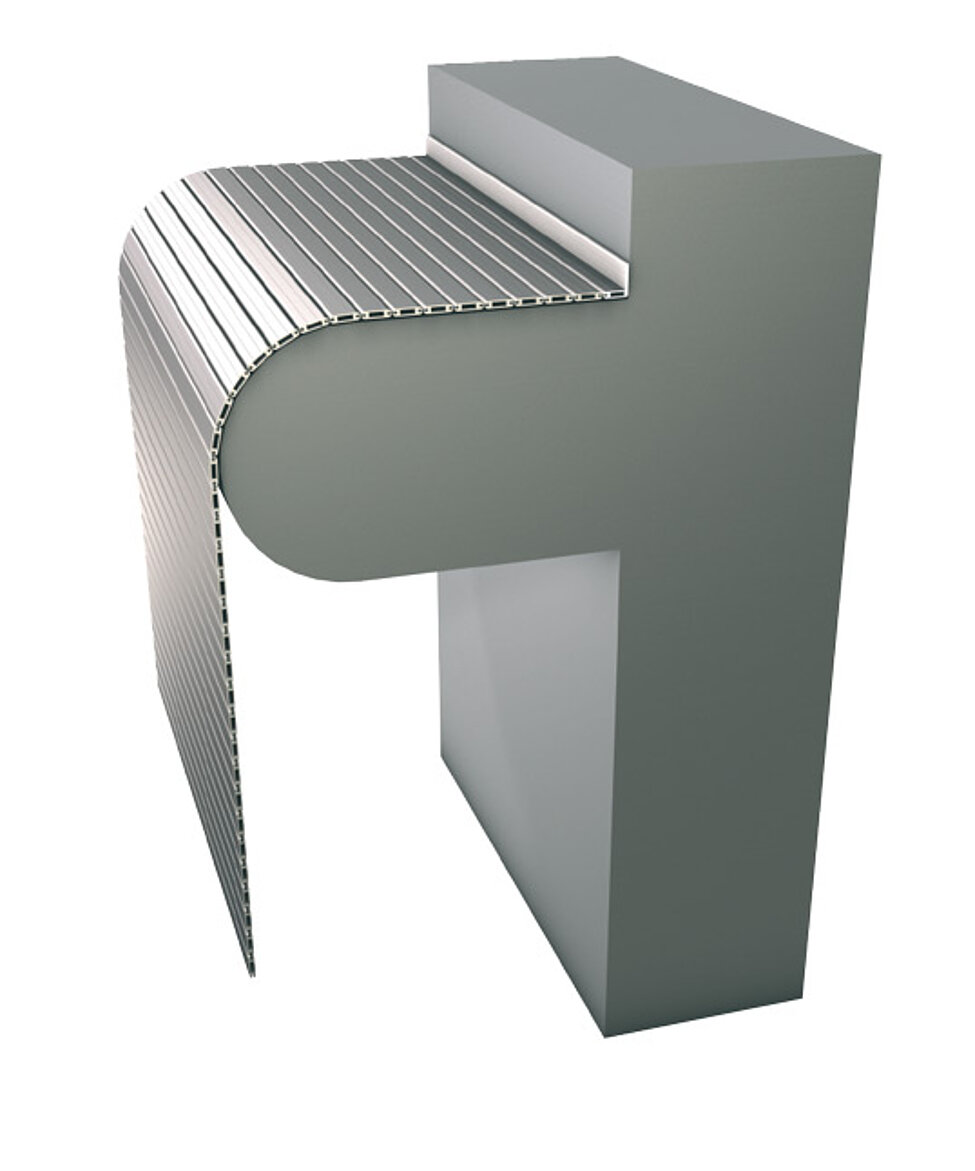

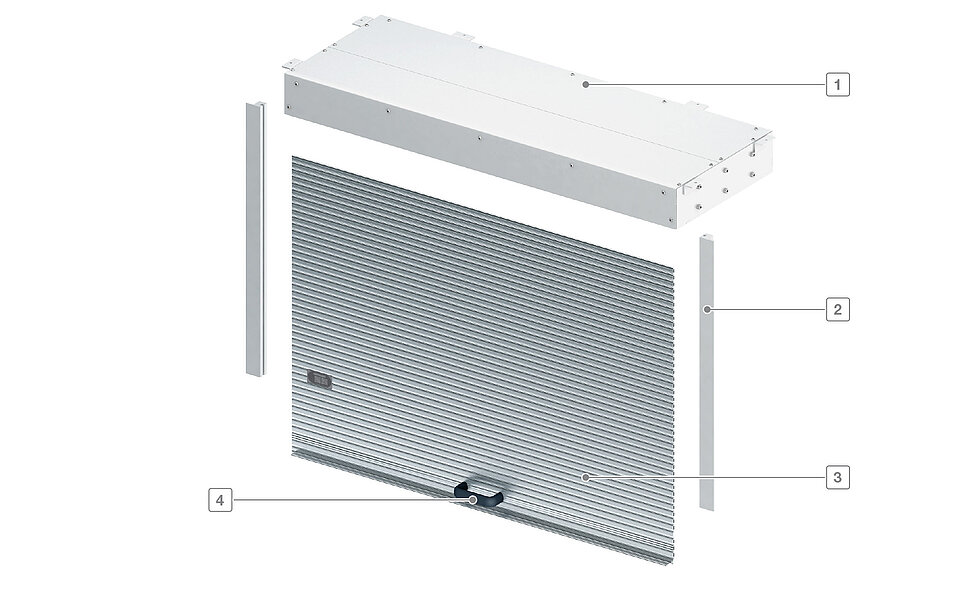

Flexible full metal link aprons with joints can be utilized on different positions within machinery. The configuration can be executed with a variety of connection types, with/without deflections, lateral guides or a roll-up device.

We will be pleased to support you with your application.

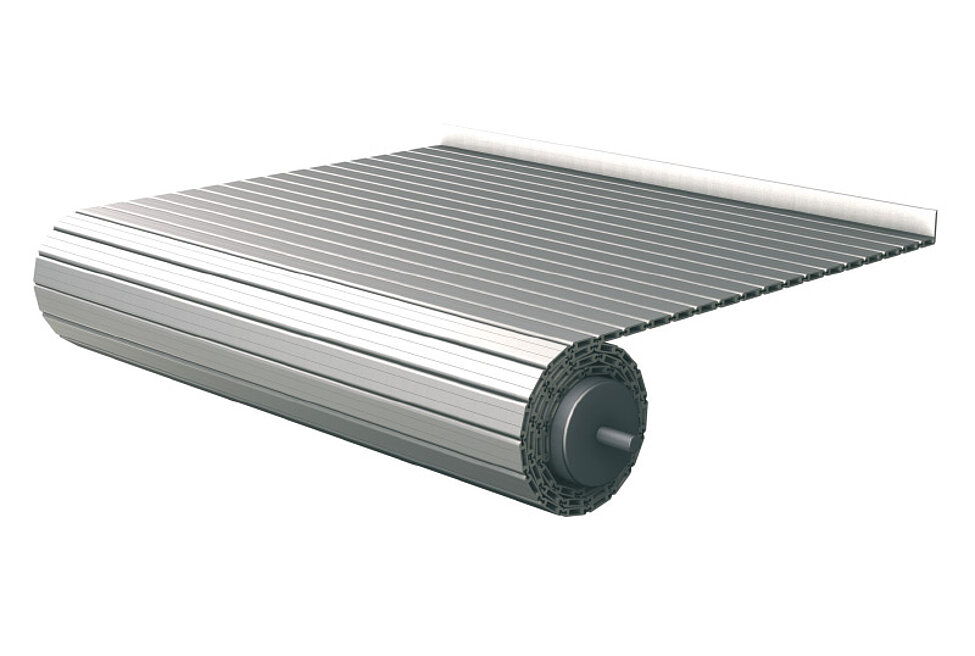

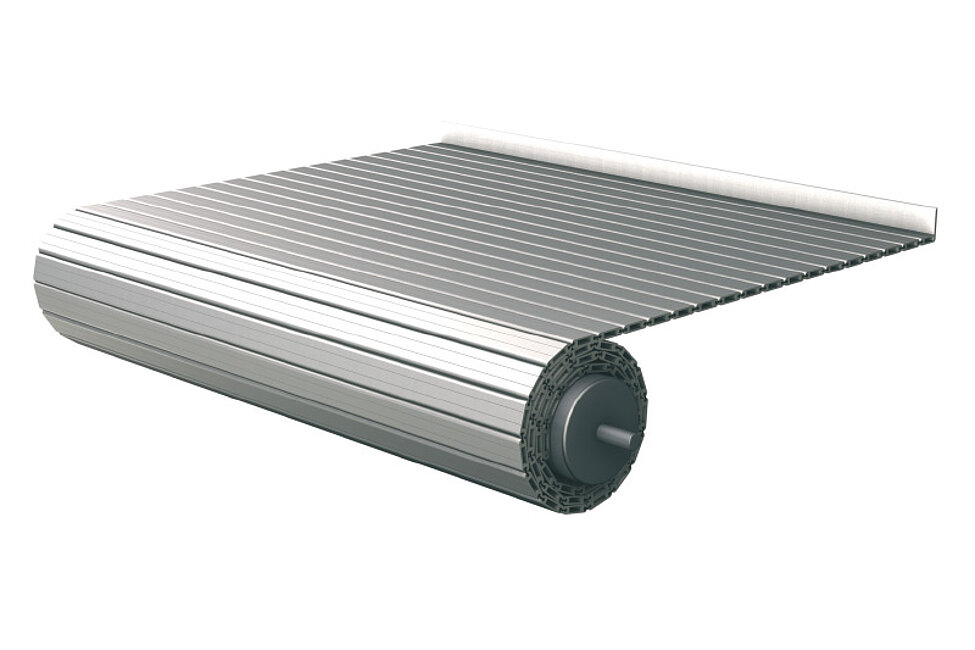

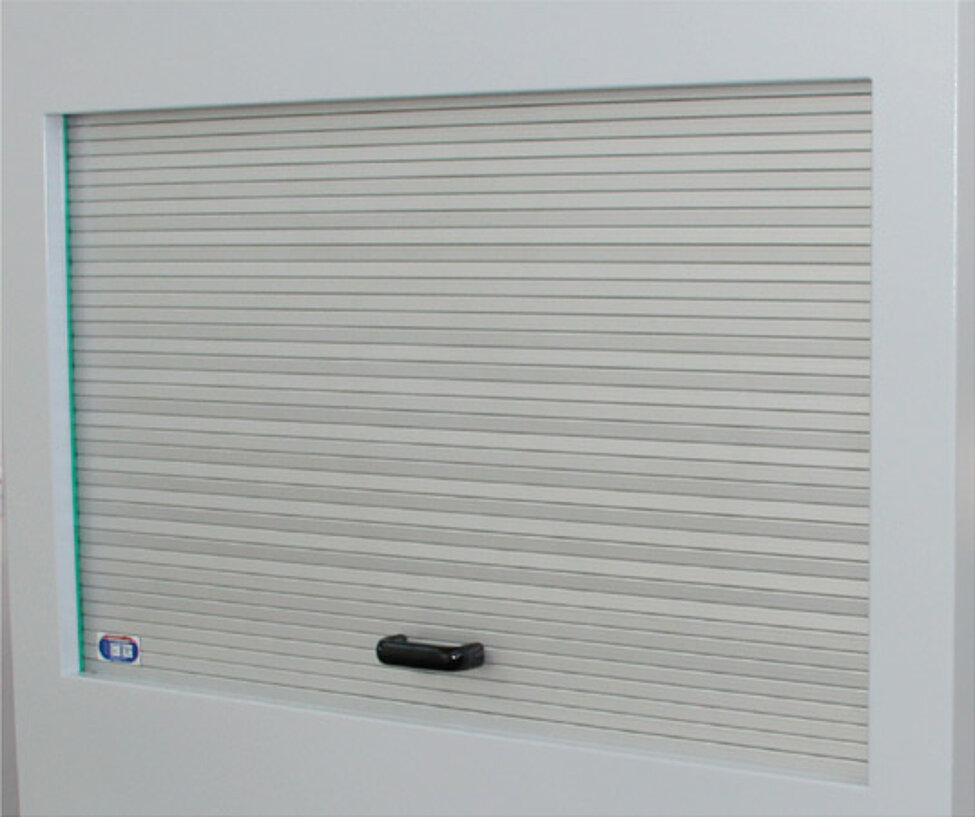

Roll-up devices

Our apron covers can also be delivered as a system solution. Determination and design is executed according to your individual requirements and can be both operated manually as well as automatically. Let us know your requirements – we will be pleased to advise you!
