Turning, milling, drilling and sawing applications
Conveyor systems for wet and dry machining at machine tools.
Depending on the application, hinged belt conveyors or scraper belt conveyors may be the right choice. Hinged belt conveyors are mainly used for wool or long chips as well as tufts of chips. Scraper belt conveyors are mainly used for small and short chips.
Selection by application
Guideline values for preselection
Type of Conveyor | Hinged belt conveyors | Scraper belt conveyors | |||||
|---|---|---|---|---|---|---|---|
SRF 040 | SRF 063 | SRF 100 | SRF 150 | KRF 040 | KRF 063 | KRF 100 | |
Type of chips | wool or long chips, tufts of chips | wool or long chips, tufts of chips | wool or long chips, tufts of chips | wool or long chips, tufts of chips | short, broken chips up to 50 mm | short, broken chips up to 50 mm | short, broken chips up to 50 mm |
Length | 1 – 10 m | 1 – 60 m | 1.5 – 100 m | 1.5 – 100 m | 1 – 10 m | 1 – 60 m | 1.5 – 100 m |
Conveying volume | 1.50 m3/h, guideline value | 7.50 m3/h, guideline value | 15.00 m3/h, guideline value | 26.00 m3/h, guideline value | 0.40 m3/h, guideline value | 1.30 m3/h, guideline value | 3.40 m3/h, guideline value |
Conveyor speed | 1 – 6 m/min | 1.2 – 10 m/min | 2.2 – 12 m/min | 3 – 12 m/min | 1 – 6 m/min | 1.2 – 10 m/min | 2.2 – 12 m/min |
Belt width | 100 – 600 mm | 150 – 2100 mm | 150 – 2100 mm | 300 – 2100 mm | 100 – 600 mm | 150 – 1000 mm | 150 – 1000 mm |
Deviating specifications on request
Sample applications
A combination of longitudinal and cross conveyors disposes of the chips on the crankshaft machining centers from MAG IAS.

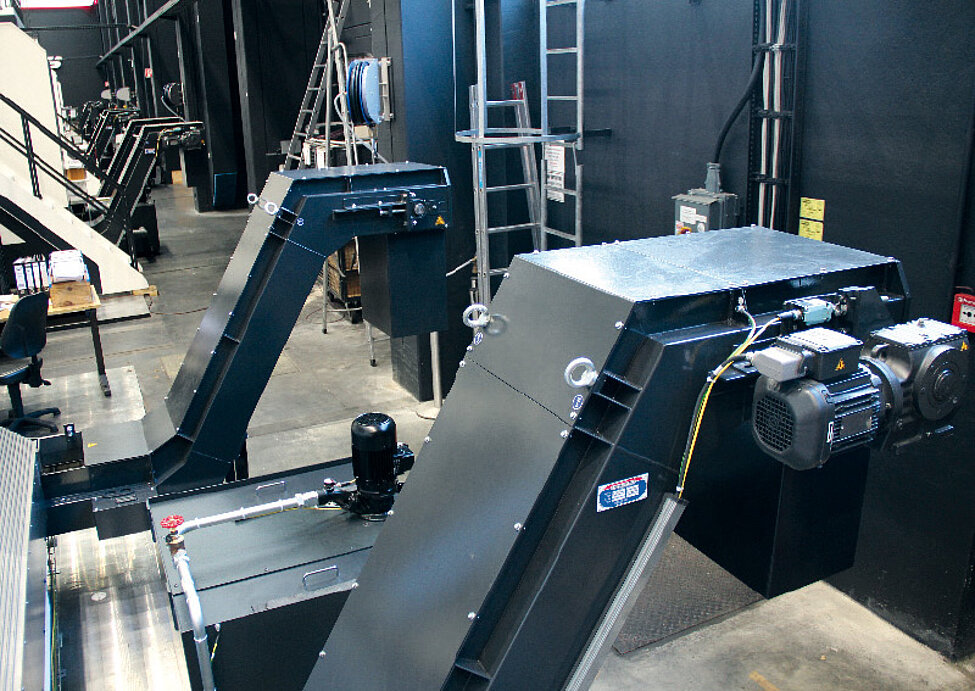

Modular design with serial character.

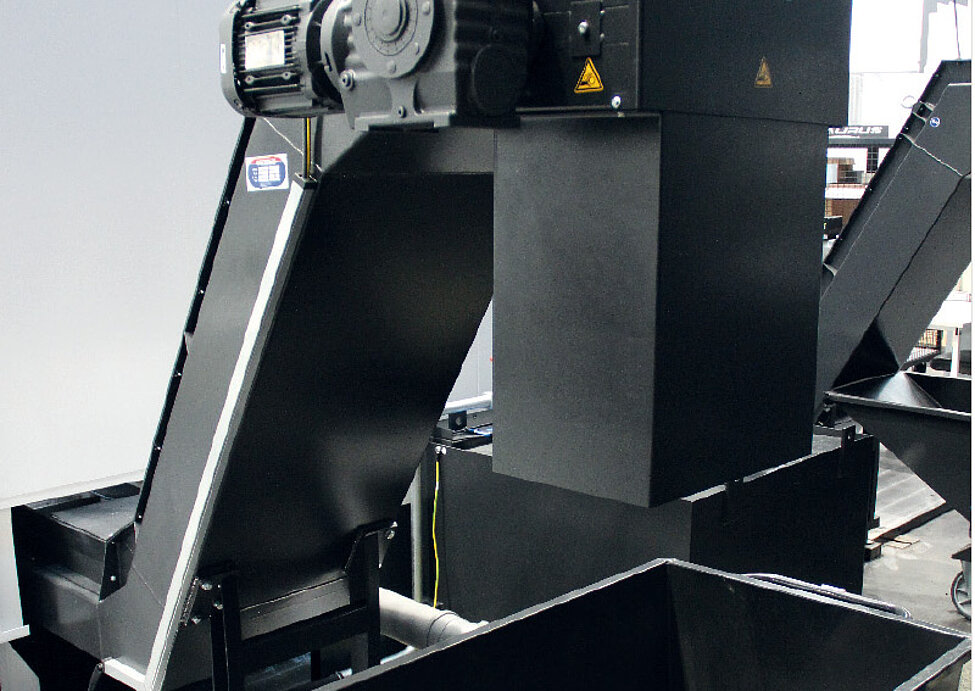

Chip disposal in chip container.
