Punch machining applications

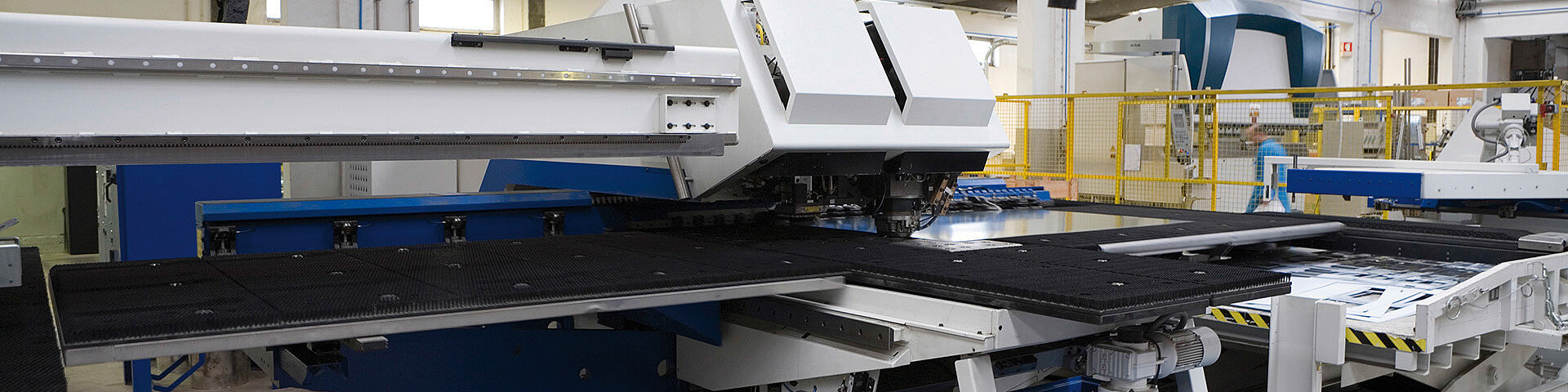

Conveyor systems for parts and residue management at punching or tube laser machines.
Punching machines produce punched scrap and punched slugs in large quantities. Depending on the application, hinged belt or belt conveyors can be used. Talk to us, we are happy to advise you!
Selection by application
Guideline values for preselection
Type of Conveyor | Hinged belt conveyors | Belt conveyors | ||
|---|---|---|---|---|
SRF 063 | SRF 100 | SRF 150 | GBF 113 | |
Sheet thickness | 1 mm | 2 mm | 3 mm | 0.1 mm; max. temperature: 80°C |
Length | 1 – 60 m | 1.5 – 100 m | 1.5 – 100 m | 1 – 12 m |
Conveyor speed | 1.2 – 10 m/min | 2.2 – 12 m/min | 3 – 12 m/min | 3 – 60 m/min |
Belt width | 150 – 2100 mm | 150 – 2100 mm | 300 – 2100 mm | 260 – 1400 mm |
Deviating specifications on request
Sample applications

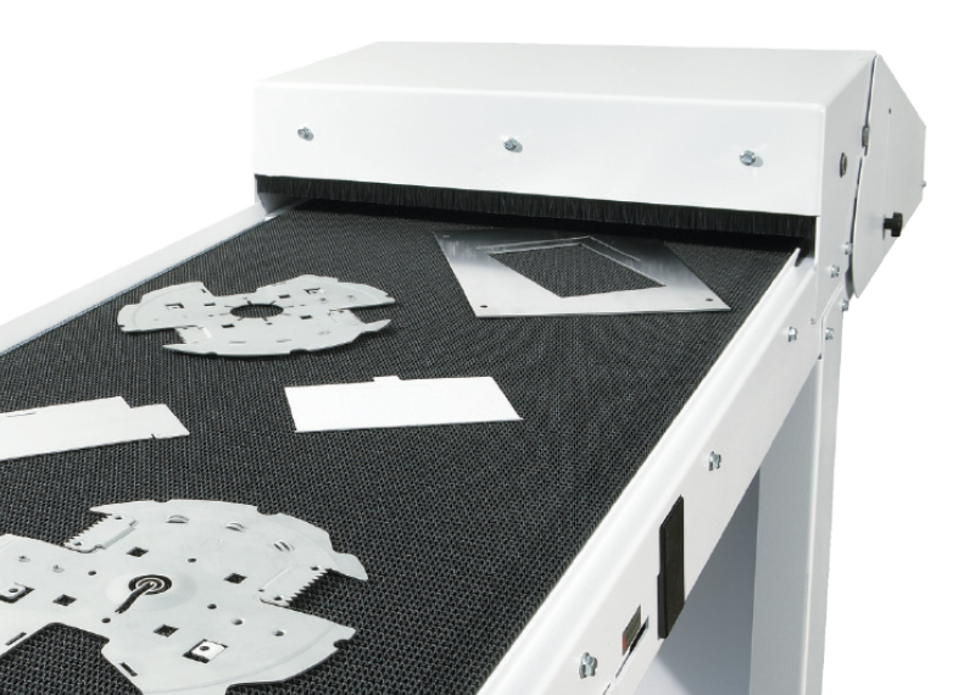

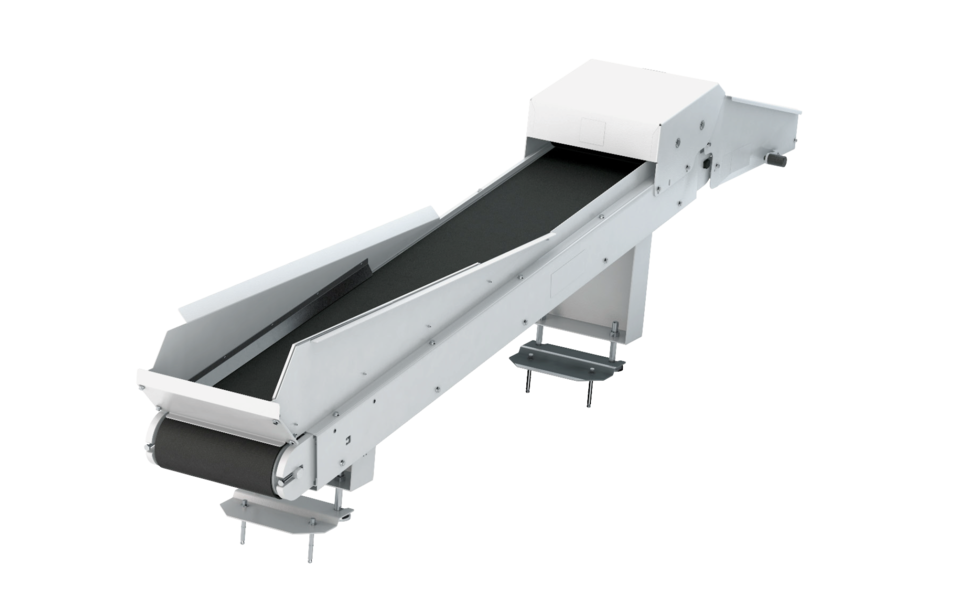

Gentle transport all the way to the parts depot

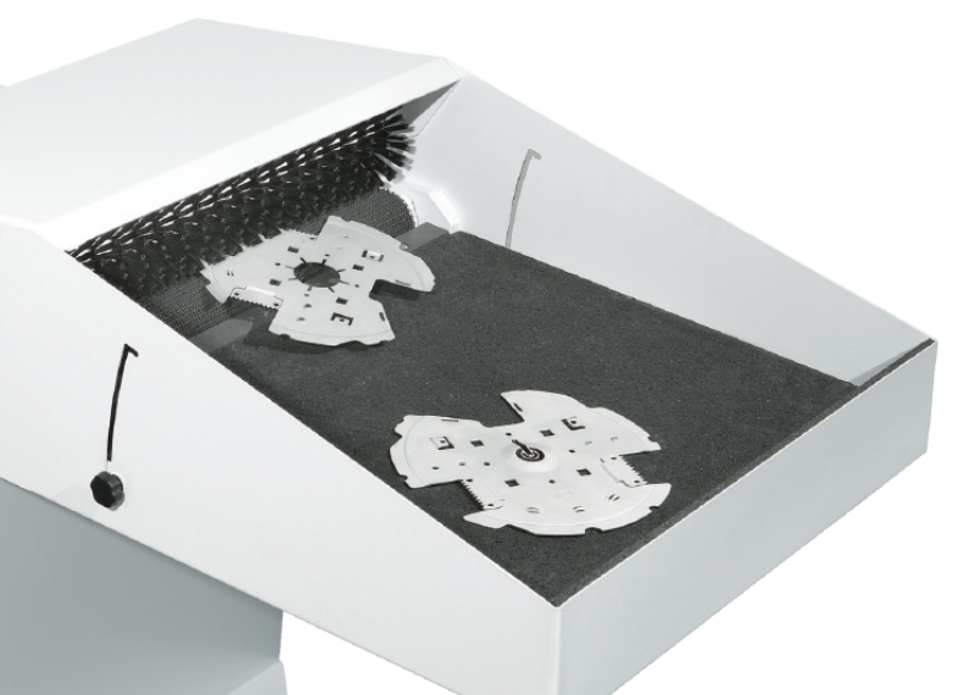

The parts conveyor provides the option of gently transporting parts with high standards for surface quality out into the required parts depot. The brush rollers in the discharge area ensure that the materials being transported are transfered to the parts depot virtually horizontally.
Start your inquiry
Please use the contact form for any inquiries you might have.
Matching with
Accessories and system components
Upon request, we can supply the right accessories and corresponding system components for your individual application. We are happy to assist you with planning and operational implementation of your project.
Service and spare parts
Even if installation conditions are difficult, our service team handles planning and installation of guideway protection and conveyor systems.
- Repair Service
- Predictive Maintenance
- Turn Key Solutions
The experts at out our Service Center provide the support you need.
