Laser machining applications
Conveyor systems for residue management at laser machines.
Today, laser machines are highly automated, and this increasingly applies to the disposal of waste and scale as well. Hinged belt conveyors and WAVE-BELT conveyors can be used.You can rely on our decades of experience in this area.
Selection by application
Guideline values for preselection
Type of Conveyor | Hinged belt conveyors | WAVE-BELT conveyors | |
|---|---|---|---|
SRF 040 | SRF 063 | WBC 063 | |
Sheet thickness | 1 mm | 1 mm | 0.5 mm |
Length | 1 – 10 m | 1 – 60 m | 1 – 60 m |
Conveyor speed | 1 – 6 m/min | 1.2 – 10 m/min | 1.2 – 10 m/min |
Belt width | 100 – 600 mm | 150 – 2100 mm | 150 – 2100 mm |
Deviating specifications on request
Sample applications

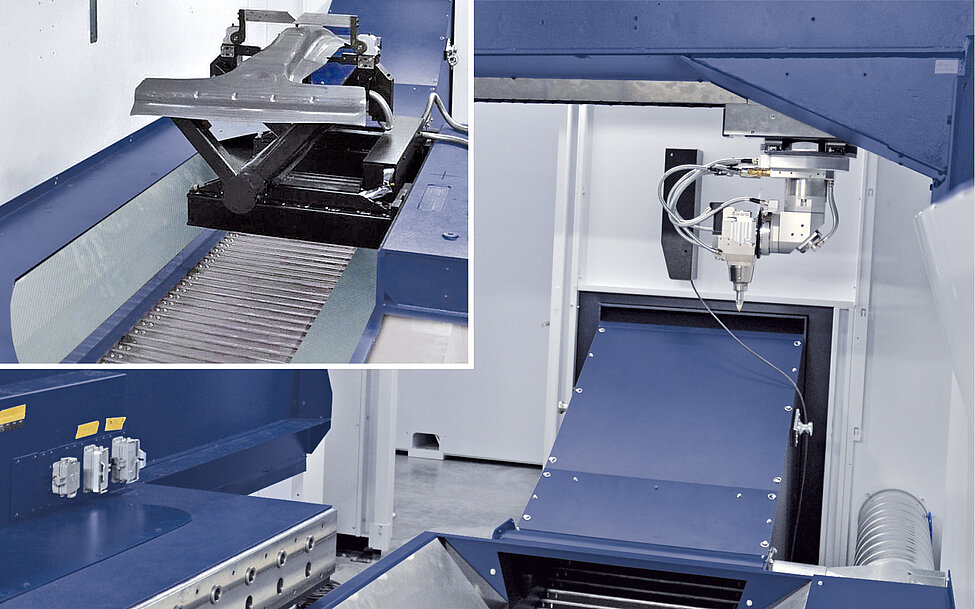

Conveyor system configuration on a laser cutting machine.

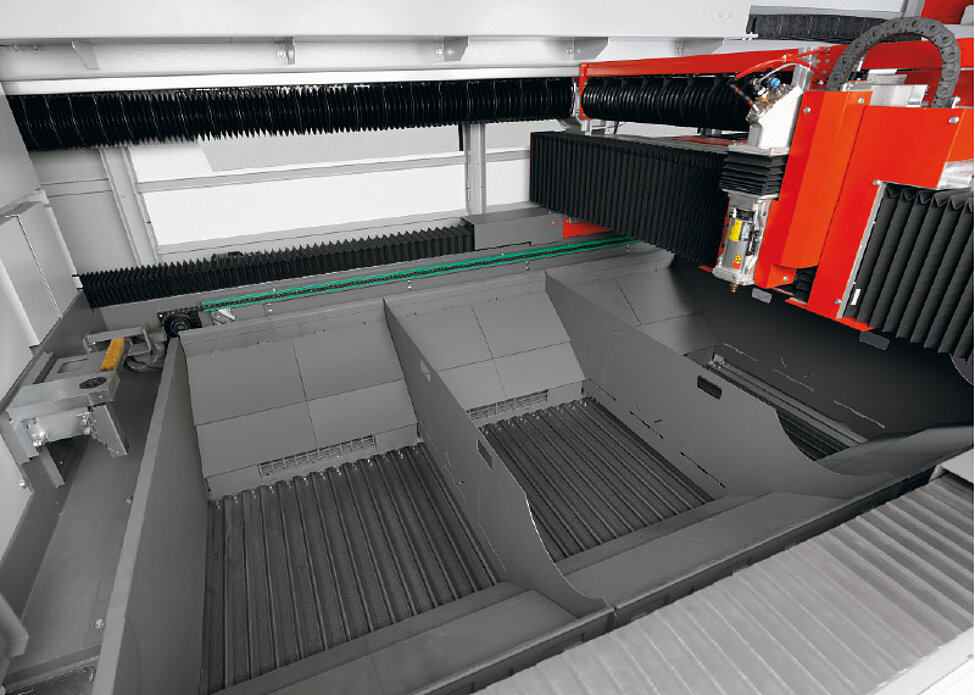

WAVE-BELT conveyor within the machine.

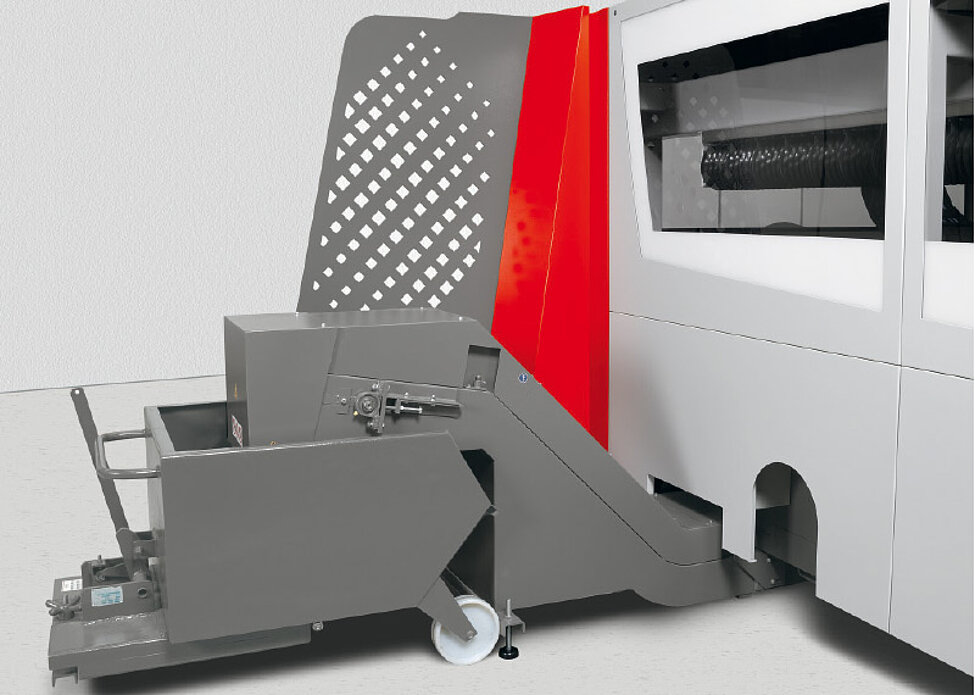

Discharge of parts into the container by the cross conveyor.
Start your inquiry
Please use the contact form for any inquiries you might have.
Matching with
Accessories and system components
Upon request, we can supply the right accessories and corresponding system components for your individual application. We are happy to assist you with planning and operational implementation of your project.
Service and spare parts
Even if installation conditions are difficult, our service team handles planning and installation of guideway protection and conveyor systems.
- Repair Service
- Predictive Maintenance
- Turn Key Solutions
The experts at out our Service Center provide the support you need.
