Central chip disposal applications
Conveyor systems for central residue management.
Are you planning a central disposal solution within your production facility? We have already realized a large number of individual solutions. Our focus is to find the best possible and individual solution together with you.
Selection by application
Guideline values for preselection
Type of Conveyor | Hinged belt conveyors | Scraper belt conveyors | |||
|---|---|---|---|---|---|
SRF 063 | SRF 100 | SRF 150 | KRF 063 | KRF 100 | |
Type of Chips | wool or long chips, tufts of chips | wool or long chips, tufts of chips | wool or long chips, tufts of chips | short, broken chips up to 50 mm | short, broken chips up to 50 mm |
Length | 1 – 60 m | 1.5 – 100 m | 1.5 – 100 m | 1 – 60 m | 1.5 – 100 m |
Conveying volume | 7.50 m3/h, guideline value | 15.00 m3/h, guideline value | 26.00 m3/h, guideline value | 1.30 m3/h, guideline value | 3.40 m3/h, guideline value |
Conveyor speed | 1.2 – 10 m/min | 2.2 – 12 m/min | 3 – 12 m/min | 1.2 – 10 m/min | 2.2 – 12 m/min |
Belt width | 150 – 2100 mm | 150 – 2100 mm | 300 – 2100 mm | 150 – 1000 mm | 150 – 1000 mm |
Deviating specifications on request
Sample applications

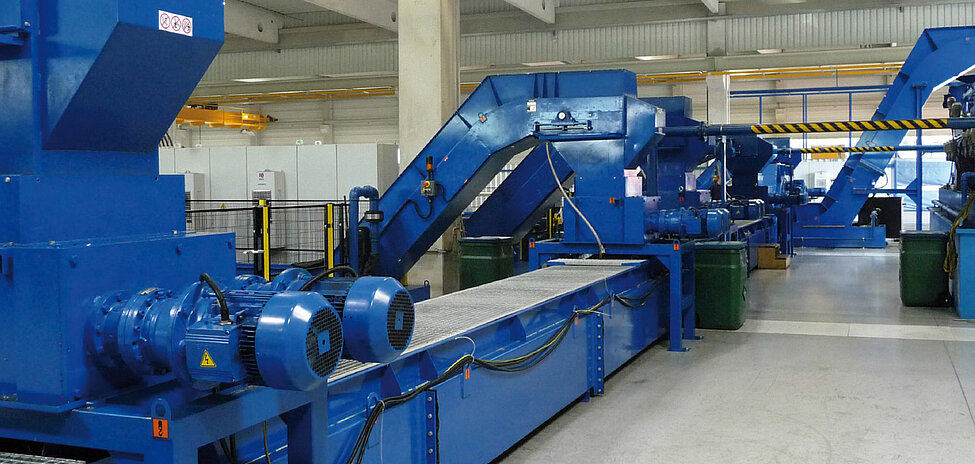

Central chip disposal and processing.
Chip separation and distribution on a peeling machine.

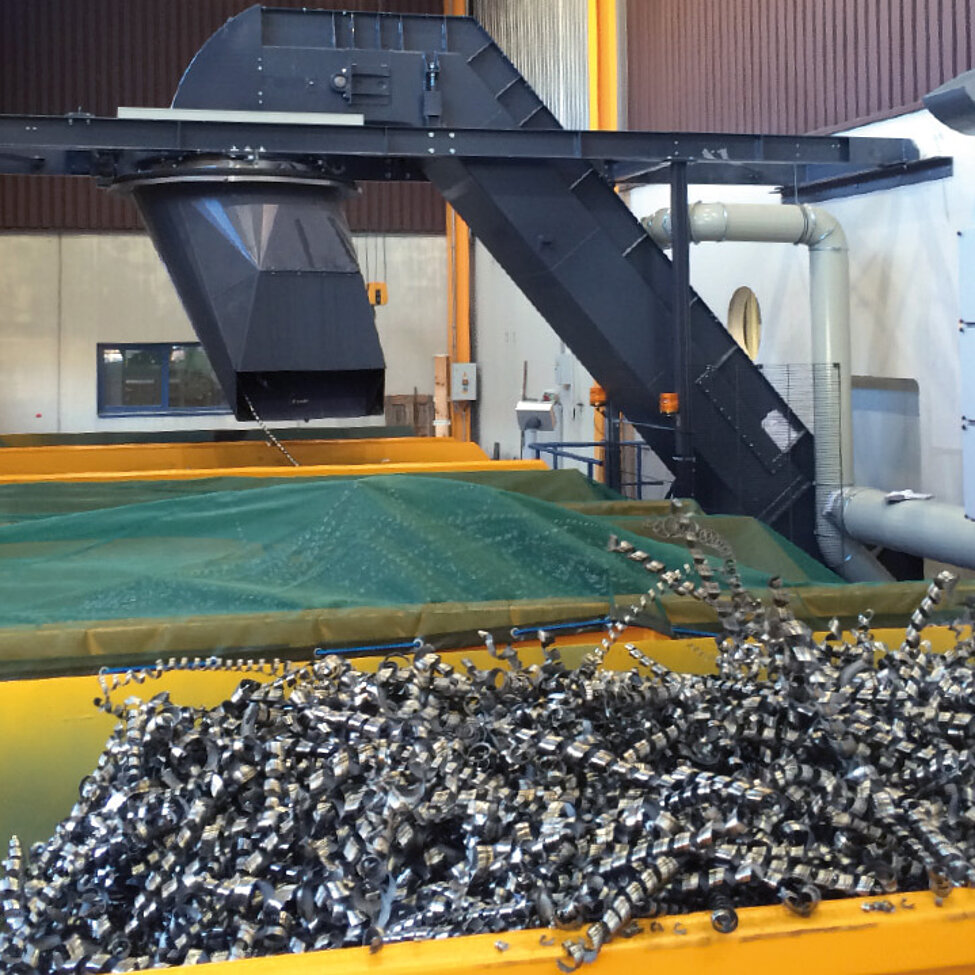

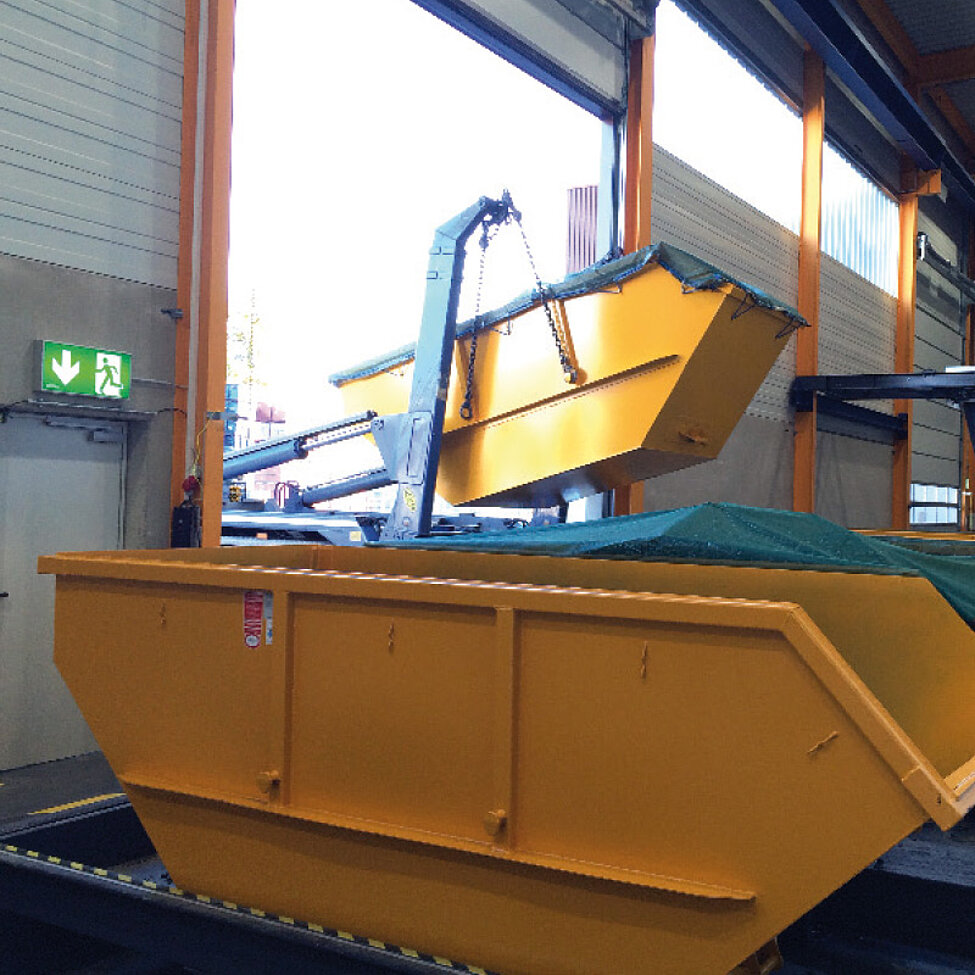

Container loading and removal.

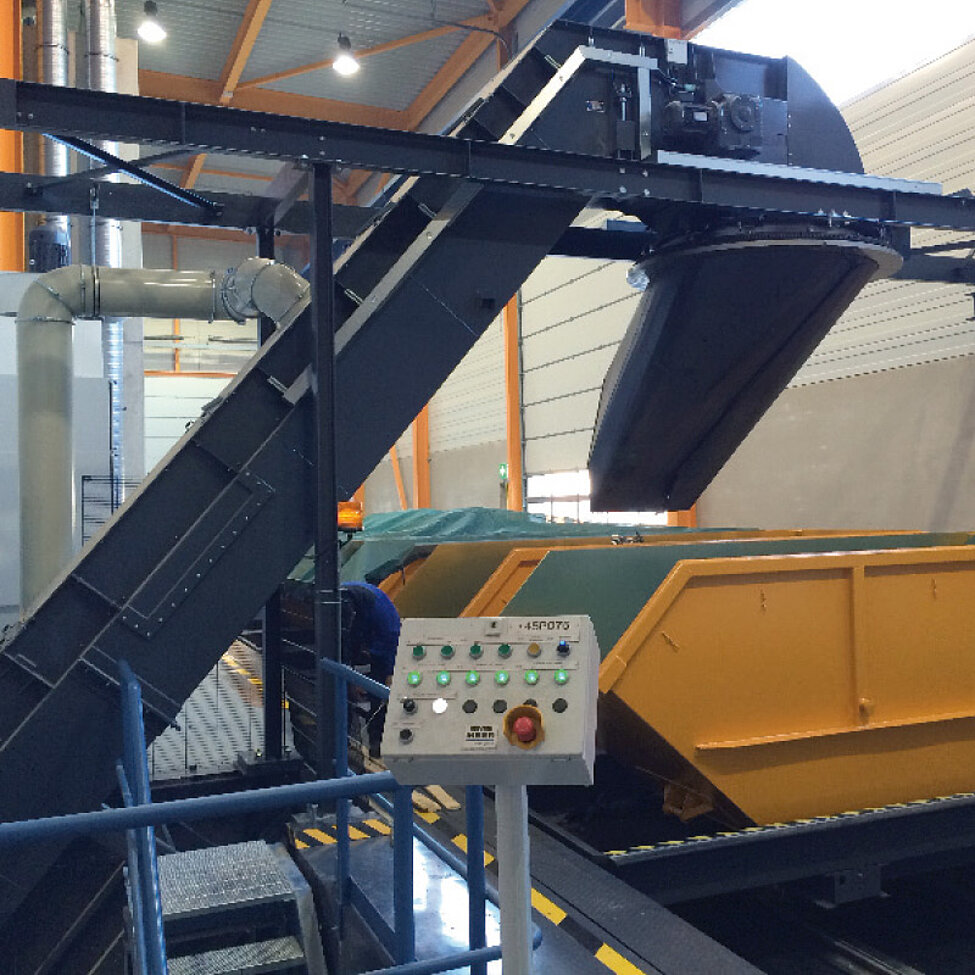

Manual or fully automated control of the filling.
