High voltage cables

Hi-flex High Voltage Power cables for use in cable carriers

  • High Voltage power supply of heavy duty applications and drives
  • High current flow
  • Single core

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands
  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands
  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

High voltage cables

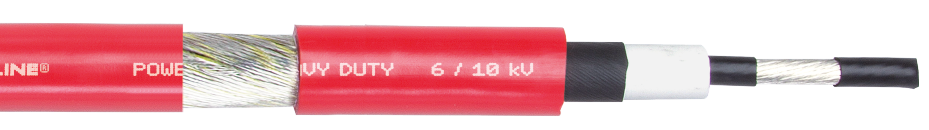

POWER ONE HEAVY DUTY 6/10 kV

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 1 Million
Travel length up to 1000 m
Stranding Wire bundles
more details

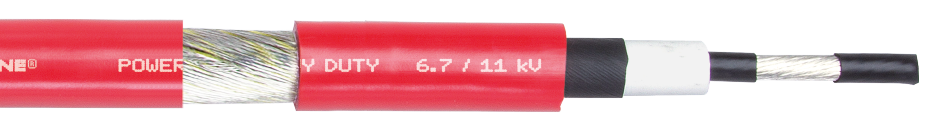

POWER ONE HEAVY DUTY 6.7/11 kV

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 1 Million
Travel length up to 1000 m
Stranding Wire bundles
more details

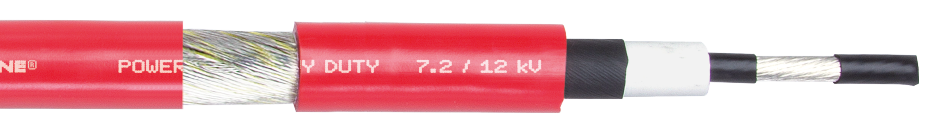

POWER ONE HEAVY DUTY 7.2/12 kV

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 1 Million
Travel length up to 1000 m
Stranding Wire bundles
more details
Type Outer jacket material Shield Flexibility Demands Up to motion cycles Travel length up to Stranding
POWER ONE HEAVY DUTY 6/10 kV PUR Shielded hi-flex very high demanding 1 Million 1000 m Wire bundles
POWER ONE HEAVY DUTY 6.7/11 kV PUR Shielded hi-flex very high demanding 1 Million 1000 m Wire bundles
POWER ONE HEAVY DUTY 7.2/12 kV PUR Shielded hi-flex very high demanding 1 Million 1000 m Wire bundles
