Data cables

Hi-flex Data cables for use in cable carriers

  • Network
  • Communication between transmitter and receiver
  • Transmission of information

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands
  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands
  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

Data cables

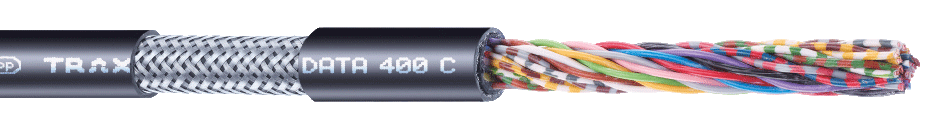

DATA 400 C

Outer jacket material PVC
Shield Shielded
Flexibility hi-flex
Demands demanding/ high demanding
Up to motion cycles 4 Million
Travel length up to 50 m
Stranding Layer stranded
more details

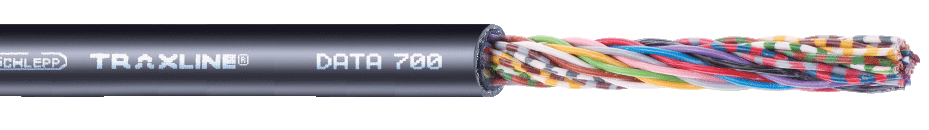

DATA 700

Outer jacket material PUR
Shield Unshielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 200 m
Stranding Layer stranded
more details

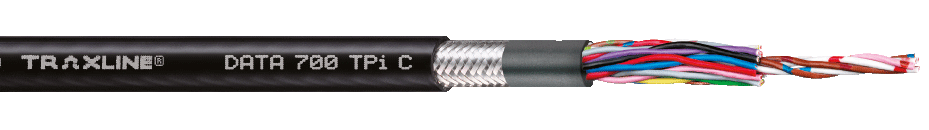

DATA 700 TPi C

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 200 m
Stranding Twisted pair stranded
more details

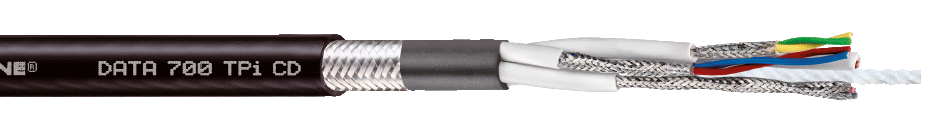

DATA 700 TPi CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Twisted pair stranded
more details

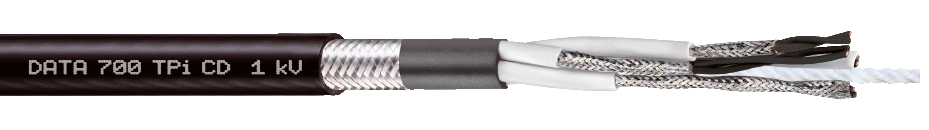

DATA 700 TPi CD 1 kV

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 500 m
Stranding Twisted pair stranded
more details

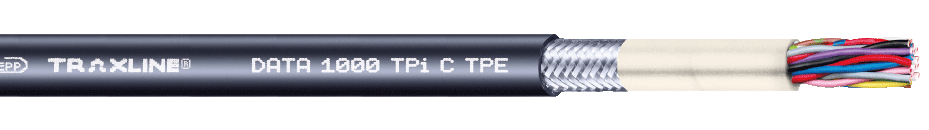

DATA 1000 TPi C TPE

Outer jacket material TPE
Shield Shielded
Flexibility hi-flex
Demands very high demanding
Up to motion cycles 10 Million
Travel length up to 400 m
Stranding Twisted pair stranded
more details
Type Outer jacket material Shield Flexibility Demands Up to motion cycles Travel length up to Stranding
DATA 400 C PVC Shielded hi-flex demanding/ high demanding 4 Million 50 m Layer stranded
DATA 700 PUR Unshielded hi-flex high demanding 7 Million 200 m Layer stranded
DATA 700 TPi C PUR Shielded hi-flex high demanding 7 Million 200 m Twisted pair stranded
DATA 700 TPi CD PUR Double shielded hi-flex high demanding 7 Million 500 m Twisted pair stranded
DATA 700 TPi CD 1 kV PUR Double shielded hi-flex high demanding 7 Million 500 m Twisted pair stranded
DATA 1000 TPi C TPE TPE Shielded hi-flex very high demanding 10 Million 400 m Twisted pair stranded
