BUS cables

Hi-flex BUS cables for use in cable carriers

  • Network
  • Communication with several participants

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands
  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands
  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

BUS cables

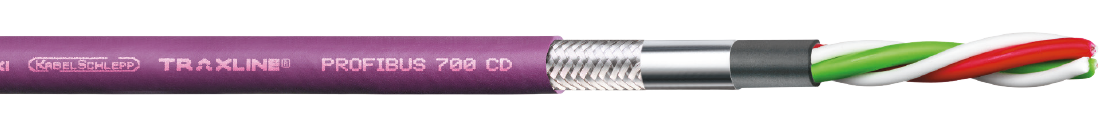

PROFIBUS 700 CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 100 m
Stranding Twisted pair stranded
more details

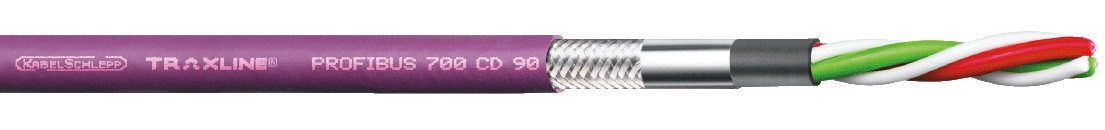

PROFIBUS 700 CD 90°C

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 100 m
Stranding Twisted pair stranded
more details

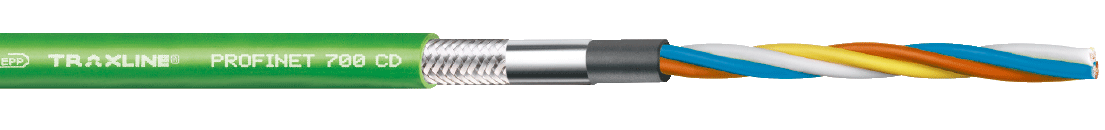

PROFINET 700 CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 10 Million
Travel length up to 100 m
Stranding Star quad
more details

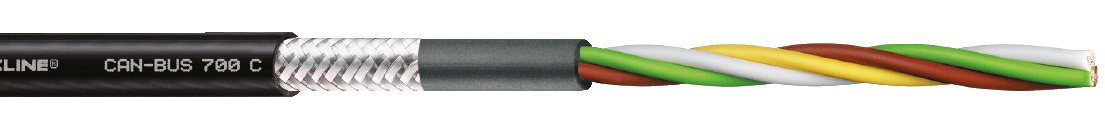

CAN-BUS 700 C

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 200 m
Stranding Type-optimized stranded cores
more details

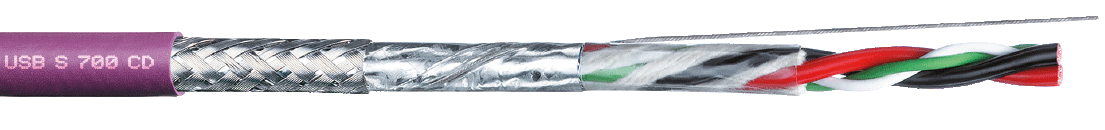

USB 2.0 S 700 CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 5 m
Stranding Twisted pair stranded
more details

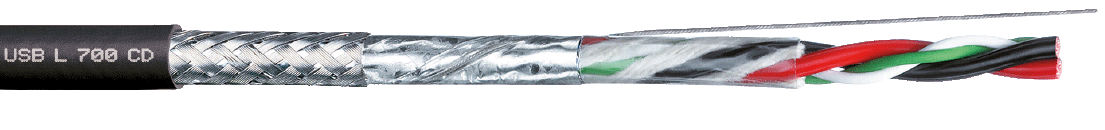

USB 2.0 L 700 CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 10 Million
Travel length up to 10 m
Stranding Twisted pair stranded
more details

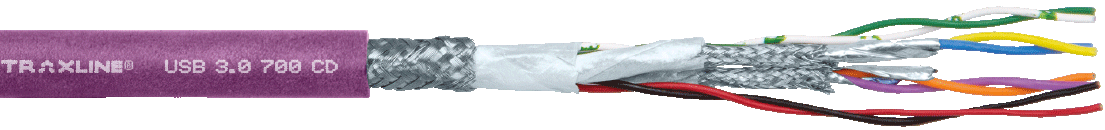

USB 3.0 700 CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 4 Million
Travel length up to 5 m
Stranding Twisted pair stranded
more details

CAT.5E 700 CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 60 m
Stranding Twisted pair stranded
more details

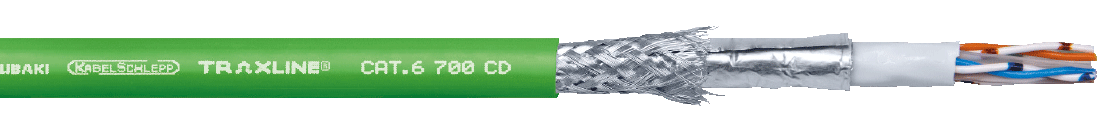

CAT.6 700 CD

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 7 Million
Travel length up to 60 m
Stranding Twisted pair stranded
more details
Type Outer jacket material Shield Flexibility Demands Up to motion cycles Travel length up to Stranding
PROFIBUS 700 CD PUR Double shielded hi-flex high demanding 7 Million 100 m Twisted pair stranded
PROFIBUS 700 CD 90°C PUR Double shielded hi-flex high demanding 7 Million 100 m Twisted pair stranded
PROFINET 700 CD PUR Double shielded hi-flex high demanding 10 Million 100 m Star quad
CAN-BUS 700 C PUR Shielded hi-flex high demanding 7 Million 200 m Type-optimized stranded cores
USB 2.0 S 700 CD PUR Double shielded hi-flex high demanding 7 Million 5 m Twisted pair stranded
USB 2.0 L 700 CD PUR Double shielded hi-flex high demanding 10 Million 10 m Twisted pair stranded
USB 3.0 700 CD PUR Double shielded hi-flex high demanding 4 Million 5 m Twisted pair stranded
CAT.5E 700 CD PUR Double shielded hi-flex high demanding 7 Million 60 m Twisted pair stranded
CAT.6 700 CD PUR Double shielded hi-flex high demanding 7 Million 60 m Twisted pair stranded
