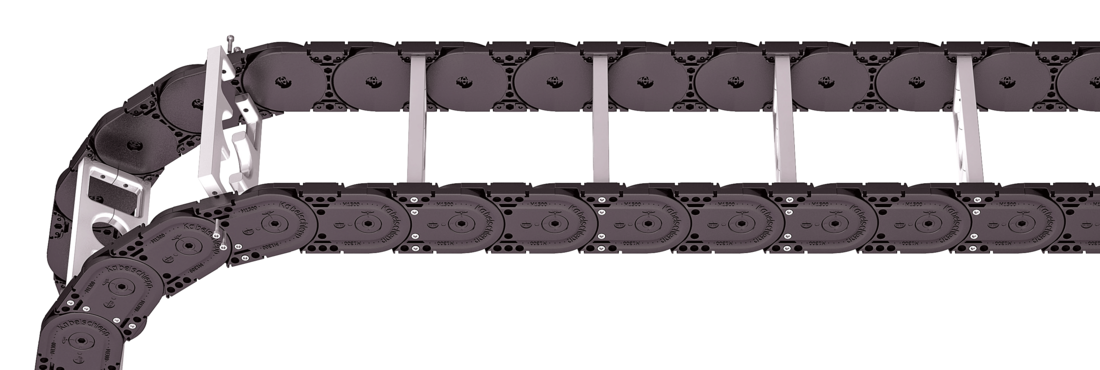

MC1300 LG

MC1300 LG

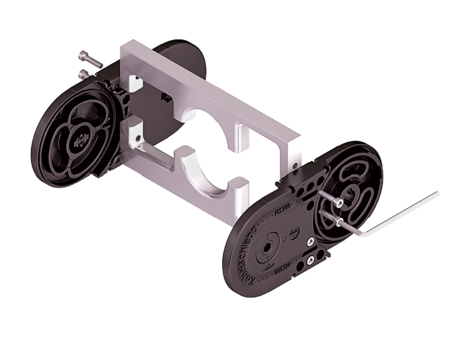

Aluminum stay LG – Hole stay, split version

Properties

  • Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
  • Available customized in 1 mm width sections.
  • Outside/inside: Screw-fixing easy to release.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 100 - 800 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Calculating the stay width
Stay width BSt: BSt = ∑D + ∑c + 2 a0
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="dmax red"><strong>D<sub>max</sub></strong><br>[mm]</th> <th class="dmin"><strong>D<sub>min</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]</th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <th class="cmin"><strong>c<sub>min</sub></strong><br>[mm]</th> <th class="a0min"><strong>a<sub>0</sub> min</strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk50"><strong>q<sub>k</sub> 50%</strong><br>[kg/m]<sup>**</sup></th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">130</td> <td class="hi">98</td> <td class="dmax red">98</td> <td class="dmin">12</td> <td class="hg">120</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 100 - 800 </td> <td class="bst red"> 100 - 800 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 50</td> <td class="bef">BSt + 50</td> <td class="cmin">4</td> <td class="a0min">13</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk50">7.04 - 13.53</td> </tr> </tbody> </table>
* in 1 mm width sections ** Hole ratio of the hole stay approx. 50 %
KR [mm]
150 195 240 280 320 360 400 500
qk 50%: 7.04 - 13.53 mm Hole ratio of the hole stay approx. 50 %

Order example

MC1300
Type
400
Bi [mm]
LG
Stay variant
360
KR [mm]
6500
Lk [mm]
HS
Stay arrangement

End connectors End connectors

Recommended tightening torque: 54 Nm for cheese-head screws ISO 4762 - M10 - 8.8

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
A
A
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
