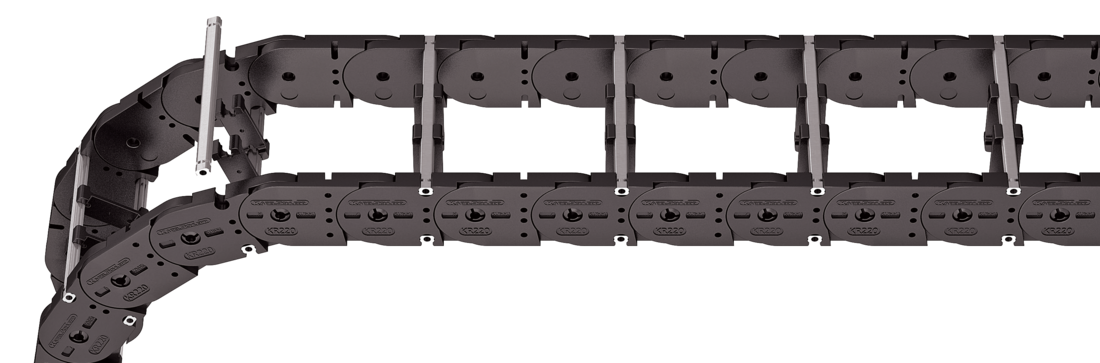

KC0650 RS

KC0650 RS

Aluminum stay RS – frame stay narrow

Properties

  • Extremely quick to open and close
  • Aluminum profile bars for light to medium loads. Assembly without screws.
  • Available customized in 1 mm width sections.

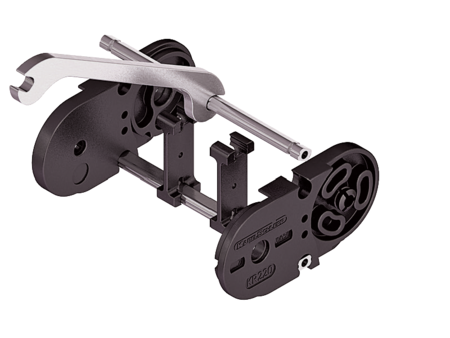

  • Outside/inside: to open by rotating 90°.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 75 - 400 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">65</td> <td class="hi red">38</td> <td class="hg">57.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 75 - 400 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 28</td> <td class="bef">Bi + 36</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">1.87 – 3.60</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
75 115 145 175 220 300

Order example

KC0650
Type
•
176
Bi [mm]
•
RS
Stay variant
•
115
KR [mm]
-
1430
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS – halfstayed). As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping on a socket (available as an accessory). This socket additionally acts as a spacer between the dividers and is available in a 1 mm grid between 3 – 50 mm. The inner height is reduced to 32 mm (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A6.513102

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		aT max
[mm]		ax min
[mm]		ac min
[mm]		nT min
A6.52513102

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A3.521152

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 3 mm).

Divider system TS3
with height separation consisting of plastic partitions

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A416/42*82

* For aluminum partitions

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

Aluminum partitions in 1 mm increments with ax > 42 mm are also available.

ax (centre distance of dividers) [mm]

ac (nominal width of inner chamber) [mm]

161823283233384348586468
81015202425303540505660
78808896112128144160176192208
70728088104120136152168184200

When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 4 mm). Twin dividers are also suitable for retrofitting in the partition system.

Order example

TS3
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1,...), the version, and the number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax].

If using divider systems with height separation (TS1 – TS3), please also state the positions (e.g. VD23) viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
U – Universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
