TKR0260.030

TKR0260.030

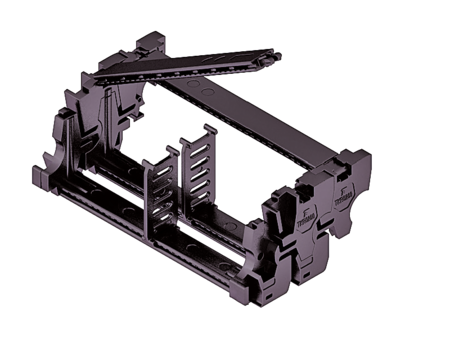

Stay variant 030 – with outside opening and detachable crossbars

Properties

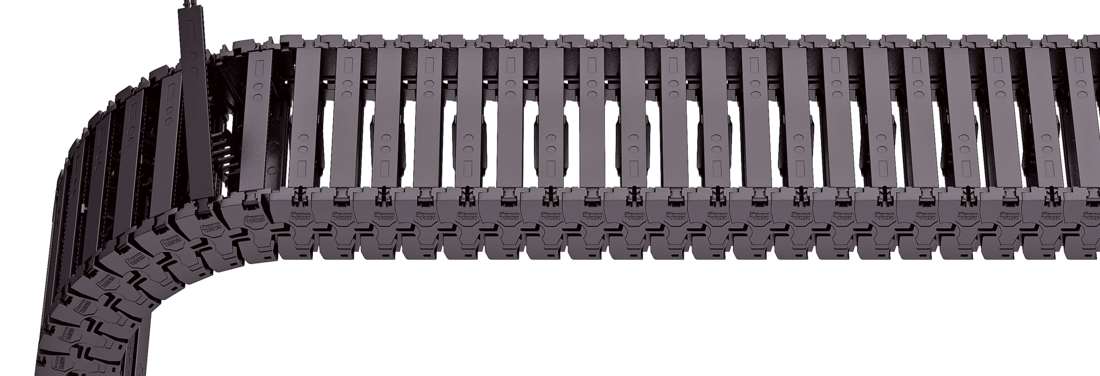

  • Low-vibration plastic frame with particularly long service life thanks to molded chain links.
  • Swivable and detachable on one side in any position.
  • Outside: Swivable and detachable
  • Inside: detachable
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 50 - 200 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t for odd number of chain links
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">26</td> <td class="hi red">40</td> <td class="hg">54</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 26</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">1.5 - 2.7</td> </tr> </tbody> </table>
Bi [mm]
50 62 75 87 100 125 150 200
KR [mm]
75 100 125 150

Order example

TKR0260
Type
•
100
Bi [mm]
•
030
Stay variant
•
125
KR [mm]
-
800
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As standard, the divider system is mounted on every 2nd chain link. As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

Fixable dividers are available for applications with lateral accelerations and for applications lying on the side. The arresting cams click into place in the locking grids in the crossbars (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A385.6––
BA85.64–
ABi [mm]50627587100125150200
aT min [mm]575.53.566.574

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A385.6–2
BA85.642
ABi [mm]50627587100125150200
aT min [mm]575.53.566.574

Divider system TS3
with height separation made of aluminum partitions

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A32620–2
BA282242
BBi [mm]50627587100125150200
AaT min [mm]575.53.566.574

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

Aluminum section subdivisions are only available with ax > 26 mm .

Order example

TS3
Divider system
•
A
Version
•
3
nT
-
K1
-
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 0.6 Nm for screws M4
Bi
[mm]		BEF
[mm]		nz
50762 x 3
6288-
751012 x 5
87113-
1001262 x 7
1251512 x 9
1501762 x 11
200226-

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
