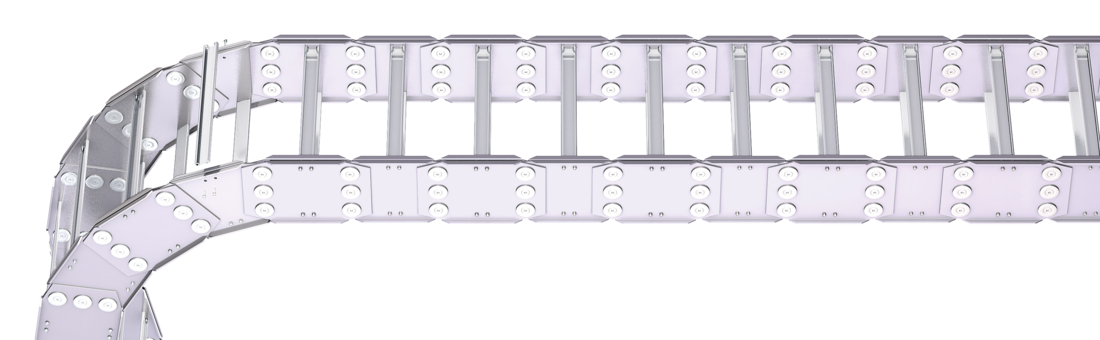

S/SX 8000 Steel stay special design

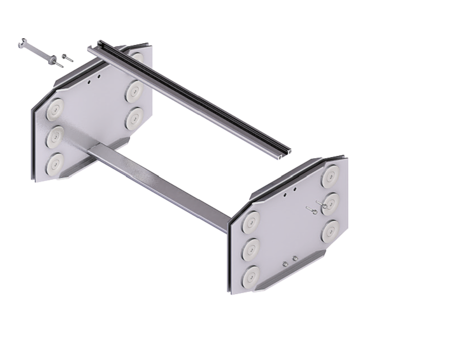

Steel stay – steel frame stay, bolted

Properties

Steel profile bars for extremely high additional loads and very large cable carrier widths. Double threaded joint on both sides.
Available customized in 1 mm grid.
Inside/outside: Threaded joint can be released.

Stay arrangement on each chain link (VS: fully-stayed)

B_k 350 - 1800 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length Lk: Lk ≈ LS/2 + LB

Cable carrier length Lk rounded to pitch t for odd number of chain links

<table class="table"> <thead> <tr>  <th class="t">t [mm]</th> <th class="hi red">hi [mm]</th> <th class="hg">hG [mm]</th>  <th class="bi">Bi [mm]</th> <th class="bst red">BSt [mm]*</th>  <th class="bk">Bk [mm]</th> <th class="atmax">aT max [mm]</th> <th class="axmax">ax max [mm]</th> <th class="ntmin">nTmin  </th>  <th class="qk">qk [kg/m]</th> </tr> </thead> <tbody> <tr>  <td class="t">550</td> <td class="hi red">578</td> <td class="hg">600</td>  <td class="bi"> 200 - 1650 </td> <td class="bst red"> 260 - 1710 </td>  <td class="bk">BSt + 90</td> <td class="atmax">300</td> <td class="axmax">300</td> <td class="ntmin">2</td>  <td class="qk">198 - 255</td> </tr> </tbody> </table>

^* in 1 mm width sections

KR [mm] ^*
900	1000	2000	2400

^* individual intermediate sizes available

End connectors End connectors

l₁ [mm]	l₂ [mm]	l₃ [mm]	l₄ [mm]	X₁ [mm]	X₂ [mm]	X₃ [mm]	Y₁ [mm]	Y₂ [mm]	Y₃ [mm]	Y₄ [mm]	Y₅ [mm]
400	300	100	50	140	220	300	12	22	90	15	50

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

S/SX 8000 Steel stay special design

Steel stay – steel frame stay, bolted

Properties

Dimensions Dimensions

End connectors End connectors

End connectors – steel End connectors made of steel. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.
