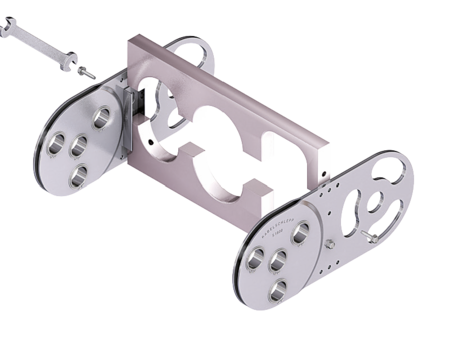

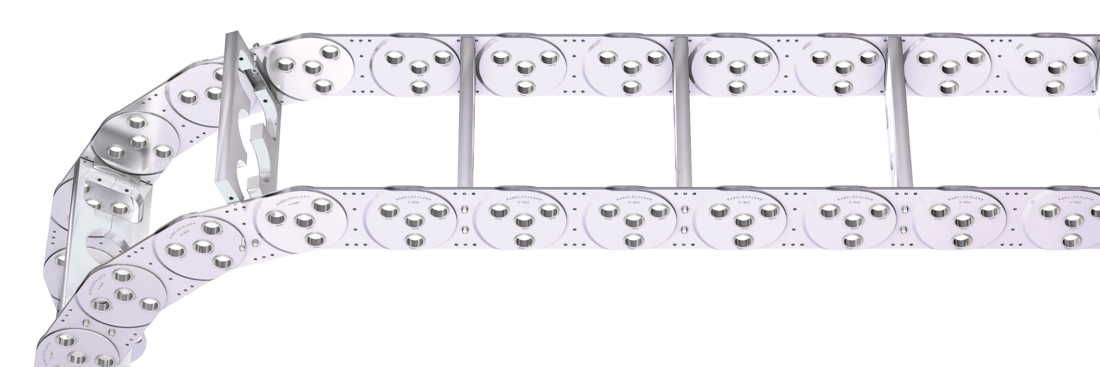

Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
Available customized in 1 mm grid.
Inside/outside: Threaded joint easy to release.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bk
180 - 1000 mm
in 1 mm width sections
Dimensions
Dimensions
<p>The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.</p>
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Calculating the stay width
Stay width BSt: BSt ≈ ∑D + ∑c + 2 a0
<table class="table">
<thead>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<th class="t"><strong>t</strong><br>[mm]</th>
<th class="hi"><strong>h<sub>i</sub></strong><br>[mm]</th>
<th class="dmax red"><strong>D<sub>max</sub></strong><br>[mm]</th>
<th class="dmin"><strong>D<sub>min</sub></strong><br>[mm]</th>
<th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th>
<th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="bi"><strong>B<sub>i</sub></strong><br>[mm]</th>
<th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]<sup>*</sup></th>
<!-- Bk und BEF für alle Ketten -->
<th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th>
<th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th>
<th class="cmin"><strong>c<sub>min</sub></strong><br>[mm]</th>
<th class="a0min"><strong>a<sub>0</sub> min</strong><br>[mm]</th>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="qk50"><strong>q<sub>k</sub> 50%</strong><br>[kg/m]<sup>**</sup></th>
</tr>
</thead>
<tbody>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<td class="t">180</td>
<td class="hi">110</td>
<td class="dmax red">110</td>
<td class="dmin">12</td>
<td class="hg">140</td>
<td class="hgdash">155</td>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="bi">
121 - 941
</td>
<td class="bst red">
148 - 968
</td>
<!-- Bk und BEF für alle Ketten -->
<td class="bk">BSt + 32</td>
<td class="bef">BSt + 43</td>
<td class="cmin">4</td>
<td class="a0min">13.5</td>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="qk50">24.38 - 35.08</td>
</tr>
</tbody>
</table>
* in 1 mm width sections** Hole ratio of the hole stay approx. 50 %
KR [mm]
265
320
375
435
490
605
720
890
1,175
1,300
qk 50%:
24.38 - 35.08 mm
Hole ratio of the hole stay approx. 50 %
Order example
S1800
Type
•
417
BSt [mm]
•
LG
Stay variant
•
375
KR [mm]
St
Material
-
5940
Lk [mm]
HS
Stay arrangement
End connectors
End connectors
Connection point F– fixed point M– driver
Connection type A – threaded joint outside (standard) I – threaded joint inside H – threaded joint, rotated 90° to the outside K – threaded joint, rotated 90° to the inside
