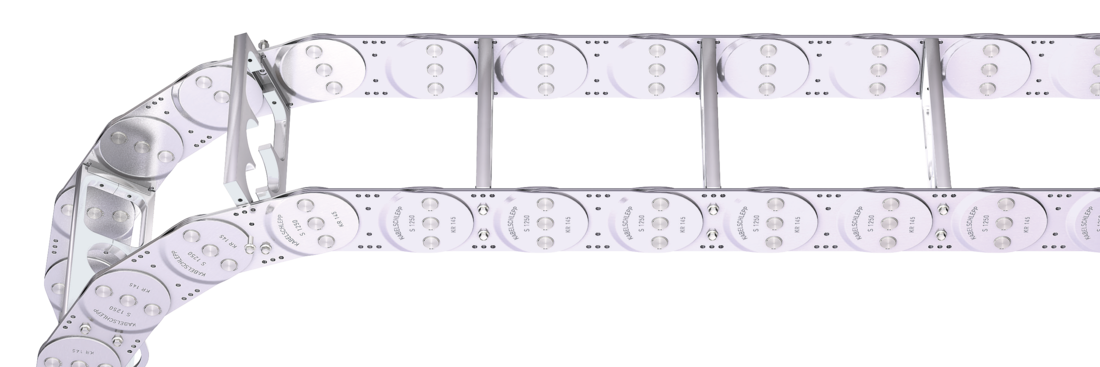

Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
Available customized in 1 mm grid.
Inside/outside: Threaded joint easy to release.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bk
130 - 800 mm
in 1 mm width sections
Dimensions
Dimensions
The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Calculating the stay width
Stay width BSt: BSt ≈ ∑D + ∑c + 2 a0
<table class="table">
<thead>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<th class="t"><strong>t</strong><br>[mm]</th>
<th class="hi"><strong>h<sub>i</sub></strong><br>[mm]</th>
<th class="dmax red"><strong>D<sub>max</sub></strong><br>[mm]</th>
<th class="dmin"><strong>D<sub>min</sub></strong><br>[mm]</th>
<th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th>
<th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="bi"><strong>B<sub>i</sub></strong><br>[mm]</th>
<th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]<sup>*</sup></th>
<!-- Bk und BEF für alle Ketten -->
<th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th>
<th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th>
<th class="cmin"><strong>c<sub>min</sub></strong><br>[mm]</th>
<th class="a0min"><strong>a<sub>0</sub> min</strong><br>[mm]</th>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="qk50"><strong>q<sub>k</sub> 50%</strong><br>[kg/m]<sup>**</sup></th>
</tr>
</thead>
<tbody>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<td class="t">125</td>
<td class="hi">76</td>
<td class="dmax red">76</td>
<td class="dmin">12</td>
<td class="hg">94</td>
<td class="hgdash">104</td>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="bi">
82 - 752
</td>
<td class="bst red">
104 - 774
</td>
<!-- Bk und BEF für alle Ketten -->
<td class="bk">BSt + 26</td>
<td class="bef">BSt + 32</td>
<td class="cmin">4</td>
<td class="a0min">11</td>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="qk50">13.10 - 18.22</td>
</tr>
</tbody>
</table>
* in 1 mm width sections** Hole ratio of the hole stay approx. 50 %
KR [mm]
145
200
220
260
300
340
380
420
460
500
540
600
1,000
qk 50%:
13.10 - 18.22 mm
Hole ratio of the hole stay approx. 50 %
Order example
S1250
Type
•
400
BSt [mm]
•
LG
Stay variant
•
200
KR [mm]
•
St
Material
-
4750
Lk [mm]
HS
Stay arrangement
End connectors
End connectors
Connection point F – fixed point M – driver
Connection type A – threaded joint outside (standard) I – threaded joint inside H – threaded joint, rotated 90° to the outside K – threaded joint, rotated 90° to the inside
Connection surface I – connection surface inside (standard) A – connecting surface outside
Caution: The standard connection variant FAI/MAI is only possible from Bk of 125 mm.
Order example
Steel
Steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface
We recommend the use of strain reliefs at the driver and fixed point.
