MT0950 RMD

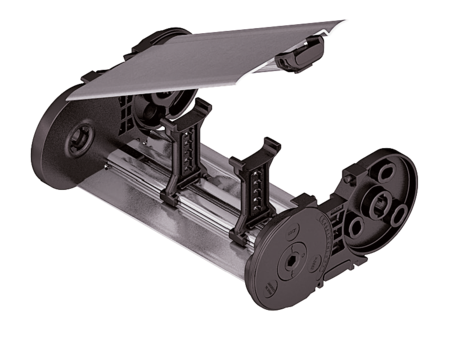

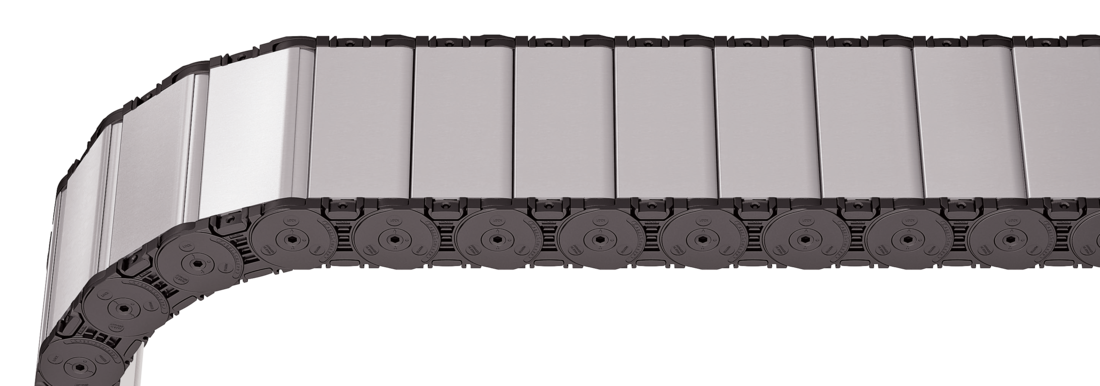

Aluminum cover RMD – cover with hinge in the outer radius

Properties

Aluminum cover system with hinge for light and medium loads. Assembly without screws.
Available customized in 1 mm sections.
Outside: swivable to both sides.
Inside: release by turning 90°.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 100 - 600 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

For rough environmental conditions, we recommend the use of OFFROAD glide shoes with 80 % higher wear volume.

Calculating the cable carrier length

Cable carrier length Lk: Lk ≈ LS/2 + LB

Cable carrier length Lk rounded to pitch t

<table class="table"> <thead> <tr>  <th class="t">t [mm]</th> <th class="hi red">hi [mm]</th> <th class="hg">hG [mm]</th> <th class="hgdash">hG' [mm]</th> <th class="hgdashoffroad">hG' Offroad [mm]</th>  <th class="bi red">Bi [mm]*</th>  <th class="bk">Bk [mm]</th> <th class="bef">BEF [mm]</th>  <th class="qk">qk [kg/m]</th> </tr> </thead> <tbody> <tr>  <td class="t">95</td> <td class="hi red">54.5</td> <td class="hg">80</td> <td class="hgdash">83.5</td> <td class="hgdashoffroad">86</td>  <td class="bi red"> 100 - 600 </td>  <td class="bk">Bi + 39</td> <td class="bef">Bi + 39</td>  <td class="qk">6.12 - 17.13</td> </tr> </tbody> </table>

^* in 1 mm width sections

KR [mm]
200	260	290	320	380

Order example

MT0950

Type

•

400

B_i [mm]

•

RMD

Stay variant

•

200

KR [mm]

2850

Lk [mm]

Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is mounted on every 2^nd chain link.

As a standard, dividers or the complete divider System (dividers with height separations) are movable in the cross section (version A).

Divider system TS0
without height separation

Vers.	aT min [mm]	ax min [mm]	ac min [mm]	nT min
A	3.5	12	8	–

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.	aT min [mm]	aT max [mm]	ax min [mm]	ac min [mm]	nT min
A	3.5	25	12	8	2

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.	aT min [mm]	ax min [mm]	ac min [mm]	nT min
A	4.5	21	15	2

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 4 mm).

Order example

TS2

Divider system

•

Version

n_T

•

Chamber

•

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 – TS2) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.
