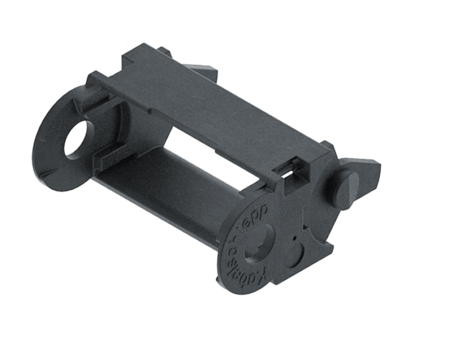

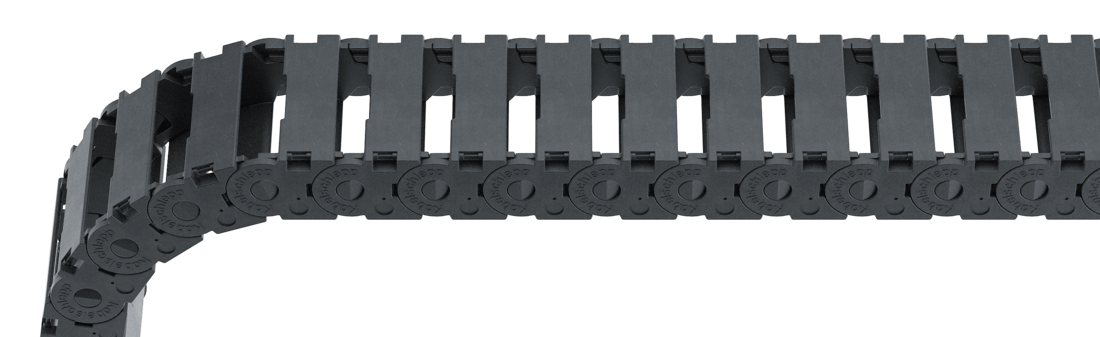

Type 0182 – closed frame
Properties
- Weight optimised, closed plastic frame with high torsional rigidity.
- Outside/inside: not openable.
Dimensions Dimensions
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
| Bi [mm] | ||||
|---|---|---|---|---|
| 10 | 15 | 20 | 30 | 40 |
| KR [mm] | ||
|---|---|---|
| 28 | 37 | 50 |
Order example
MONO
Series
•
0182
Type
30
Bi [mm]
•
37
KR [mm]
-
720
Lk [mm]
VS
Stay arrangement
End connectors End connectors
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
Order example
End connector
End connector
End connector
•
F
•
M
Connection point
A
A
Connection type
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
Order example
End connector
End connector
End connector
•
F
•
M
Connection point
A
A
Connection type
