MC0950 RV

MC0950 RV

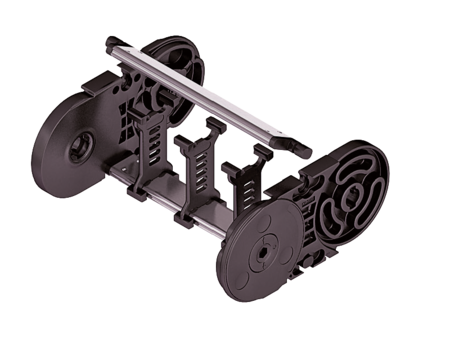

Aluminum stay RV – frame stay reinforced

Properties

  • Aluminum profile bars with plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
  • Available customized in 1 mm grid.
  • Outside/inside: release by turning by 90°.

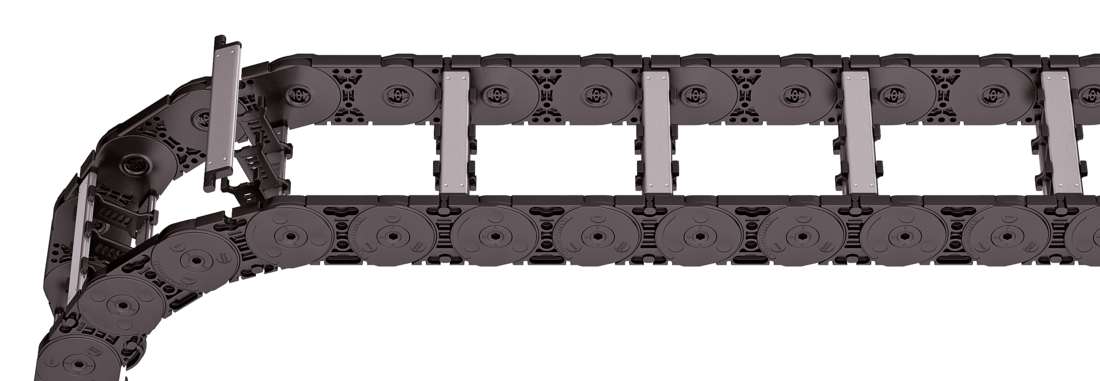

Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 75 - 500 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
For rough environmental conditions, we recommend the use of OFFROAD glide shoes with 80 % higher wear volume.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <th class="hgdashoffroad"><strong>h<sub>G'</sub> Offroad</strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">95</td> <td class="hi red">58</td> <td class="hg">80</td> <td class="hgdash">83.5</td> <td class="hgdashoffroad">86</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 75 - 500 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 39</td> <td class="bef">Bi + 39</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">3.32 – 6.02</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
140 170 200 260 290 320 380

Order example

MC0950
Type
•
400
Bi [mm]
•
RV
Stay variant
•
200
KR [mm]
-
2850
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

Divider systems

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS).

As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A4.514102

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		aT max
[mm]		ax min
[mm]		ac min
[mm]		nT min
A4.52514102

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A5.521152

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 4 mm).

Divider system TS3
with height separation made of plastic partitions

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A416/42*82

* For aluminum partitions

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

Aluminum partitions in 1 mm increments with ax > 42 mm are also available.

ax (center distance of dividers) [mm]

ac (nominal width of inner chamber) [mm]

161823283233384348586468
81015202425303540505660
78808896112128144160176192208
70728088104120136152168184200

When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 4 mm). Twin dividers are also suitable for retrofitting in the partition system.

Order example

TS3
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 27 Nm for cheese-head screws ISO 4762 - M8 - 8.8

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Connection surface
I – connection surface inside
A – connection surface outside

Order example

Plastic/steel
Plastic/steel
End connector
•
F
•
M
Connection point
A
A
Connection type
A
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
