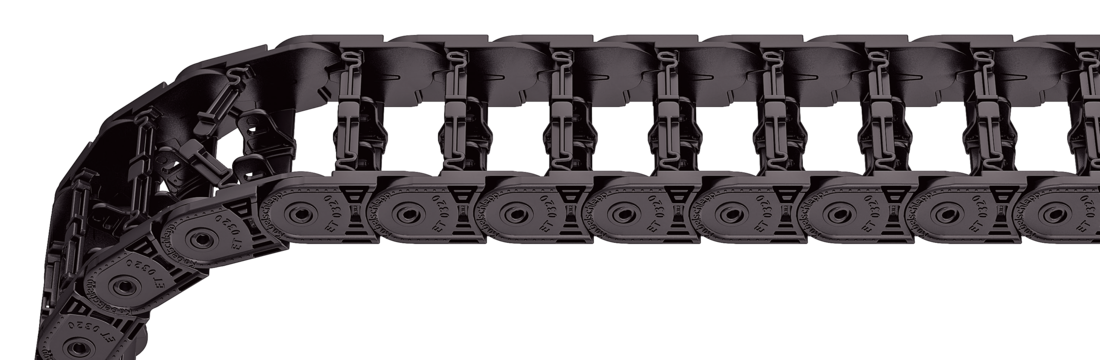

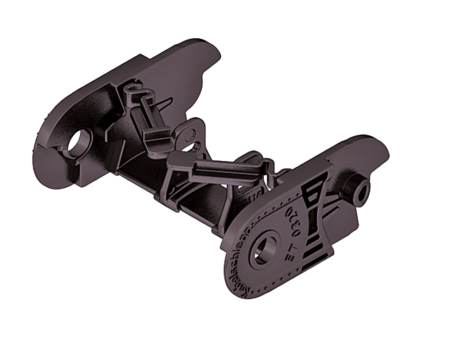

Stay variant 030 – with lamellae in the outer radius
Properties
Weight-optimised plastic frame with particularly high torsional rigidity.
Lamellae can be swivelled at any position on one side
Outside: swivelling.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi
15 - 65
mm
Dimensions
Dimensions
The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table">
<thead>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<th class="t"><strong>t</strong><br>[mm]</th>
<th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th>
<th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<!-- Bk und BEF für alle Ketten -->
<th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th>
</tr>
</thead>
<tbody>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<td class="t">32</td>
<td class="hi red">18</td>
<td class="hg">25.5</td>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<!-- Bk und BEF für alle Ketten -->
<td class="bk">Bi + 12</td>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="qk">0.35 – 0.45</td>
</tr>
</tbody>
</table>
Bi [mm]
15
25
38
50
65
KR [mm]
28
38
48
75
100
125
Order example
ET0320
Type
•
030
Stay variant
•
50
Bi [mm]
•
100
KR [mm]
-
1280
Lk [mm]
VS
Stay arrangement
Inner Distribution
Inner Distribution
Divider systems
The divider system is mounted on every 2nd chain link as a standard.
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
Divider system TS0 without height separation
Vers.
aT min [mm]
ax min [mm]
ac min [mm]
nT min
A
4
8
6
–
The dividers can be moved in the cross section.
Order example
TS0
Divider system
•
A
Version
•
3
nT
Please state the designation of the divider system (TS0), the version, and the number of dividers per cross section [nT]. You are welcome to add a sketch to your order.
End connectors
End connectors
Bi [mm]
BEF [mm]
nz
15
27
2
25
37
3
38
50
4
50
62
5
65
77
6
The end connectors are also available as an option without integrated strain relief. Please state when ordering.
Connection point F – fixed point M– driver
Connection type A – threaded joint outside (standard) I – threaded joint inside H – threaded joint, rotated 90° to the outside K – threaded joint, rotated 90° to the inside
