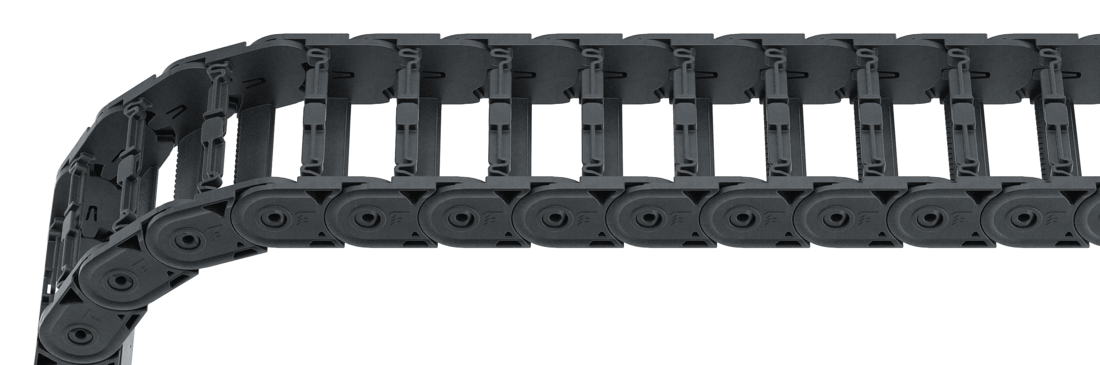

ET0250.030

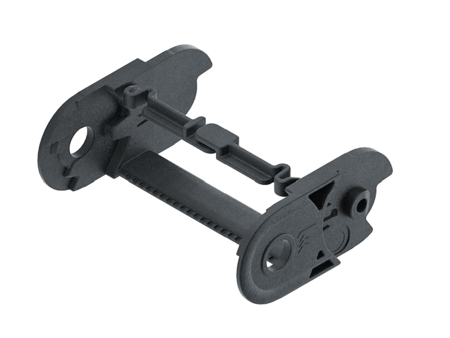

Stay variant 030 – with lamellae in the outer radius
Properties
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Lamellae can be swivelled at any position on one side
- Outside: swivelling.
Dimensions Dimensions
| Bi [mm] | |
|---|---|
| 30 | 50 |
| KR [mm] | |||||
|---|---|---|---|---|---|
| 28 | 38 | 45 | 60 | 75 | 100 |
Order example
Inner Distribution Inner Distribution
Divider systems
The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
For applications with lateral accelerations and applications with the cable carrier rotated by 90°, the dividers can easily be fixed on the stay through rotation. The arresting cams snap into the catch profiles in the covers (version B).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 3 | 6 | 4 | – | – |
| B | 3 | 6 | 4 | 2 | – |
Order example
Please state the designation of the divider system (TS0), the version, and the number of dividers per cross section [nT]. You are welcome to add a sketch to your order.
End connectors End connectors
| Bi [mm] | BEF [mm] | nz |
|---|---|---|
| 30 | 40 | 2 |
| 50 | 60 | 4 |
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside
