Strain relief combs

Properties

Higher fixing force than single-sided strain relief comb.
Uniform force transmission in push and pull direction.

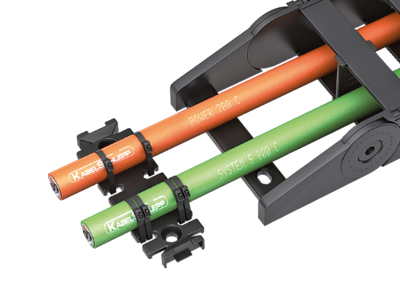

For separate strain relief or fastening of cables outside of the cable carrier – suitable for all cable carriers.
The strain relief combs are equipped with teeth on both sides. This allows secure fixing of each cable with two cable ties.

Secure fixing with two or four cable ties
Higher fixing force than single-sided strain relief combs
Uniform force transmission in push and pull direction
Minimized movement of cables and hoses

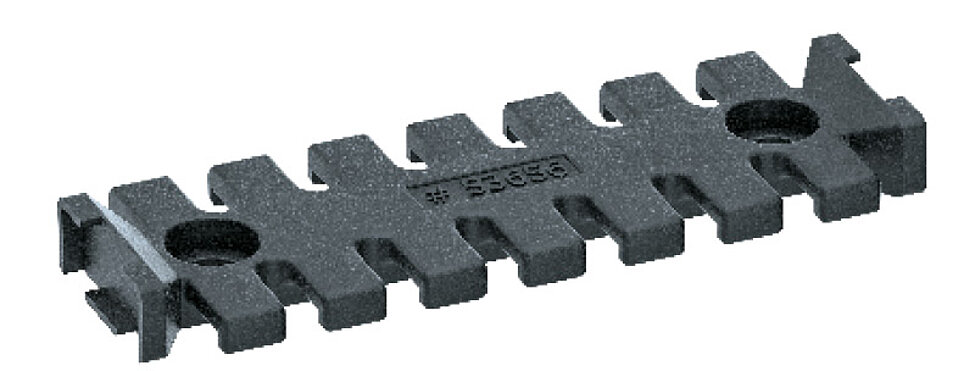

Strain relief comb with C-profile connections

Material no.	b₁ [mm]	b₄ [mm]	No. of teeth
53654	49	21	2 x 3
53655	74	46	2 x 5
53656	99	71	2 x 7
53657	124	96	2 x 9
53658	149	121	2 x 11
53659	174	146	2 x 13
76550	54	21	2 x 3
76551	79	46	2 x 5
76552	104	71	2 x 7
76553	129	96	2 x 9
76554	154	121	2 x 11
76555	179	146	2 x 13

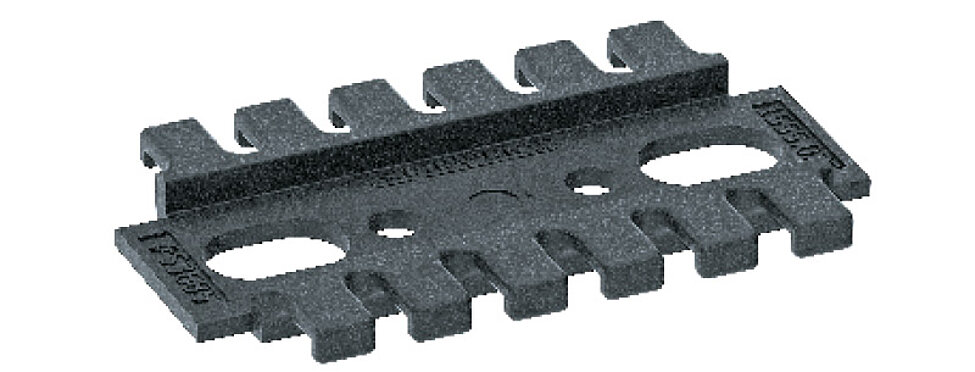

Strain relief comb

Material no.	b₁ [mm]	b₂ [mm]	b₄ [mm]	No. of teeth
53983	43.2	53	14	2 x 3
53684	60	53	14	2 x 4
57350	61	70	20	2 x 4

Material no.	b₁ [mm]	b₂ [mm]	b₄ [mm]	No. of teeth
53984	63.2	53	15.2	2 x 4
53985	83.2	53	35.2	2 x 6
53986	108.2	53	60.2	2 x 8
53685	85	53	25	2 x 6
53686	110	53	50	2 x 8
53687	135	53	75	2 x 10
53688	160	53	100	2 x 12
57351	86	70	20	2 x 6
57352	111	70	40	2 x 8
57354	136	70	65	2 x 10
57355	161	70	90	2 x 12
57356	186	70	115	2 x 14
57357	211	70	140	2 x 16
57358	236	70	165	2 x 18
57359	261	70	190	2 x 20

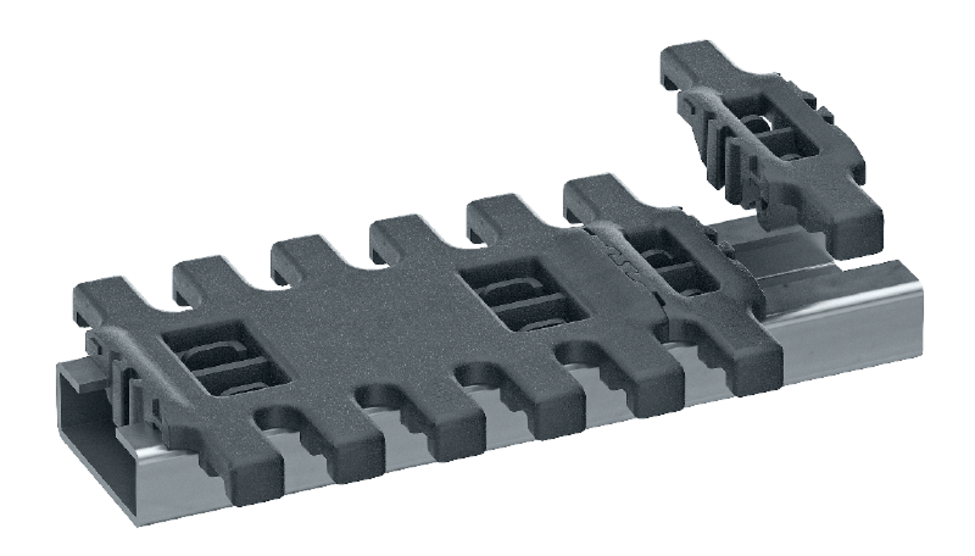

Variable strain relief comb for C-profiles

The variable strain relief combs can be combined with each other as desired in the 1-fold and 5-fold versions and clipped into the C-profiles #3931, #3934, #3935 and 3936 (see page Assembly profiles for strain reliefs).

Material no.	b₁ [mm]	b₂ [mm]	No. of teeth
3950	12.5	48	2 x 1
3951	62.5	48	2 x 5
