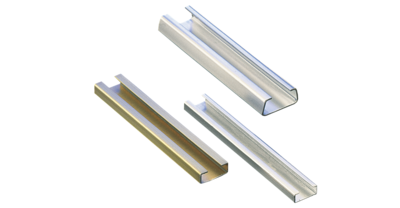

Assembly profiles

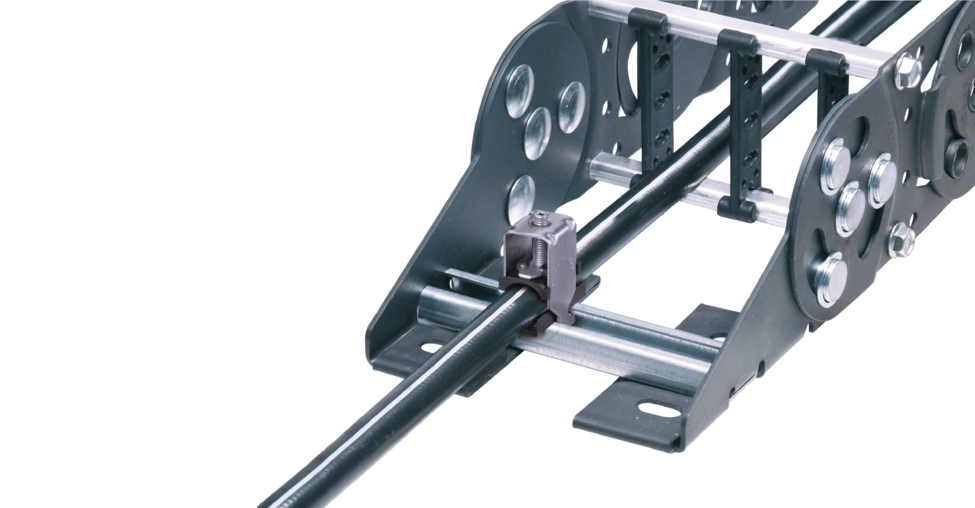

Assembly profiles for strain reliefs
- Assembly profiles for strain relief elements – for all commercially available clamps
- Length in 1 mm grid available

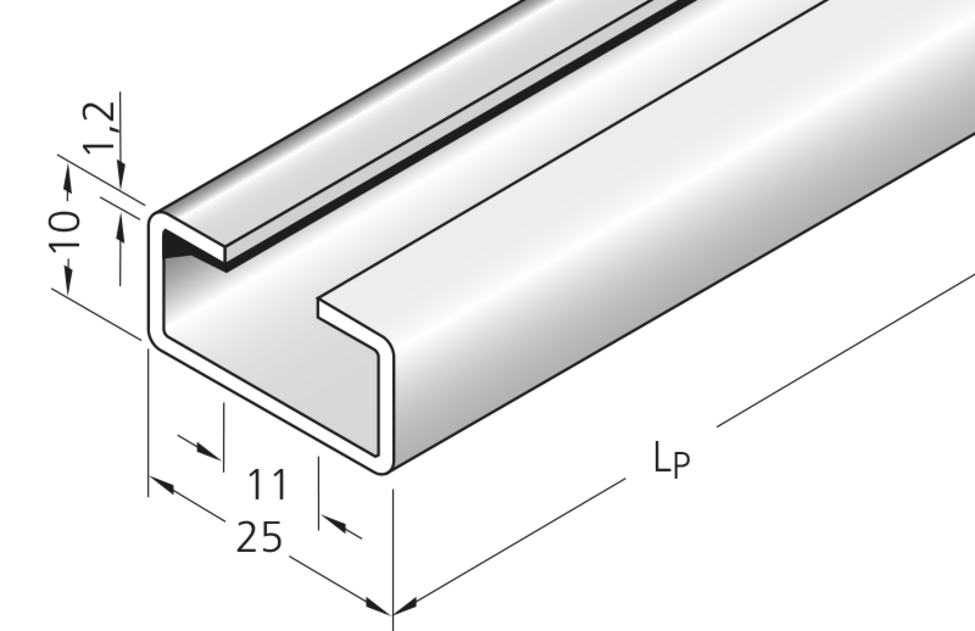

C-profile 25 x 10 mm
Suitable for all LineFix® clamps (slot width 11 mm),
LineFix® types see page LINEFix clamps®.
Material: Galvanized steel
Article no.: 3931
Attach profile with cheese-head screws M6 – DIN 6912

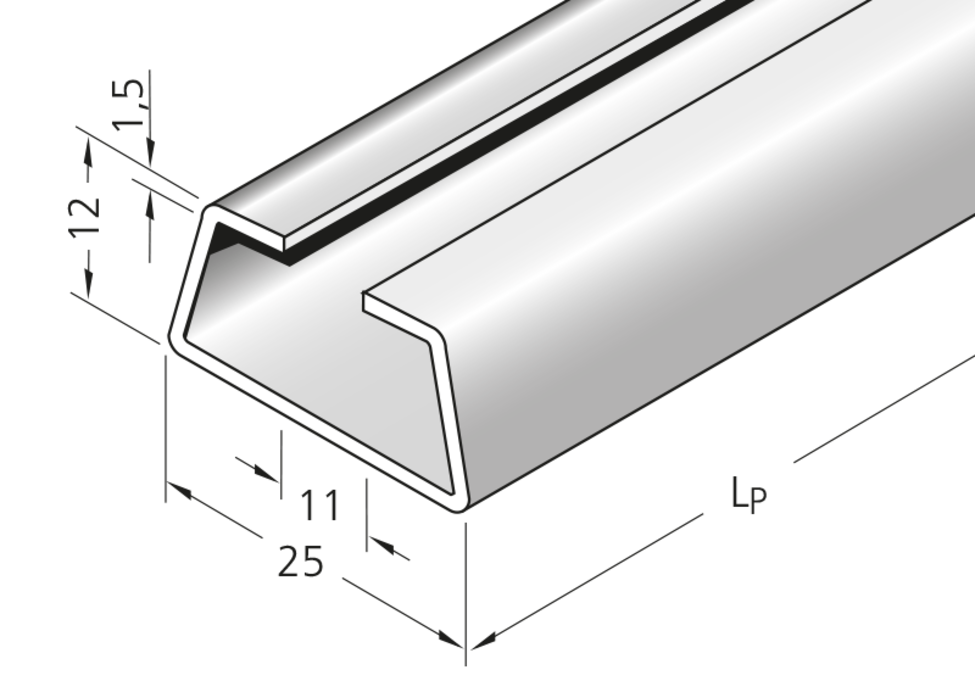

C-profile 25 x 12 mm
Suitable for all LineFix® clamps (slot width 11 mm),
LineFix® types see page LINEFix clamps®.
Material: Galvanized steel
Article no.: 3934
Attach profile with cheese-head screws M6 – DIN 6912

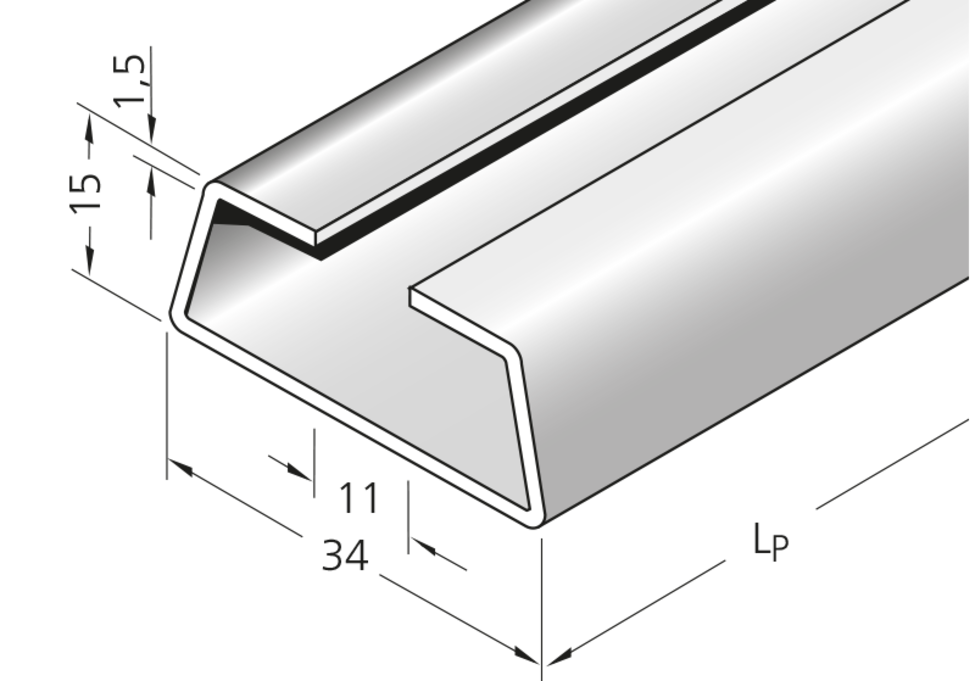

C-profile 34 x 15 mm
Suitable for all LineFix® clamps (slot width 11 mm),
LineFix® types see page LINEFix clamps®.
Material: Galvanized steel
Article no.: 3935
Material: Stainless steel (ER 1S)
Article no.: 3936
Attach profile with cheese-head screws M6 – DIN 6912

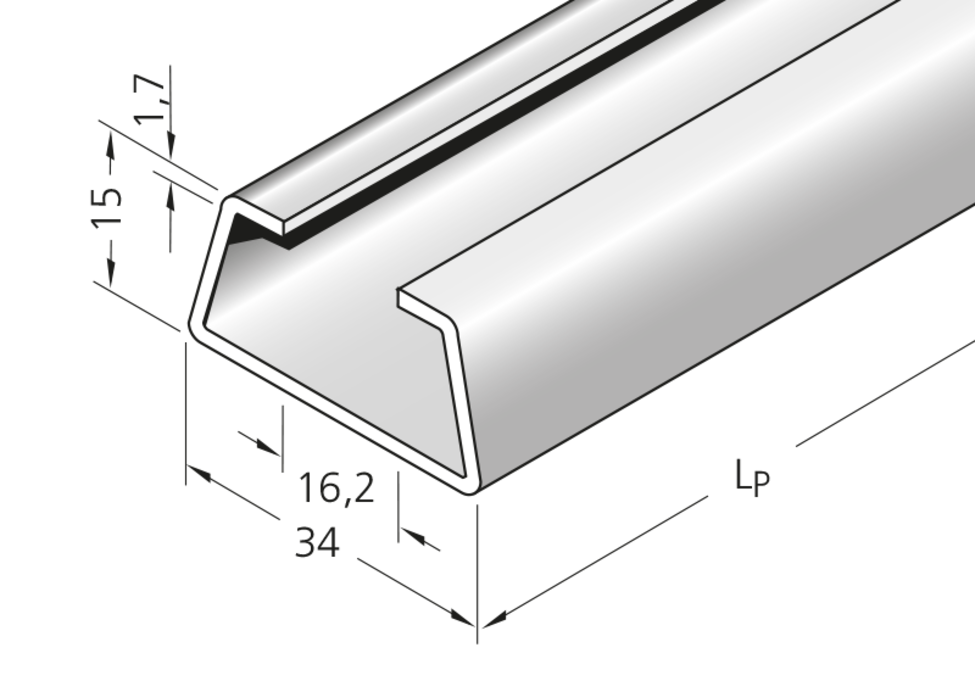

C-profile 34 x 15 mm
Suitable for all standard clamps.
(slot width 16 - 17 mm)
Material: Steel
Article no.: 3932
Attach profile with cheese-head screws M10 – DIN 6912
