LineFix® clamps
Properties
- Optimized foot geometry for secure seating in the C-profile.
- For one cable and two or three cables stacked.
- For C-profiles with 11 mm slot width.
- For C-profiles with 11 mm slot width.
- For one, two or three cables stacked.
- Optimized foot geometry for secure seating in the C-profile.
- High grade corrosion protection of the coated housing body through cathodic dip coating (CDC).
- Pan design with support ribs for secure fixing of the cables.
- Rounded design of the pan elements, gentle on the cables.
- Also available in stainless steel (ER 1S).

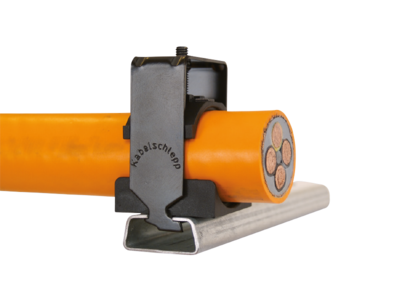

Secure seating and easy assembly

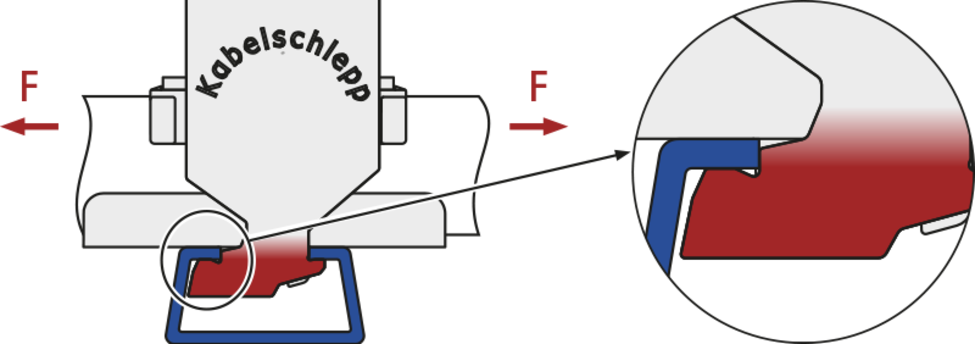

In practical operation, tensile forces occur in both cable directions. Clamps therefore have to transmit high tensile forces in the respective direction. In contrast to standard commercial clamps, the LineFix® foot geometry ensures transmission of extremely high tensile forces equally in both directions. The catch fixes the foot securely in the C-profile when it is bolted on, preventing the crossbar from tipping out during load application, regardless of the direction of forces or installation.

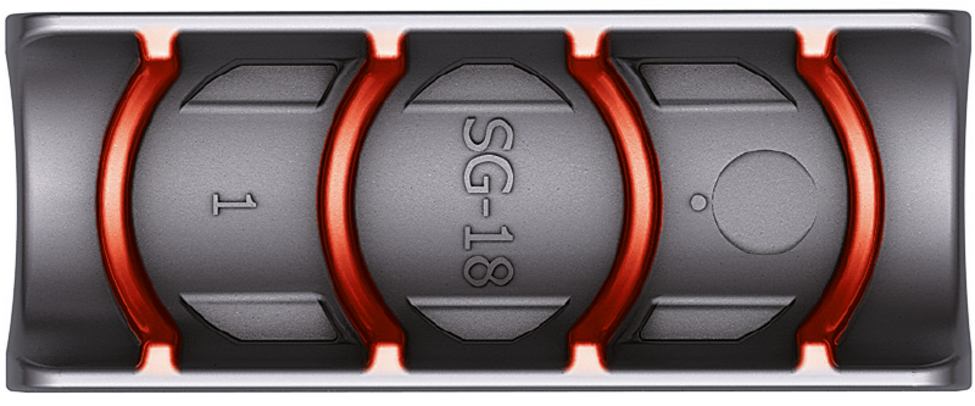

Pan design with optimized geometry.
The curved support ribs fix the cables very gently and reliably.

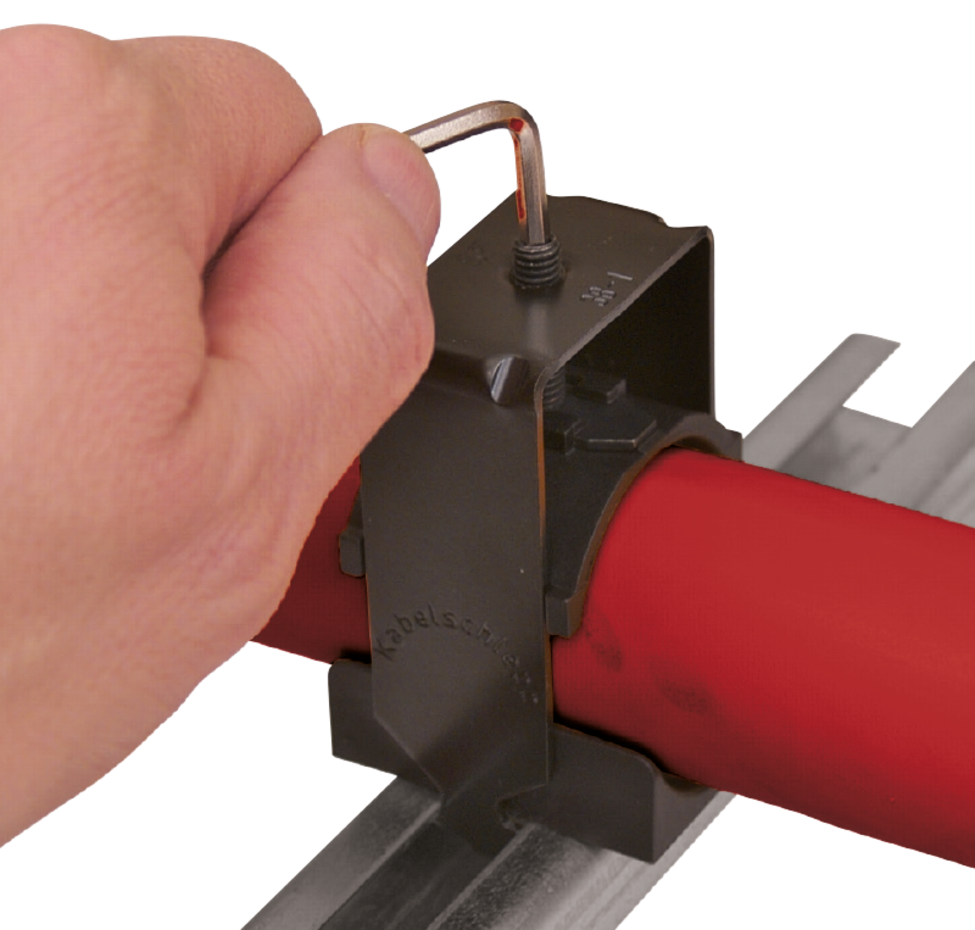

Easy installation even in tight packaging spaces through headless screw with hexagon socket.
Observe minimum height
For cable carriers with upper run gliding on the lower run, the system height of the strain relief must not be higher than the chain link height!

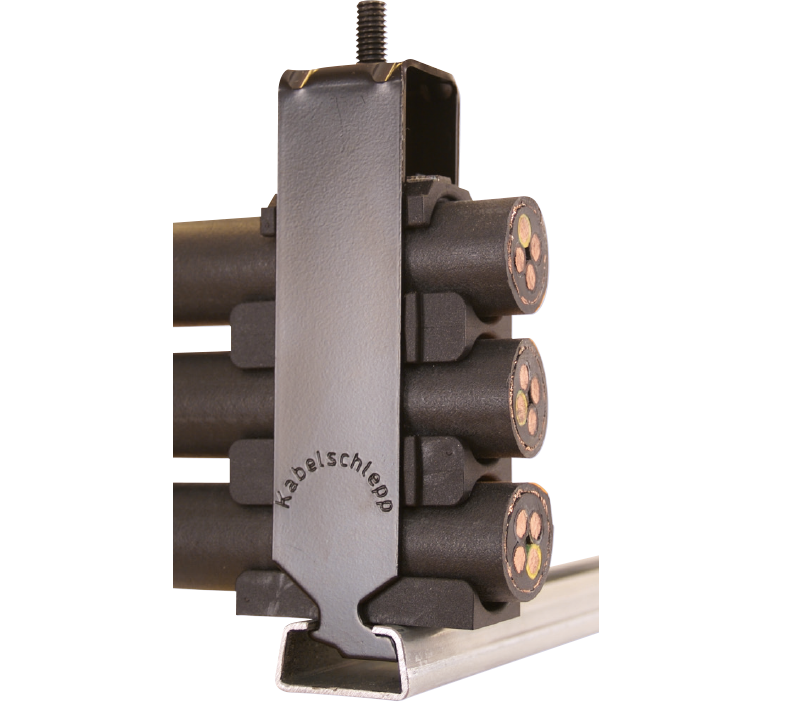

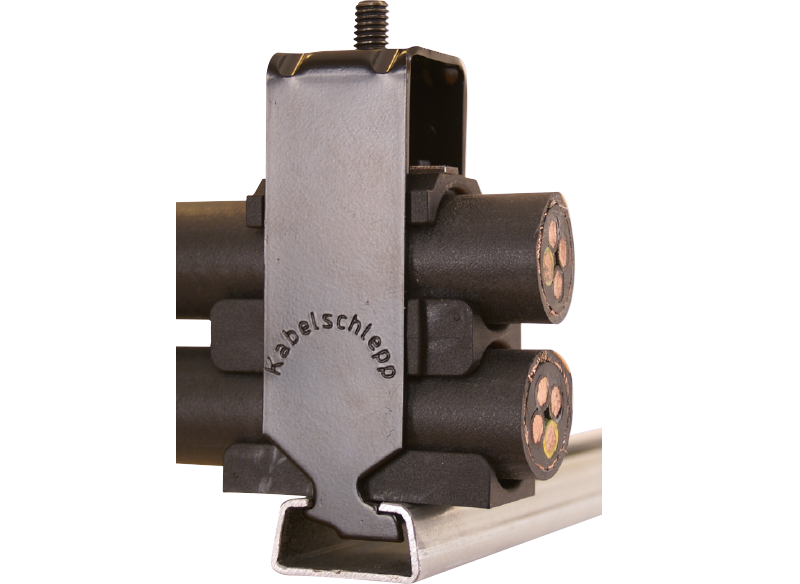

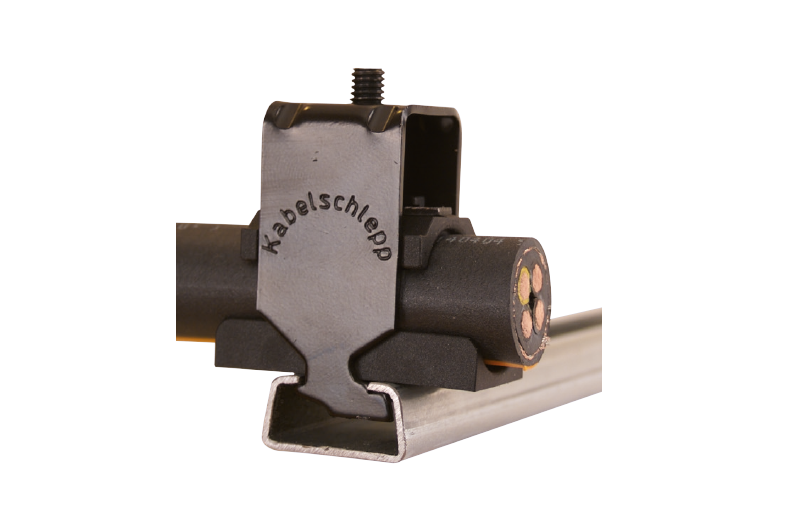

Dimensions
| Type | Designation | Material no. for one complete LineFix® | Material no. for one complete stainless steel LineFix® (ER 1S) | for cable Ø [mm] | No. of cables | Width [mm] | Total height with max. cable diam. incl. C-rail* [mm] |
|---|---|---|---|---|---|---|---|
| Single clamp | |||||||
 | LF 12-1 | 13630 | 13731 | > 6.0 – 12.0 | 1 | 16 | 55 |
LF 14-1 | 13631 | 13732 | > 12.0 – 14.0 | 1 | 18 | 52 | |
LF 16-1 | 13632 | 13733 | > 14.0 – 16.0 | 1 | 20 | 54 | |
LF 18-1 | 13633 | 13734 | > 16.0 – 18.0 | 1 | 22 | 56 | |
LF 20-1 | 13634 | 13735 | > 18.0 – 20.0 | 1 | 24 | 59 | |
LF 22-1 | 13635 | 13736 | > 20.0 – 22.0 | 1 | 26 | 61 | |
LF 26-1 | 13636 | 13737 | > 22.0 – 26.0 | 1 | 30 | 70 | |
LF 30-1 | 13637 | 13738 | > 26.0 – 30.0 | 1 | 34 | 74 | |
LF 34-1 | 13638 | 13739 | > 30.0 – 34.0 | 1 | 38 | 78 | |
LF 38-1 | 13639 | 13740 | > 34.0 – 38.0 | 1 | 42 | 82 | |
LF 42-1 | 13640 | 13741 | > 38.0 – 42.0 | 1 | 46 | 91 | |
| Double clamp | |||||||
 | LF 12-2 | 13641 | 13742 | > 6.0 – 12.0 | 2 | 16 | 73 |
LF 14-2 | 13642 | 17343 | > 12.0 – 14.0 | 2 | 18 | 74 | |
LF 16-2 | 13643 | 13744 | > 14.0 – 16.0 | 2 | 20 | 82 | |
LF 18-2 | 13644 | 13745 | > 16.0 – 18.0 | 2 | 22 | 86 | |
LF 20-2 | 13645 | 13746 | > 18.0 – 20.0 | 2 | 24 | 91 | |
LF 22-2 | 13646 | 13747 | > 20.0 – 22.0 | 2 | 26 | 95 | |
LF 26-2 | 13647 | 13748 | > 22.0 – 26.0 | 2 | 30 | 108 | |
LF 30-2 | 13648 | 13749 | > 26.0 – 30.0 | 2 | 34 | 121 | |
LF 34-2 | 13649 | 13750 | > 30.0 – 34.0 | 2 | 38 | 129 | |
| Triple clamp | |||||||
 | LF 12-3 | 13650 | 13751 | > 6.0 – 12.0 | 3 | 16 | 98 |
LF 14-3 | 13651 | 13752 | > 12.0 – 14.0 | 3 | 18 | 98 | |
LF 16-3 | 13652 | 13753 | > 14.0 – 16.0 | 3 | 20 | 105 | |
LF 18-3 | 13653 | 13754 | > 16.0 – 18.0 | 3 | 22 | 111 | |
LF 20-3 | 13654 | 13755 | > 18.0 – 20.0 | 3 | 24 | 118 | |
LF 22-3 | 13655 | 13756 | > 20.0 – 22.0 | 3 | 26 | 130 | |
* Item no. 3934
Maximum flexibility with combinable double jaws
The standard sets of LineFix® clamps in size LF/LFX 12 offer even more flexibility and mounting options due to the extension with the new double and counter jaws. Optimized for different cable diameters and individually combinable heights, almost all requirements can be implemented without any problems.

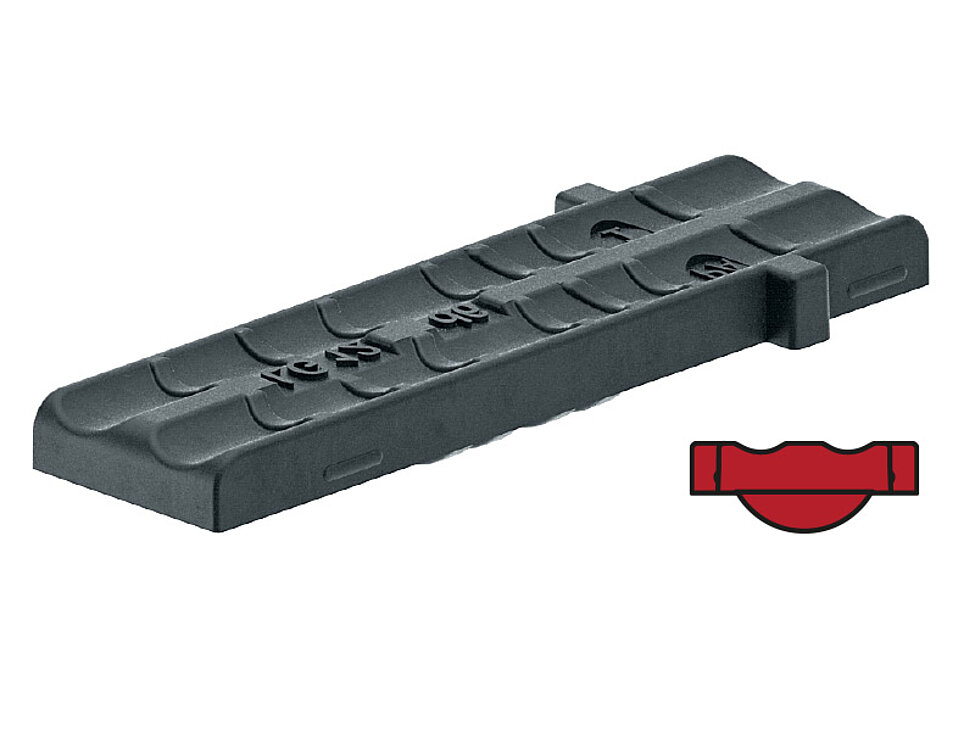

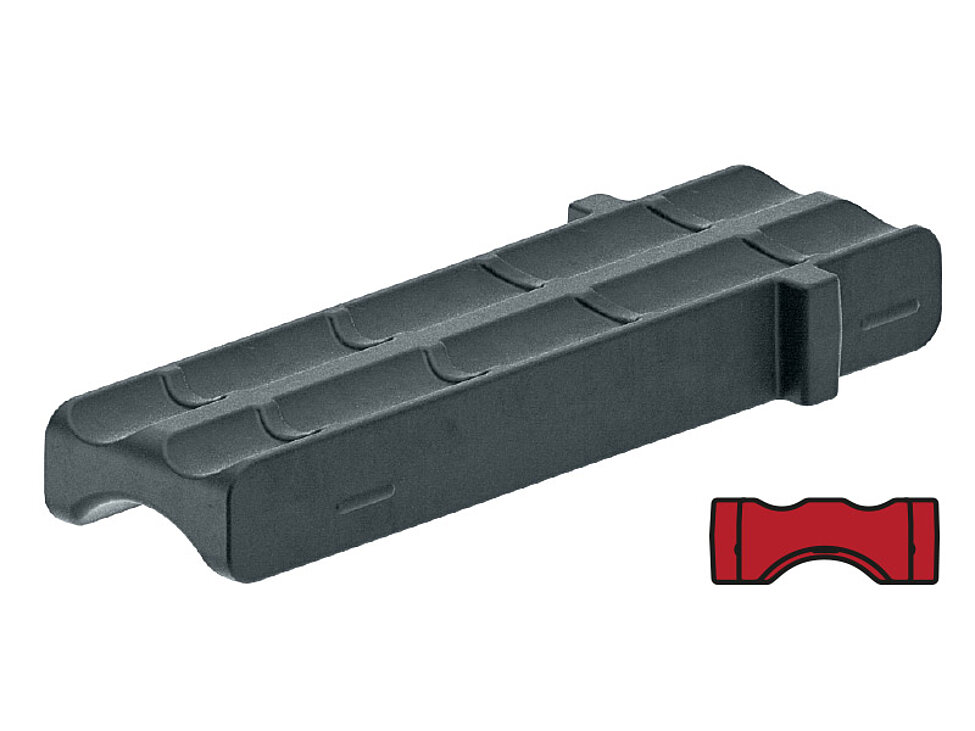

Double jaw
LD12 d6s12

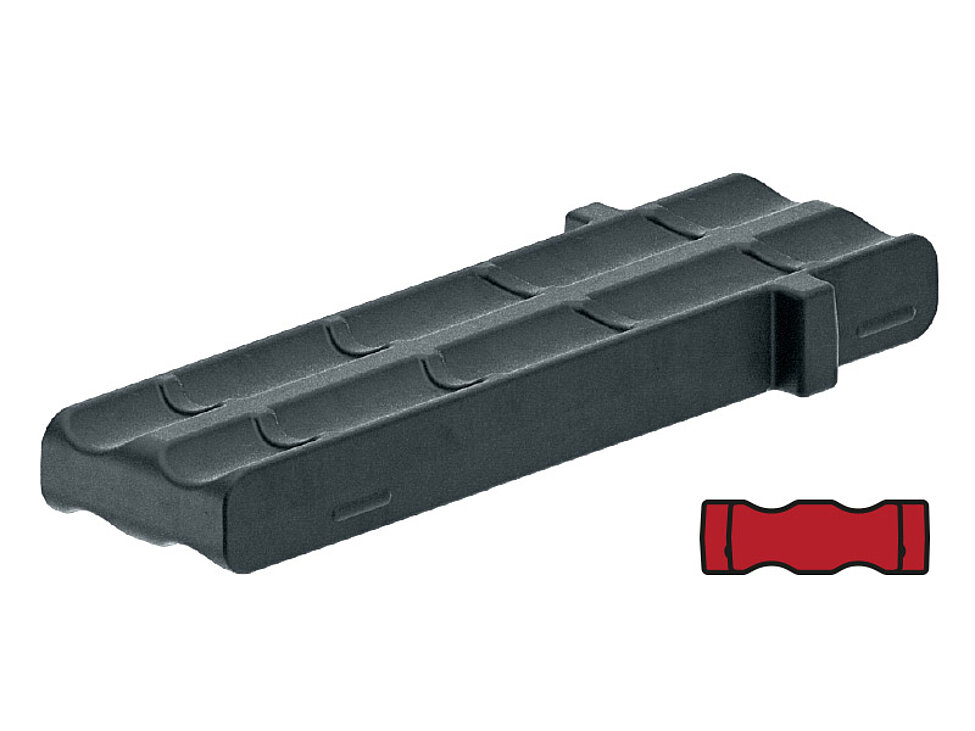

Double jaw
LD12 d6d6
Counter jaw
LG12 d6
Combination possibilities | Dimensions
| Material no. for one complete LineFix® | Material no. for one complete stainless steel LineFix® (ER 1S) | Cable diam. Ø A [mm] | Cable diam. Ø B [mm] | No. of cables | Width [mm] | Total height with max. cable diam. incl. C-profile* [mm] | |
|---|---|---|---|---|---|---|---|
1 | 13757 | 13773 | 3-6 (2x) | - | 2 | 16 | 51 |
| |||||||
2 | 13758 | 13774 | 3-6 (4x) | - | 4 | 16 | 70 |
3 | 13759 | 13775 | 3-6 (2x) | 6-12 (1x) | 3 | 16 | 74 |
4 | 13760 | 13776 | 3-6 (2x) | 6-12 (1x) | 3 | 16 | 70 |
| |||||||
5 | 13761 | 13777 | 3-6 (6x) | - | 6 | 16 | 89 |
6 | 13762 | 13778 | 3-6 (4x) | 6-12 (1x) | 5 | 16 | 94 |
7 | 13763 | 13779 | 3-6 (4x) | 6-12 (1x) | 5 | 16 | 94 |
8 | 13764 | 13780 | 3-6 (2x) | 6-12 (2x) | 4 | 16 | 98 |
| |||||||
9 | 13765 | 13781 | 3-6 (8x) | - | 8 | 16 | 98 |
10 | 13766 | 13782 | 3-6 (6x) | 6-12 (1x) | 7 | 16 | 103 |
11 | 13767 | 13783 | 3-6 (6x) | 6-12 (1x) | 7 | 16 | 103 |
12 | 13768 | 13784 | 3-6 (6x) | 6-12 (1x) | 7 | 16 | 103 |
13 | 13769 | 13785 | 3-6 (6x) | 6-12 (1x) | 7 | 16 | 98 |
14 | 13770 | 13786 | 3-6 (4x) | 6-12 (2x) | 6 | 16 | 103 |
15 | 13771 | 13787 | 3-6 (4x) | 6-12 (2x) | 6 | 16 | 103 |
16 | 13772 | 13788 | 3-6 (4x) | 6-12 (2x) | 6 | 16 | 102 |
* Art. no. 3934
