P0400 GS02 (double-sided)
Stay variant 010 – with lamellae in the outer or outer and inner radius
Properties
- Belt with clip-on side parts.
- Double-sided: for pressing in.
Stay arrangement on each chain link (VS: fully-stayed)
Pictographs
Inner height
Outer height
Inner width
Outer width
Inner width (Bi) in x mm increments
Pitch
Bending radius
Long travel length
Travel length unsupported
Travel length gliding
High additional load
High travel acceleration
High travel velocity
Stay arrangement on every 2nd chain link
Stay arrangement on every chain link
Cannot be opened
Opens outward
Opens inward
Opens inward/outward
Covered cable carrier
Sliding dividers
Fixable dividers
Fixable dividers in x mm grid
Height separation possible
Height separation in 1 mm increments
Hole stay available
Guide channel required
Strain relief
Clean room suitable
Quiet running/low noise
Sold by the meter
Low weight
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Resistant to hot chips
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)
Dimensions
hi
[mm]
|
hG
[mm]
|
Bi
[mm]
|
Bk
[mm]
|
qk
[kg/m]
|
|---|---|---|---|---|
| 21.5 | 53.5 | 50 | Bi + 5 | 0.336 |
Standard colors

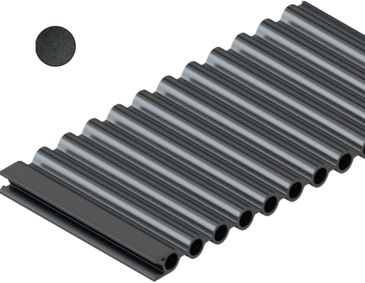

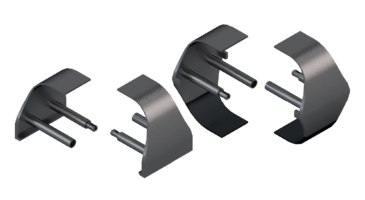

Black (RAL 9005)
P0400GS01 Mat. no. 75972*
P0400GS02 Mat. no. 75981*

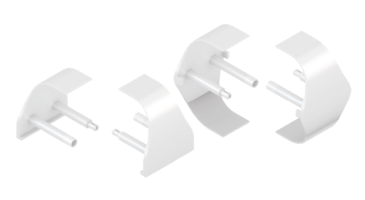

White (RAL 9010)
P0400GS01 Mat. no. 75980*
P0400GS02 Mat. no. 75989*

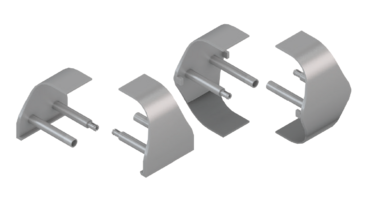

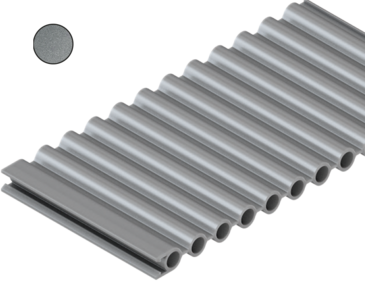

Silver-grey (RAL 9023)
P0400GS01 Mat. no. 75976*
P0400GS02 Mat. no. 75985*
For bulk buyers, the color variants of the belt, the side parts and the connections can be individually
combined on request. Colored items may have color differences.
End connectors
Combination options for end connectors
Depending on the design of your office furniture, different combination options are possible for the end connectors. They can be attached underneath table tops/cable conduits, to round or square table legs or to the floor.
All connections and cable carriers can be combined with each other and are available in the colour variants silver-grey, black and white.
End connectors
Connection A – angled for table top
Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.
Color variants
- Black
Mat. no. 75739* - White
Mat. no. 75884* - Silver-gray
Mat. no. 75876*
*SU = 50 pieces
Fixing variant
Connection B – oval for table top
Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.
Color variants
- Black
Mat. no. 75740* - White
Mat. no. 75885* - Silver-gray
Mat. no. 75877*
*SU = 50 pieces
Fixing variant
Also available as magnetic version (Connector N)
Connection C/E – for flat table frame
Connection for installing the cable routing on a square table frame. Fixing with integrated magnets, screws or cable ties.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
(E) Mat-Nr. 75741*
(C) Mat. no. 75742* - White
(E) Mat.-Nr. 75886*
(C) Mat. no. 75887* - Silver-gray
(E) Mat.-Nr. 75878*
(C) Mat. no. 75879*
*SU = 50 pieces
Fixing variant
Connection D/F – for round table frame
Connection for installing the cable routing on a table frame with 70 mm diameter. Fixing with integrated magnets, screws or cable ties.
Color variants
- Black
(F) Mat. no. 75744*
(D) Mat. no. 75743* - White
(F) Mat. no. 75888*
(D) Mat. no. 75889* - Silver-gray
(F) Mat. no. 75880*
(D) Mat. no. 75881*
*SU = 50 pieces
Fixing variant
Connection G – floor connection
Floor connection for a clean transition of the cable routing to the floor. Individual colors and designs on request.
Color variants
- Black
Mat. no. 75745* - White
Mat. no. 75890* - Silver-gray
Mat. no. 75882*
*SU = 50 pieces
Connection H – for table base
Connection for installing the cable routing on a table base.
Fixing by clipping.
Color variants
- Black
Mat. no. 75992* - White
Mat. no. 75994* - Silver-gray
Mat. no. 75993*
*SU = 50 pieces
Fixing variant
Connection I/J – for flat table base
Connection for installing the cable routing on a square table frame.
Fixing with integrated magnets or screws.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
(I) Mat. no. 75940*
(J) Mat. no. 75634* - White
(I) Mat. no. 75941*
(J) Mat. no. 75635* - Silver-gray
(I) Mat. no. 75942*
(J) Mat. no. 75636*
*SU = 50 pieces
Fixing variant
Connection K/L – for round table frame
Connection for installing the cable routing on a table frame with 70 mm diameter.
Fixing with integrated magnets or screws.
Individual diameters on request.
Color variants
- Black
(K) Mat. no. 75943*
(L) Mat. no. 75647* - White
(K) Mat. no. 75944*
(L) Mat. no. 75648* - Silver-gray
(K) Mat. no. 75945*
(L) Mat. no. 75649*
*SU = 50 pieces
Fixing variant
Connection M – for profiles flat
Connection for installing the cable routing on aluminum profiles rectangular.
Fixing via integrated clip.
Individual profile cross-section on request.
Color variants
- Black
Mat. no. 75937* - White
Mat. no. 75938* - Silver-gray
Mat. no. 75939*
*SU = 50 pieces
Fixing variant
The assembly depends on the shape of the aluminum profile. Please contact us – we are happy to advise you
Connection N – oval for table top
Table connection for installing the cable routing underneath the table top or on a cable conduit via integrated magnets.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
Mat. no. 75937* - White
Mat. no. 75938* - Silver-gray
Mat. no. 75939*
*SU = 50 pieces
Fixing variant
Side parts „Clip“ – Fixing kit for connection on both sides
Connection for installing the cable routing and attachments such as connector strips, adapters and much more. Fixing with integrated magnets or screws.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
Mat. no. 75812* - White
Mat. no. 75814* - Silver-gray
Mat. no. 75813*
*Length = 480 mm
Fixing variant
Connection A – angled for table top
Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.
Color variants
- Black
Mat. no. 75739* - White
Mat. no. 75884* - Silver-gray
Mat. no. 75876*
*SU = 50 pieces
Fixing variant
Connection B – oval for table top
Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.
Color variants
- Black
Mat. no. 75740* - White
Mat. no. 75885* - Silver-gray
Mat. no. 75877*
*SU = 50 pieces
Fixing variant
Also available as magnetic version (Connector N)
Connection G – floor connection
Floor connection for a clean transition of the cable routing to the floor. Individual colors and designs on request.
Color variants
- Black
Mat. no. 75745* - White
Mat. no. 75890* - Silver-gray
Mat. no. 75882*
*SU = 50 pieces
Connection N – oval for table top
Table connection for installing the cable routing underneath the table top or on a cable conduit via integrated magnets.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
Mat. no. 75937* - White
Mat. no. 75938* - Silver-gray
Mat. no. 75939*
*SU = 50 pieces
Fixing variant
Connection A – angled for table top
Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.
Color variants
- Black
Mat. no. 75739* - White
Mat. no. 75884* - Silver-gray
Mat. no. 75876*
*SU = 50 pieces
Fixing variant
Connection B – oval for table top
Table connection for screw-fixing the cable routing underneath the table top or on a cable conduit.
Color variants
- Black
Mat. no. 75740* - White
Mat. no. 75885* - Silver-gray
Mat. no. 75877*
*SU = 50 pieces
Fixing variant
Also available as magnetic version (Connector N)
Connection C/E – for flat table frame
Connection for installing the cable routing on a square table frame. Fixing with integrated magnets, screws or cable ties.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
(E) Mat-Nr. 75741*
(C) Mat. no. 75742* - White
(E) Mat.-Nr. 75886*
(C) Mat. no. 75887* - Silver-gray
(E) Mat.-Nr. 75878*
(C) Mat. no. 75879*
*SU = 50 pieces
Fixing variant
Connection D/F – for round table frame
Connection for installing the cable routing on a table frame with 70 mm diameter. Fixing with integrated magnets, screws or cable ties.
Color variants
- Black
(F) Mat. no. 75744*
(D) Mat. no. 75743* - White
(F) Mat. no. 75888*
(D) Mat. no. 75889* - Silver-gray
(F) Mat. no. 75880*
(D) Mat. no. 75881*
*SU = 50 pieces
Fixing variant
Connection G – floor connection
Floor connection for a clean transition of the cable routing to the floor. Individual colors and designs on request.
Color variants
- Black
Mat. no. 75745* - White
Mat. no. 75890* - Silver-gray
Mat. no. 75882*
*SU = 50 pieces
Connection H – for table base
Connection for installing the cable routing on a table base.
Fixing by clipping.
Color variants
- Black
Mat. no. 75992* - White
Mat. no. 75994* - Silver-gray
Mat. no. 75993*
*SU = 50 pieces
Fixing variant
Connection I/J – for flat table base
Connection for installing the cable routing on a square table frame.
Fixing with integrated magnets or screws.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
(I) Mat. no. 75940*
(J) Mat. no. 75634* - White
(I) Mat. no. 75941*
(J) Mat. no. 75635* - Silver-gray
(I) Mat. no. 75942*
(J) Mat. no. 75636*
*SU = 50 pieces
Fixing variant
Connection K/L – for round table frame
Connection for installing the cable routing on a table frame with 70 mm diameter.
Fixing with integrated magnets or screws.
Individual diameters on request.
Color variants
- Black
(K) Mat. no. 75943*
(L) Mat. no. 75647* - White
(K) Mat. no. 75944*
(L) Mat. no. 75648* - Silver-gray
(K) Mat. no. 75945*
(L) Mat. no. 75649*
*SU = 50 pieces
Fixing variant
Connection M – for profiles flat
Connection for installing the cable routing on aluminum profiles rectangular.
Fixing via integrated clip.
Individual profile cross-section on request.
Color variants
- Black
Mat. no. 75937* - White
Mat. no. 75938* - Silver-gray
Mat. no. 75939*
*SU = 50 pieces
Fixing variant
The assembly depends on the shape of the aluminum profile. Please contact us – we are happy to advise you
Connection N – oval for table top
Table connection for installing the cable routing underneath the table top or on a cable conduit via integrated magnets.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
Mat. no. 75937* - White
Mat. no. 75938* - Silver-gray
Mat. no. 75939*
*SU = 50 pieces
Fixing variant
Side parts „Clip“ – Fixing kit for connection on both sides
Connection for installing the cable routing and attachments such as connector strips, adapters and much more. Fixing with integrated magnets or screws.
Self-adhesive counterholder available for non-magnetic surfaces!
Color variants
- Black
Mat. no. 75812* - White
Mat. no. 75814* - Silver-gray
Mat. no. 75813*
*Length = 480 mm
Fixing variant
Order
| Standard sets for non-height adjustable tables (standard work stations) | Color | Order no. Set |
|---|---|---|
Standard set Protum Office P0400GS02 for standard work station for double-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition |
black
| 75960 |
Standard set Protum Office P0400GS02 for standard work station for double-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition |
white
| 75962 |
Standard set Protum Office P0400GS02 for standard work station for double-sided cable laying, total length 815 mm incl. 1 connection B and 1 connection G for installation underneath a table top and the floor transition |
silver-gray
| 75961 |
| Standard sets for attaching a power strip | Color | Order no. Set |
|---|---|---|
Standard set of “Clip” side parts for attaching a power strip. |
Black
| 75835 |
Standard set of “Clip” side parts for attaching a power strip. |
White
| 75837 |
Standard set of “Clip” side parts for attaching a power strip. |
Silver-gray
| 75836 |
| Standard sets for cable routing P0400GS02 | Color | Order no. Set |
|---|---|---|
Standard set for cable routing Protum Office P0400GS02, inner cross section 2 x (50 x 21,5 mm), total length 960 mm. |
White
| 75989 |
Standard set for cable routing Protum Office P0400GS02, inner cross section 2 x (50 x 21,5 mm), total length 960 mm. |
Silver-gray
| 75985 |
Standard set for cable routing Protum Office P0400GS02, inner cross section 2 x (50 x 21,5 mm), total length 960 mm. |
Black
| 75981 |
