Coaxial cables

Hi-flex Coax cables for use in cable carriers

  • Transmission of video and audio signals

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands
  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands
  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

Coaxial cables

KOAX 700 C 50 Ohm

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 2 Million
Travel length up to 50 m
Stranding Single core
more details

KOAX 700 C 75 Ohm

Outer jacket material PUR
Shield Shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 2 Million
Travel length up to 50 m
Stranding Single core
more details

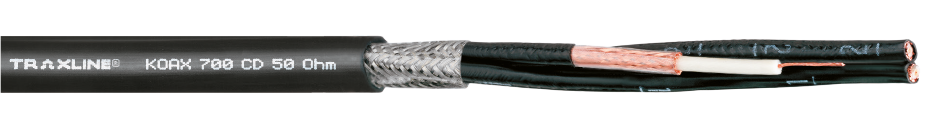

KOAX 700 CD 50 Ohm

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 2 Million
Travel length up to 50 m
Stranding Layer stranded
more details

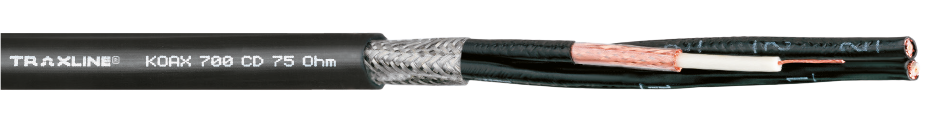

KOAX 700 CD 75 Ohm

Outer jacket material PUR
Shield Double shielded
Flexibility hi-flex
Demands high demanding
Up to motion cycles 2 Million
Travel length up to 50 m
Stranding Single core
more details
Type Outer jacket material Shield Flexibility Demands Up to motion cycles Travel length up to Stranding
KOAX 700 C 50 Ohm PUR Shielded hi-flex high demanding 2 Million 50 m Single core
KOAX 700 C 75 Ohm PUR Shielded hi-flex high demanding 2 Million 50 m Single core
KOAX 700 CD 50 Ohm PUR Double shielded hi-flex high demanding 2 Million 50 m Layer stranded
KOAX 700 CD 75 Ohm PUR Double shielded hi-flex high demanding 2 Million 50 m Single core

Matching with

Cable carriers

Whether cable carriers made of steel, plastic or hybrid product – at KABELSCHLEPP® the conditions of your application determine the material. After assessing your application parameters we will recommend a product that represents the optimum in terms of load capacity, durability and longevity. The material itself is secondary. You can choose from our product portfolio of thousands of types between standard widths and individual millimeter grids – just as required.

Cable carriers❯
Ready-to-connect cable carrier systems – TOTALTRAX®

From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP® systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.

Ready-to-connect cable carrier systems❯
Accessories – Strain relief devices

For optimum placement with dynamic use of cables.

Strain relief devices❯
