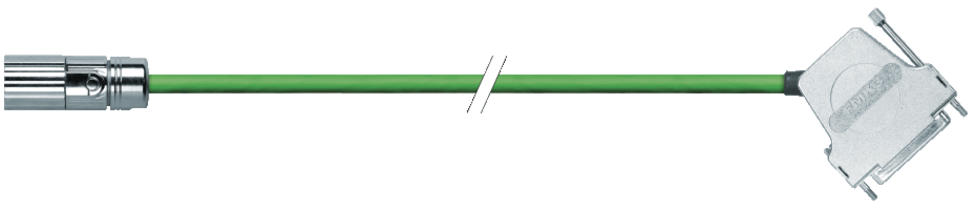

Signal cables according to SEW

Approvals:
cURus,
based on VDE,
REACH/RoHS II

SEW Assembling	Core number x Cross-section [mm²]	max. ∅ [mm]	Connection Motor	Connection Controler	Cable weight [kg/m]	Copper weight [kg/m]
0199 3194	(5 x 2 x 0.25²)	9.6	1 ÜWM	D-SUB	0.128	0.055
1332 4551	(6 x 2 x 0.25²)	9.6	1 ÜWM	D-SUB	0.147	0.058
1332 7437	(5 x 2 x 0.25²)	9.6	1 ÜWM	D-SUB	0.128	0.055
1362 3206	(5 x 2 x 0.25²)	9.6	1 ÜWM	D-SUB	0.128	0.055

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

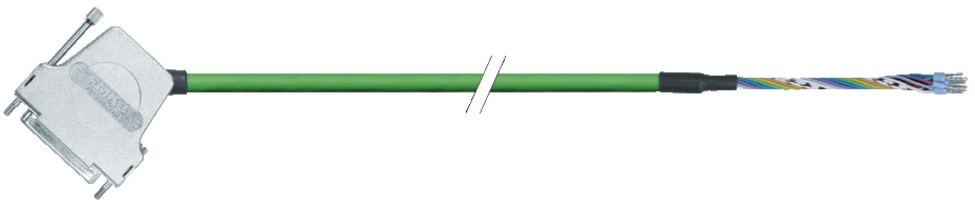

SEW Assembling	Core number x Cross-section [mm²]	max. ∅ [mm]	Connection Motor	Connection Controler	Cable weight [kg/m]	Copper weight [kg/m]
0199 5901	(5 x 2 x 0.25²)	9.6	D-SUB	AEH	0.128	0.055
1332 4543	(6 x 2 x 0.25²)	9.9	D-SUB	AEH	0.147	0.058
1332 7453	(5 x 2 x 0.25²)	9.6	D-SUB	AEH	0.128	0.055
1332 7631	(5 x 2 x 0.25²)	9.6	D-SUB	AEH	0.128	0.055
1332 7666	(6 x 2 x 0.25²)	9.9	D-SUB	AEH	0.147	0.058
1332 8441	(5 x 2 x 0.25²)	9.6	D-SUB	AEH	0.128	0.055
1362 2048	(6 x 2 x 0.25²)	9.9	D-SUB	AEH	0.147	0.058

Additional types upon request.

Varying parameters possible.
AEH = end sleeve

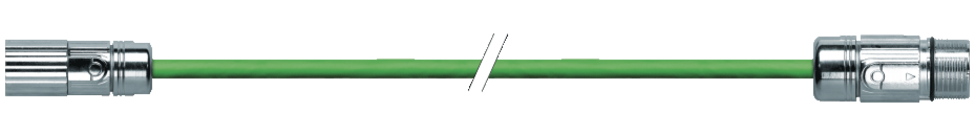

Signal extension cables assembled to SEW

SEW Assembling	Core number x Cross-section [mm²]	max. ∅ [mm]	Connection Motor	Connection Controler	Cable weight [kg/m]	Copper weight [kg/m]
0199 5405	(6 x 2 x 0.25²)	9.6	1 ÜWM	1 ÜWM	0.147	0.058
0199 5413	(5 x 2 x 0.25²)	9.9	1 ÜWM	1 ÜWM	0.128	0.055
1333 3879	(6 x 2 x 0.25²)	9.6	1 ÜWM	1 ÜWM	0.147	0.058
1362 1971	(6 x 2 x 0.25²)	9.6	1 ÜWM	1 ÜWM	0.147	0.058

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

Signal cables assembled to SEW
