Signal cables assembled to LENZE
Shielded continuous bending hi-flex cables
Properties of the cables
- UV-resistant
- CFC-free
- Minimum bend radius 7.5 x Ø to 10 x Ø
- Halogen-free
- Flame-retardant
Approvals:
cURus,
based on VDE,
REACH/RoHS II
Signal basic cables assembled to LENZE
LENZE | Core number x | max. ∅ | Connection | Connection | Cable weight | Copper weight |
|---|---|---|---|---|---|---|
EYF0020AXXXXF01S01 | 3 x (2 x 0.14²) + (3 x 0.14²) | 10.9 | 1 ÜWM | D-SUB | 0.127 | 0.040 |
EYF0020AXXXXF01S02 | 3 x (2 x 0.14²) + (3 x 0.14²) | 10.9 | 1 ÜWM | D-SUB | 0.127 | 0.040 |
EYF0020AXXXXF05S01 | 3 x (2 x 0.14²) + (3 x 0.14²) | 10.9 | 1 Speedtec | D-SUB | 0.127 | 0.040 |
EYF0020AXXXXF05S02 | 3 x (2 x 0.14²) + (3 x 0.14²) | 10.9 | 1 Speedtec | D-SUB | 0.127 | 0.040 |
Additional types upon request.
Varying parameters possible.
ÜWM = coupling nut with full thread

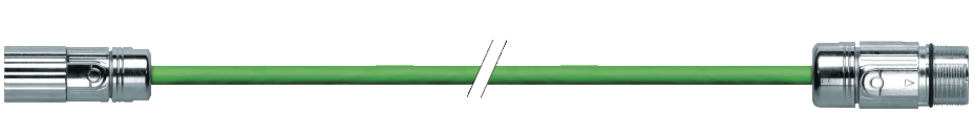

Signal extension cables assembled to LENZE
LENZE | Core number x | max. ∅ | Connection | Connection | Cable weight | Copper weight |
|---|---|---|---|---|---|---|
EYF0020VXXXXF01G01 | 3 x (2 x 0.14²) + (3 x 0.14²) | 10.9 | 1 ÜWM | 1 ÜWM | 0.127 | 0.040 |
EYF0020VXXXXF01G06 | 3 x (2 x 0.14²) + (3 x 0.14²) | 10.9 | 1 ÜWM | 1 Speedtec | 0.127 | 0.040 |
EYF0020VXXXXF05G06 | 3 x (2 x 0.14²) + (3 x 0.14²) | 10.9 | 1 Speedtec | 1 Speedtec | 0.127 | 0.040 |
Additional types upon request.
Varying parameters possible.
ÜWM = coupling nut with full thread
