Power cables assembled to SIEMENS®

Shielded continuous bending hi-flex cables

Properties of the cables

  • UV-resistant
  • CFC-free
  • Minimum bend radius 7.5 x Ø
  • Halogen-free
  • Flame-retardant

Approvals:
cURus,
based on VDE,
REACH/RoHS II

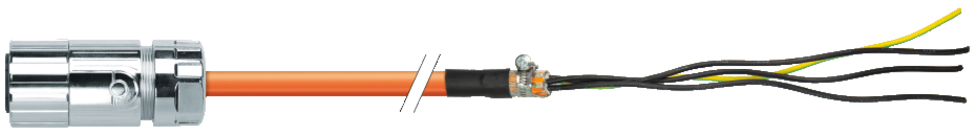

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5CG01

(4 G 1.5²)

9.5

1 ÜWM

open end

0.136

0.080

6FX8002-5CG11

(4 G 2.5²)

11.0

1 ÜWM

open end

0.198

0.120

6FX8002-5CG10

(4 G 1.5²)

9.5

1 Speedtec

open end

0.136

0.080

6FX8002-5CG12

(4 G 2.5²)

11.0

1 Speedtec

open end

0.198

0.120

6FX8002-5CG21

(4 G 1.5²)

9.5

1.5 ÜWM

open end

0.136

0.080

6FX8002-5CG31

(4 G 2.5²)

11.0

1.5 ÜWM

open end

0.198

0.120

6FX8002-5CG41

(4 G 4²)

12.3

1.5 ÜWM

open end

0.273

0.195

6FX8002-5CG51

(4 G 6²)

14.9

1.5 ÜWM

open end

0.393

0.296

6FX8002-5CG61

(4 G 10²)

18.2

1.5 ÜWM

open end

0.616

0.445

6FX8002-5CG22

(4 G 1.5²)

9.5

1.5 Speedtec

open end

0.136

0.080

6FX8002-5CG32

(4 G 2.5²)

11.0

1.5 Speedtec

open end

0.198

0.120

6FX8002-5CG42

(4 G 4²)

12.3

1.5 Speedtec

open end

0.273

0.195

6FX8002-5CG52

(4 G 6²)

14.9

1.5 Speedtec

open end

0.393

0.296

6FX8002-5CG62

(4 G 10²)

18.2

1.5 Speedtec

open end

0.616

0.445

6FX8002-5CG13

(4 G 10²)

18.2

3 ÜWM

open end

0.616

0.445

6FX8002-5CG23

(4 G 16²)

22.3

3 ÜWM

open end

0.949

0.730

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

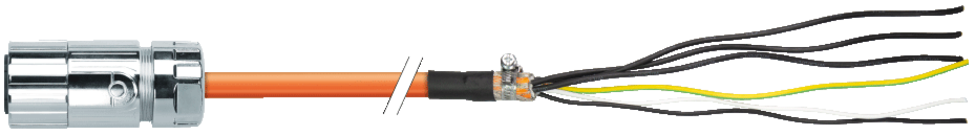

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5DG01

(4 G 1.5² + (2 x 1.5²))

12

1 ÜWM

open end

0.221

0.136

6FX8002-5DG11

(4 G 2.5² + (2 x 1.5²))

13.8

1 ÜWM

open end

0.396

0.187

6FX8002-5DG10

(4 G 1.5² + (2 x 1.5²))

12.0

1 Speedtec

open end

0.221

0.136.

6FX8002-5DG12

(4 G 2.5² + (2 x 1.5²))

13.8

1 Speedtec

open end

0.285

0.187

6FX8002-5DG21

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 ÜWM

open end

0.221

0.136

6FX8002-5DG31

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 ÜWM

open end

0.285

0.187

6FX8002-5DG41

(4 G 4² + (2 x 1.5²))

15.2

1.5 ÜWM

open end

0.382

0.268

6FX8002-5DG51

(4 G 6² + (2 x 1.5²))

17.3

1.5 ÜWM

open end

0.496

0.358

6FX8002-5DG61

(4 G 10² + (2 x 1.5²))

20.1

1.5 ÜWM

open end

0.713

0.515

6FX8002-5DG22

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 Speedtec

open end

0.221

0.136

6FX8002-5DG32

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 Speedtec

open end

0.285

0.187

6FX8002-5DG42

(4 G 4² + (2 x 1.5²))

15.2

1.5 Speedtec

open end

0.382

0.268

6FX8002-5DG52

(4 G 6² + (2 x 1.5²))

17.3

1.5 Speedtec

open end

0.496

0.358

6FX8002-5DG62

(4 G 10² + (2 x 1.5²))

20.1

1.5 Speedtec

open end

0.713

0.515

6FX8002-5DG13

(4 G 10² + (2 x 1.5²))

20.1

3 ÜWM

open end

0.713

0.515

6FX8002-5DG23

(4 G 16² + (2 x 1.5²))

23.8

3 ÜWM

open end

1.016

0.802

6FX8002-5DG33

(4 G 25² + (2 x 1.5²))

27.6

3 ÜWM

open end

1.438

1.144

6FX8002-5DG43

(4 G 35² + (2 x 1.5²))

31.9

3 ÜWM

open end

2.095

1.850

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

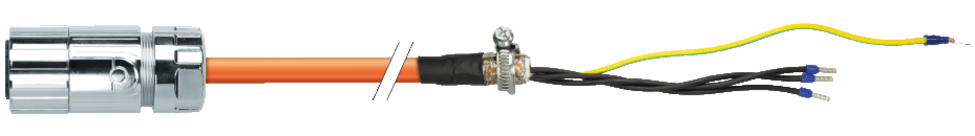

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5CA01

(4 G 1.5²)

9.5

1 ÜWM

AEH

0.136

0.080

6FX8002-5CA11

(4 G 2.5²)

11.0

1 ÜWM

AEH

0.198

0.120

6FX8002-5CQ01

(4 G 1.5²)

9.5

1 Speedtec

AEH

0.136

0.080

6FX8002-5CQ11

(4 G 2.5²)

11.0

1 Speedtec

AEH

0.198

0.120

6FX8002-5CA21

(4 G 1.5²)

9.5

1.5 ÜWM

AEH

0.136

0.080

6FX8002-5CA31

(4 G 2.5²)

11.0

1.5 ÜWM

AEH

0.198

0.120

6FX8002-5CA41

(4 G 4²)

12.3

1.5 ÜWM

AEH

0.273

0.195

6FX8002-5CA51

(4 G 6²)

14.9

1.5 ÜWM

AEH

0.393

0.296

6FX8002-5CA61

(4 G 10²)

18.2

1.5 ÜWM

AEH

0.616

0.445

6FX8002-5CQ21

(4 G 1.5²)

9.5

1.5 Speedtec

AEH

0.136

0.08

6FX8002-5CQ31

(4 G 2.5²)

11.0

1.5 Speedtec

AEH

0.198

0.120

6FX8002-5CQ41

(4 G 4²)

12.3

1.5 Speedtec

AEH

0.273

0.195

6FX8002-5CQ51

(4 G 6²)

14.9

1.5 Speedtec

AEH

0.393

0.296

6FX8002-5CQ61

(4 G 10²)

18.2

1.5 Speedtec

AEH

0.616

0.445

6FX8002-5CS54

(4 G 6²)

14.9

1.5 ÜWM

RKS

0.393

0.296

6FX8002-5CS64

(4 G 10²)

18.2

1.5 ÜWM

RKS

0.616

0.445

6FX8002-5CS24

(4 G 16²)

22.3

1.5 ÜWM

RKS

0.949

0.730

6FX8002-5CN64

(4 G 10²)

18.2

1.5 Speedtec

RKS

0.616

0.445

6FX8002-5CS14

(4 G 10²)

18.2

3 ÜWM

RKS

0.616

0.445

6FX8002-5CS23

(4 G 16²)

22.3

3 ÜWM

RKS

0.949

0.730

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
AEH = end sleeve
RKS = ring cable lug

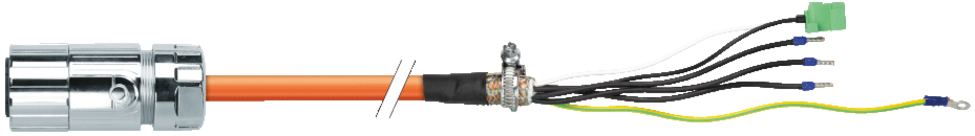

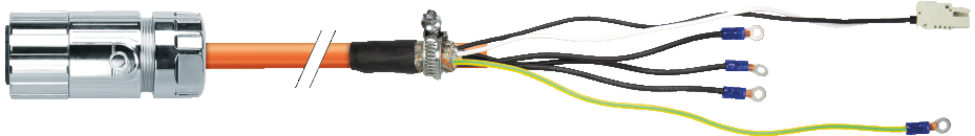

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5DA01

(4 G 1.5² + (2 x 1.5²))

12.0

1 ÜWM

RKS + Klemme

0.221

0.136

6FX8002-5DA11

(4 G 2.5² + (2 x 1.5²))

13.8

1 ÜWM

RKS + Klemme

0.285

0.187

6FX8002-5DQ01

(4 G 1.5² + (2 x 1.5²))

12.0

1 Speedtec

RKS + Klemme

0.221

0.136

6FX8002-5DQ11

(4 G 2.5² + (2 x 1.5²))

13.8

1 Speedtec

RKS + Klemme

0.285

0.187

6FX8002-5DA21

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 ÜWM

RKS + Klemme

0.221

0.136

6FX8002-5DA31

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 ÜWM

RKS + Klemme

0.285

0.187

6FX8002-5DA41

(4 G 4² + (2 x 1.5²))

15.2

1.5 ÜWM

RKS + Klemme

0.382

0.268

6FX8002-5DA51

(4 G 6² + (2 x 1.5²))

17.3

1.5 ÜWM

RKS + Klemme

0.496

0.358

6FX8002-5DA61

(4 G 10² + (2 x 1.5²))

20.1

1.5 ÜWM

RKS + Klemme

0.713

0.515

6FX8002-5DQ21

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 Speedtec

RKS + Klemme

0.221

0.136

6FX8002-5DQ31

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 Speedtec

RKS + Klemme

0.285

0.187

6FX8002-5DQ41

(4 G 4² + (2 x 1.5²))

15.2

1.5 Speedtec

RKS + Klemme

0.382

0.268

6FX8002-5DQ51

(4 G 6² + (2 x 1.5²))

17.3

1.5 Speedtec

RKS + Klemme

0.496

0.358

6FX8002-5DQ61

(4 G 10² + (2 x 1.5²))

20.1

1.5 Speedtec

RKS + Klemme

0.713

0.515

6FX8002-5EX11

(4 G 25² + (2 x 1.5²))

27.6

3 ÜWM

RKS + Klemme

1.438

1.144

6FX8002-5EX12

(4 G 16² + (2 x 1.5²))

23.8

3 ÜWM

RKS + Klemme

1.016

0.802

6FX8002-5DA13

(4 G 10² + (2 x 1.5²))

20.1

3 ÜWM

RKS + Klemme

0.713

0.515

6FX8002-5DA23

(4 G 16² + (2 x 1.5²))

23.8

3 ÜWM

RKS + Klemme

1.016

0.802

6FX8002-5DA33

(4 G 25² + (2 x 1.5²))

27.6

3 ÜWM

RKS + Klemme

1.438

1.144

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
RKS = ring cable lug

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5DS54

(4 G 6² + (2 x 1.5²))

17.3

1.5 ÜWM

RKS + Klemme

0.496

0.358

6FX8002-5DS64

(4 G 10² + (2 x 1.5²))

20.1

1.5 ÜWM

RKS + Klemme

0.713

0.515

6FX8002-5DN54

(4 G 6² + (2 x 1.5²))

17.3

1.5 Speedtec

RKS + Klemme

0.496

0.358

6FX8002-5DN64

(4 G 10² + (2 x 1.5²))

20.1

1.5 Speedtec

RKS + Klemme

0.713

0.515

6FX8002-5DS14

(4 G 10² + (2 x 1.5²))

20.1

3 ÜWM

RKS + Klemme

0.713

0.515

6FX8002-5DS23

(4 G 16² + (2 x 1.5²))

23.8

3 ÜWM

RKS + Klemme

1.016

0.802

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
RKS = ring cable lug

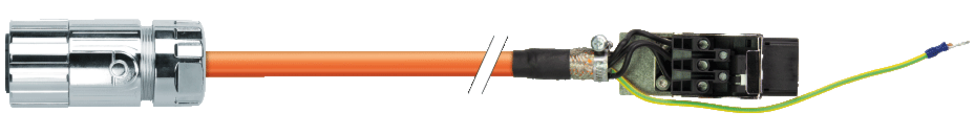

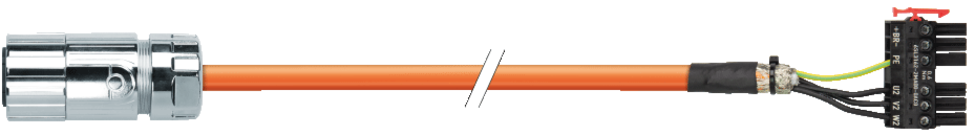

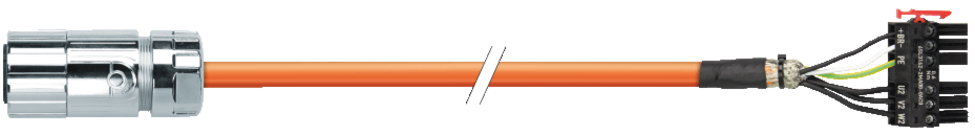

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5CS06

(4 G 1.5²)


9.5

1 ÜWM

SINAMICS S120

0.136

0.080

6FX8002-5CS16

(4 G 2.5²)

11.0

1 ÜWM

SINAMICS S120

0.198

0.120

6FX8002-5CN06

(4 G 1.5²)

9.5

1 Speedtec

SINAMICS S120

0.136

0.080

6FX8002-5CN16

(4 G 2.5²)

11.0

1 Speedtec

SINAMICS S120

0.198

0.120

6FX8002-5CS26

(4 G 1.5²)


9.5

1.5 ÜWM

SINAMICS S120

0.136

0.080

6FX8002-5CS36

(4 G 2.5²)

11.0

1.5 ÜWM

SINAMICS S120

0.198

0.120

6FX8002-5CS46

(4 G 4²)

12.3

1.5 ÜWM

SINAMICS S120

0.273

0.195

6FX8002-5CS56

(4 G 6²)

14.9

1.5 ÜWM

SINAMICS S120

0.393

0.296

6FX8002-5CS66

(4 G 10²)

18.2

1.5 ÜWM

SINAMICS S120

0.616

0.445

6FX8002-5CN26

(4 G 1.5²)

9.5

1.5 Speedtec

SINAMICS S120

0.136

0.080

6FX8002-5CN36

(4 G 2.5²)

11.0

1.5 Speedtec

SINAMICS S120

0.198

0.120

6FX8002-5CN46

(4 G 4²)

12.3

1.5 Speedtec

SINAMICS S120

0.273

0.195

6FX8002-5CN56

(4 G 6²)

14.9

1.5 Speedtec

SINAMICS S120

0.393

0.296

6FX8002-5CN66

(4 G 10²)

18.2

1.5 Speedtec

SINAMICS S120

0.616

0.445

Additional types upon request.

Varying parameters possible.

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5DS06

(4 G 1.5² + (2 x 1.5²))

12.0

1 ÜWM

SINAMICS S120

0.221

0.136

6FX8002-5DS16

(4 G 2.5² + (2 x 1.5²))

13.8

1 ÜWM

SINAMICS S120

0.285

0.187

6FX8002-5DN06

(4 G 1.5² + (2 x 1.5²))

12.0

1 Speedtec

SINAMICS S120

0.221

0.136

6FX8002-5DN16

(4 G 2.5² + (2 x 1.5²))

13.8

1 Speedtec

SINAMICS S120

0.285

0.187

6FX8002-5DN26

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 Speedtec

SINAMICS S120

0.221

0.136

6FX8002-5DN36

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 Speedtec

SINAMICS S120

0.285

0.187

6FX8002-5DN46

(4 G 4² + (2 x 1.5²))

15.2

1.5 Speedtec

SINAMICS S120

0.382

0.268

6FX8002-5DN56

(4 G 6² + (2 x 1.5²))

17.3

1.5 Speedtec

SINAMICS S120

0.496

0.358

6FX8002-5DN66

(4 G 10² + (2 x 1.5²))

20.1

1.5 Speedtec

SINAMICS S120

0.713

0.515

6FX8002-5DS26

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 ÜWM

SINAMICS S120

0.221

0.136

6FX8002-5DS36

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 ÜWM

SINAMICS S120

0.285

0.187

6FX8002-5DS46

(4 G 4² + (2 x 1.5²))

15.2

1.5 ÜWM

SINAMICS S120

0.382

0.268

6FX8002-5DS56

(4 G 6² + (2 x 1.5²))

17.3

1.5 ÜWM

SINAMICS S120

0.496

0.358

6FX8002-5DS66

(4 G 10² + (2 x 1.5²))

20.1

1.5 ÜWM

SINAMICS S120

0.713

0.515

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5CS01

(4 G 1.5²)

9.5

1 ÜWM

SINAMICS S120

0.136

0.080

6FX8002-5CS11

(4 G 2.5²)

11.0

1 ÜWM

SINAMICS S120

0.198

0.120

6FX8002-5CN01

(4 G 1.5²)

9.5

1 Speedtec

SINAMICS S120

0.136

0.080

6FX8002-5CN11

(4 G 2.5²)

11.0

1 Speedtec

SINAMICS S120

0.198

0.120

6FX8002-5CS21

(4 G 1.5²)

9.5

1.5 ÜWM

SINAMICS S120

0.136

0.080

6FX8002-5CS31

(4 G 2.5²)

11.0

1.5 ÜWM

SINAMICS S120

0.198

0.120

6FX8002-5CS41

(4 G 4²)

12.3

1.5 ÜWM

SINAMICS S120

0.273

0.195

6FX8002-5CS51

(4 G 6²)

14.9

1.5 ÜWM

SINAMICS S120

0.393

0.296

6FX8002-5CS61

(4 G 10²)

18.2

1.5 ÜWM

SINAMICS S120

0.616

0.445

6FX8002-5CN21

(4 G 1.5²)

9.5

1.5 Speedtec

SINAMICS S120

0.136

0.080

6FX8002-5CN31

(4 G 2.5²)

11.0

1.5 Speedtec

SINAMICS S120

0.198

0.120

6FX8002-5CN41

(4 G 4²)

12.3

1.5 Speedtec

SINAMICS S120

0.273

0.195

6FX8002-5CN51

(4 G 6²)

14.9

1.5 Speedtec

SINAMICS S120

0.393

0.296

6FX8002-5CN61

(4 G 10²)

18.2

1.5 Speedtec

SINAMICS S120

0.616

0.445

6FX8002-5CS13

(4 G 10²)

18.2

3 ÜWM

SINAMICS S120

0.616

0.445

6FX8002-5CS12

(4 G 2.5²)

11.0

open end

SINAMICS S120

0.198

0.120

6FX8002-5CS42

(4 G 4²)

12.3

open end

SINAMICS S120

0.273

0.195

6FX8002-5CS52

(4 G 6²)

14.9

open end

SINAMICS S120

0.393

0.296

6FX8002-5CS62

(4 G 10²)

18.2

open end

SINAMICS S120

0.616

0.445

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

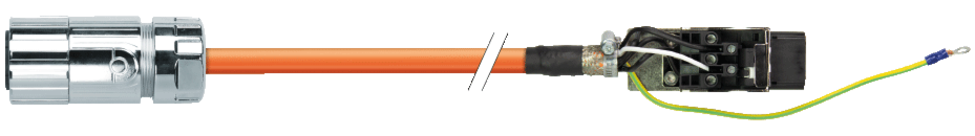

Power basic cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5DA20

(4 G 1.5² + (2 x 1.5²))

12.0

0.5 ÜWM

SINAMICS S120

0.221

0.136

6FX8002-5DS01

(4 G 1.5² + (2 x 1.5²))

12.0

1 ÜWM

SINAMICS S120

0.221

0.136

6FX8002-5DS11

(4 G 2.5² + (2 x 1.5²))

13.8

1 ÜWM

SINAMICS S120

0.285

0.187

6FX8002-5DN01

(4 G 1.5² + (2 x 1.5²))

12.0

1 Speedtec

SINAMICS S120

0.221

0.136

6FX8002-5DN11

(4 G 2.5² + (2 x 1.5²))

13.8

1 Speedtec

SINAMICS S120

0.285

0.187

6FX8002-5DS21

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 ÜWM

SINAMICS S120

0.221

0.136

6FX8002-5DS31

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 ÜWM

SINAMICS S120

0.285

0.187

6FX8002-5DS41

(4 G 4² + (2 x 1.5²))

15.2

1.5 ÜWM

SINAMICS S120

0.382

0.268

6FX8002-5DS51

(4 G 6² + (2 x 1.5²))

17.3

1.5 ÜWM

SINAMICS S120

0.496

0.358

6FX8002-5DS61

(4 G 10² + (2 x 1.5²))

20.1

1.5 ÜWM

SINAMICS S120

0.713

0.515

6FX8002-5DN21

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 Speedtec

SINAMICS S120

0.221

0.136

6FX8002-5DN31

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 Speedtec

SINAMICS S120

0.285

0.187

6FX8002-5DN41

(4 G 4² + (2 x 1.5²))

15.2

1.5 Speedtec

SINAMICS S120

0.382

0.268

6FX8002-5DN51

(4 G 6² + (2 x 1.5²))

17.3

1.5 Speedtec

SINAMICS S120

0.496

0.358

6FX8002-5DN61

(4 G 10² + (2 x 1.5²))

20.1

1.5 Speedtec

SINAMICS S120

0.713

0.515

6FX8002-5DS13

(4 G 10² + (2 x 1.5²))

20.1

3 ÜWM

SINAMICS S120

0.713

0.515

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

Extension cables

In addition to connection-ready harnessed basic cables, extension cables are also available. These are available as signal and power cables for drives – according to OEM specifications.
Simply order by quoting just the order number and cable length, and wait for your original quality goods to arrive.

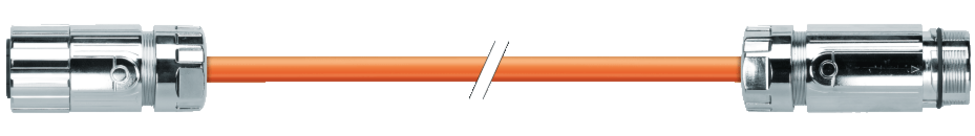

Power extension cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5CA05

(4 G 1.5²)

9.5

1 ÜWM

1 ÜWM

0.136

0.080

6FX8002-5CA15

(4 G 2.5²)

11.0

1 ÜWM

1 ÜWM

0.198

0.120

6FX8002-5CN05

(4 G 1.5²)

9.5

1 Speedtec

1 Speedtec

0.136

0.080

6FX8002-5CQ15

(4 G 2.5²)

11.0

1 Speedtec

1 Speedtec

0.198

0.120

6FX8002-5CA28

(4 G 1.5²)

9.5

1.5 ÜWM

1.5 ÜWM

0.136

0.080

6FX8002-5CA38

(4 G 2.5²)

11.0

1.5 ÜWM

1.5 ÜWM

0.198

0.120

6FX8002-5CA48

(4 G 4²)

12.3

1.5 ÜWM

1.5 ÜWM

0.273

0.195

6FX8002-5CA58

(4 G 6²)

14.9

1.5 ÜWM

1.5 ÜWM

0.393

0.296

6FX8002-5CA68

(4 G 10²)

18.2

1.5 ÜWM

1.5 ÜWM

0.616

0.445

6FX8002-5CQ28

(4 G 1.5²)

9.5

1.5 Speedtec

1.5 Speedtec

0.136

0.080

6FX8002-5CQ38

(4 G 2.5²)

11.0

1.5 Speedtec

1.5 Speedtec

0.198

0.120

6FX8002-5CQ48

(4 G 4²)

12.3

1.5 Speedtec

1.5 Speedtec

0.273

0.195

6FX8002-5CQ58

(4 G 6²)

14.9

1.5 Speedtec

1.5 Speedtec

0.393

0.296

6FX8002-5CQ68

(4 G 10²)

18.2

1.5 Speedtec

1.5 Speedtec

0.616

0.445

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

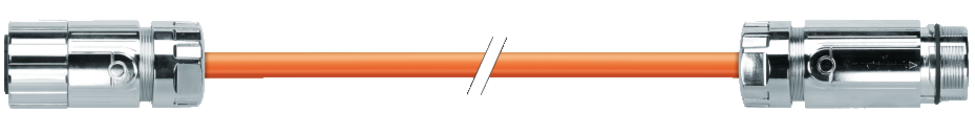

Power extension cables assembled to SIEMENS® 6FX8002

Siemens®
Assembling

Core number x Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

6FX8002-5DA05

(4 G 1.5² + (2 x 1.5²))

12.0

1 ÜWM

1 ÜWM

0.221

0.136

6FX8002-5DA15

(4 G 2.5² + (2 x 1.5²))

13.8

1 ÜWM

1 ÜWM

0.285

0.187

6FX8002-5DN05

(4 G 1.5² + (2 x 1.5²))

12.0

1 Speedtec

1 Speedtec

0.221

0.136

6FX8002-5DQ15

(4 G 2.5² + (2 x 1.5²))

13.8

1 Speedtec

1 Speedtec

0.285

0.187

6FX8002-5DA28

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 ÜWM

1.5 ÜWM

0.221

0.136

6FX8002-5DA38

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 ÜWM

1.5 ÜWM

0.285

0.187

6FX8002-5DA48

(4 G 4² + (2 x 1.5²))

15.2

1.5 ÜWM

1.5 ÜWM

0.382

0.268

6FX8002-5DA58

(4 G 6² + (2 x 1.5²))

17.3

1.5 ÜWM

1.5 ÜWM

0.496

0.358

6FX8002-5DA68

(4 G 10² + (2 x 1.5²))

20.1

1.5 ÜWM

1.5 ÜWM

0.713

0.515

6FX8002-5DQ28

(4 G 1.5² + (2 x 1.5²))

12.0

1.5 Speedtec

1.5 Speedtec

0.221

0.136

6FX8002-5DQ38

(4 G 2.5² + (2 x 1.5²))

13.8

1.5 Speedtec

1.5 Speedtec

0.285

0.187

6FX8002-5DQ48

(4 G 4² + (2 x 1.5²))

15.2

1.5 Speedtec

1.5 Speedtec

0.382

0.268

6FX8002-5DQ58

(4 G 6² + (2 x 1.5²))

17.3

1.5 Speedtec

1.5 Speedtec

0.496

0.358

6FX8002-5DQ68

(4 G 10² + (2 x 1.5²))

20.1

1.5 Speedtec

1.5 Speedtec

0.713

0.515

6FX8002-5DX18

(4 G 10² + (2 x 1.5²))

20.1

3 ÜWM

3 ÜWM

0.713

0.515

6FX8002-5DX28

(4 G 16² + (2 x 1.5²))

23.8

3 ÜWM

3 ÜWM

1.016

0.802

6FX8002-5DX38

(4 G 25² + (2 x 1.5²))

27.6

3 ÜWM

3 ÜWM

1.438

1.144

6FX8002-5DX48

(4 G 35² + (2 x 1.5²))

31.9

3 ÜWM

3 ÜWM

2.095

1.850

6FX8002-5DX58

(4 G 50² + (2 x 1.5²))

35.0

3 ÜWM

3 ÜWM

2.609

2.540

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
