Power cables assembled to SEW

Shielded continuous bending hi-flex cables

Properties of the cables

  • UV-resistant
  • CFC-free
  • Minimum bend radius 7.5 x Ø
  • Halogen-free
  • Flame-retardant

Approvals:
cURus,
based on VDE,
REACH/RoHS II

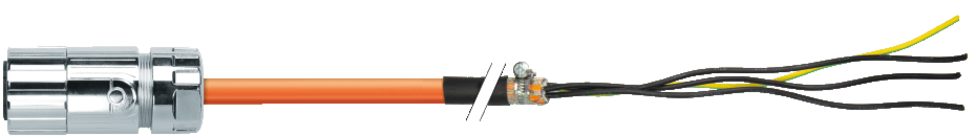

Power basic cables assembled to SEW

SEW
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

0590 4803

(4 G 4²)

12,3

1 ÜWM

open end

0,273

0,195

0590 6245

(4 G 1,5²)

9,5

1 ÜWM

open end

0,136

0,080

0590 6253

(4 G 2,5²)

11,0

1 ÜWM

open end

0,198

0,120

1335 0293

(4 G 6²)

14,9

1,5 ÜWM

open end

0,393

0,296

1335 0307

(4 G 10²)

18,2

1,5 ÜWM

open end

0,616

0,445

1335 0315

(4 G 16²)

22,3

1,5 ÜWM

open end

0,949

0,730

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

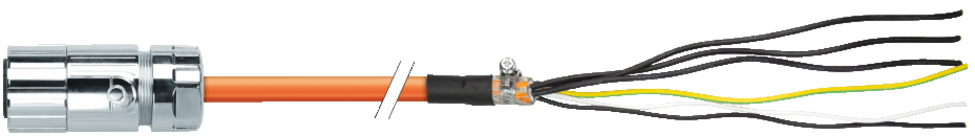

Power basic cables assembled to SEW

SEW
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

0590 4846

4 G 4 + (3 x 1.0) C

15.3

1 ÜWM

open end

0.417

0.262

0590 6318

4 G 1.5 + (3 x 1.0) C

12.3

1 ÜWM

open end

0.247

0.137

0590 6326

4 G 2.5 + (3 x 1.0) C

13.4

1 ÜWM

open end

0.318

0.190

1332 2139

(4 G 2.5² + ( 2 x 1²))

13.1

1 ÜWM

open end

0.274

0.180

1332 2147

(4 G 4² + (2 x 1²))

14.9

1 ÜWM

open end

0.378

0.260

1332 4853

(4 G 1.5² + (2 x 1²))

11.7

1 ÜWM

open end

0.212

0.140

1333 1221

(4 G 1.5² + (2 x 1²))

11.7

1 ÜWM

open end

0.212

0.140

1333 2155

(4 G 2.5² + (2 x 1²))

13.1

1 ÜWM

open end

0.274

0.180

1333 2163

(4 G 4² + (2 x 1²))

14.9

1 ÜWM

open end

0.378

0.260

1335 0153

4 G 6 + (3 x 1.5) C

17.5

1.5 ÜWM

open end

0.579

0.362

1335 0234

4 G 6 + (3 x 1.5) C

17.5

1.5 ÜWM

open end

0.579

0.362

1335 4302

4 G 1.5 + (3 x 1.0) C

12.3

1 ÜWM

open end

0.247

0.137

1335 4329

4 G 4 + (3 x 1.0) C

15.3

1 ÜWM

open end

0.417

0.262

1335 4388

4 G 1.5 + (3 x 1.0) C

12.3

1 ÜWM

open end

0.247

0.137

1335 4396

4 G 2.5 + (3 x 1.0) C

13.4

1 ÜWM

open end

0.318

0.190

1342 1603

4 G 4 + (3 x 1.0) C

15.3

1 ÜWM

open end

0.417

0.262

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

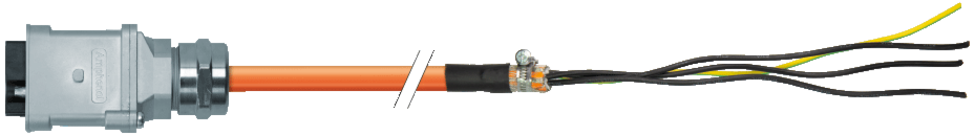

Power basic cables assembled to SEW

SEW
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

0199 1809

(4 G 1.5²)

9.5

C148

open end

0.136

0.080

0199 1825

(4 G 2.5²)

11

C148

open end

0.198

0.120

0199 1841

(4 G 4²)

12.3

C148

open end

0.273

0.195

0199 1868

(4 G 6²)

14.9

C148

open end

0.393

0.296

0199 1884

(4 G 10²)

18.2

C148

open end

0.616

0.445

1333 1140

(4 G 1.5²)

9.5

C148

open end

0.136

0.080

1333 1159

(4 G 2.5²)

11

C148

open end

0.198

0.120

Additional types upon request.

Varying parameters possible.

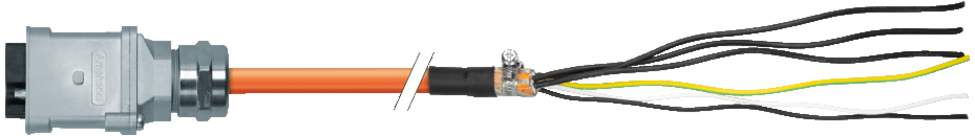

Power basic cables assembled to SEW

SEW
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

0199 19494 G 4 + (3 x 1.0) C15.3C148open end0.4170.262
0199 19654 G 6 + (3 x 1.5) C17.5C148open end0.3620.362
1333 11674 G 1.5 + (3 x 1.0) C12.3C148open end0.1370.137
1333 11754 G 2.5 + (3 x 1.0) C13.4C148open end0.1900.190

Additional types upon request.

Varying parameters possible.

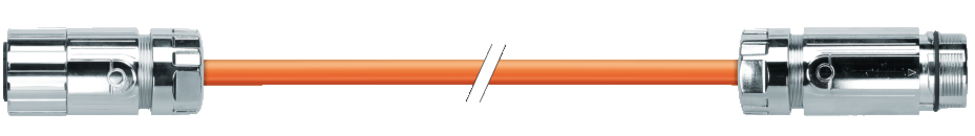

Power extension cables assembled to SEW

SEW
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

1333 2457

(4 G 1.5²)

9.5

1 ÜWM

1 ÜWM

0.136

0.080

1333 2465

(4 G 2.5²)

11

1 ÜWM

1 ÜWM

0.198

0.120

1333 2473

(4 G 4²)

12.3

1 ÜWM

1 ÜWM

0.273

0.195

1333 2481

4 G 1.5 + (3 x 1.0) C

12.3

1 ÜWM

1 ÜWM

0.247

0.137

1335 0021

(4 G 6²)

14.9

1.5 ÜWM

1.5 ÜWM

0.393

0.296

1335 0048

(4 G 10²)

18.2

1.5 ÜWM

1.5 ÜWM

0.616

0.445

1335 0056

(4 G 16²)

22.3

1.5 ÜWM

1.5 ÜWM

0.949

0.730

1335 0099

4 G 6 + (3 x 1.5) C

17.5

1.5 ÜWM

1.5 ÜWM

0.579

0.362

1335 4221

4 G 1.5 + (3 x 1.0) C

12.3

1 ÜWM

1 ÜWM

0.247

0.137

1335 4248

4 G 2.5 + (3 x 1.0) C

13.4

1 ÜWM

1 ÜWM

0.318

0.190

1335 4337

4 G 4 + (3 x 1.0) C

15.3

1 ÜWM

1 ÜWM

0.417

0.262

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

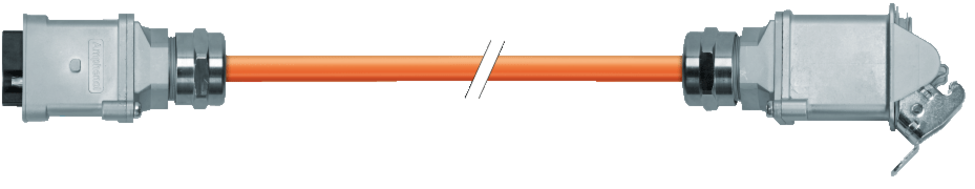

Power extension cables assembled to SEW

SEW
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

0199 2007

4 G 1.5 + (3 x 1.0) C

12.3

C148

C148

0.247

0.137

0199 204X

4 G 4 + (3 x 1.0) C

15.3

C148

C148

0.417

0.262

0199 2066

4 G 6 + (3 x 1.5) C

17.5

C148

C148

0.579

0.362

0199 5545

(4 G 4²)

12.3

C148

C148

0.273

0.195

0199 5561

(4 G 6²)

14.9

C148

C148

0.393

0.296

0199 5588

(4 G 10²)

18.2

C148

C148

0.616

0.445

1333 1183

(4 G 1.5²)

9.5

C148

C148

0.136

0.080

1333 1191

(4 G 2.5²)

11

C148

C148

0.198

0.120

1333 1205

4 G 1.5 + (3 x 1.0) C

12.3

C148

C148

0.247

0.137

1333 1213

4 G 2.5 + (3 x 1.0) C

13.4

C148

C148

0.318

0.190



Additional types upon request.

Varying parameters possible.
