Power cables assembled to LENZE

Shielded continuous bending hi-flex cables

Properties of the cables

  • UV-resistant
  • CFC-free
  • Minimum bend radius 7.5 x Ø
  • Halogen-free
  • Flame-retardant

Approvals:
cURus,
based on VDE,
REACH/RoHS II

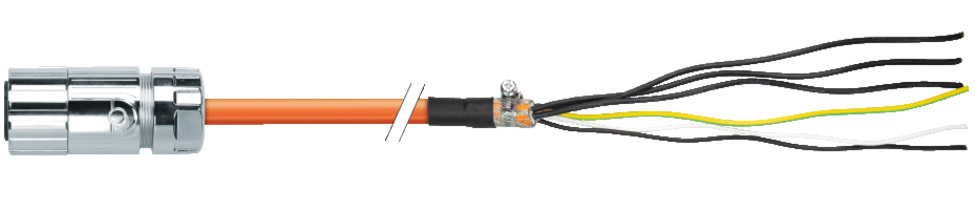

Power basic cables assembled to LENZE

LENZE
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

EYL0002AXXXXL01A00

5 G 1²

8.2

1 ÜWM

open end

0.097

0.048

EYL0002AXXXXL03A00

5 G 1²

8.2

1 Speedtec

open end

0.097

0.048

EYP0010AXXXXM01A00

(4 G 1² + (2 x 0.5²))

11.1

1 ÜWM

open end

0.166

0.090

EYP0010AXXXXM04A00

(4 G 1² + (2 x 0.5²))

11.1

1 Speedtec

open end

0.166

0.090

EYP0011AXXXXM01A00

(4 G 1.5² + (2 x 0.5²))

12.1

1 ÜWM

open end

0.206

0.110

EYP0011AXXXXM04A00

(4 G 1.5² + (2 x 0.5²))

12.1

1 Speedtec

open end

0.206

0.110

EYP0012AXXXXM01A00

(4 G 2.5² + (2 x 0.5²))

13.8

1 ÜWM

open end

0.268

0.150

EYP0012AXXXXM02A00

(4 G 2.5² + (2 x 0.5²))

13.8

1.5 ÜWM

open end

0.268

0.150

EYP0012AXXXXM04A00

(4 G 2.5² + (2 x 0.5²))

13.8

1 Speedtec

open end

0.268

0.150

EYP0012AXXXXM05A00

(4 G 2.5² + (2 x 0.5²))

13.8

1.5 Speedtec

open end

0.268

0.150

EYP0015AXXXXM03A00

4 G 10 + (2 x 1.0) C

20.1

1.5 ÜWM

open end

0.706

0.508

EYP0015AXXXXM06A00

4 G 10 + (2 x 1.0) C

20.1

1.5 Speedtec

open end

0.706

0.508

EYP0016AXXXXM03A00

4 G 16 + (2 x 1.0) C

23.8

1.5 ÜWM

open end

1.008

0.802

EYP0016AXXXXM06A00

4 G 16 + (2 x 1.0) C

23.8

1.5 Speedtec

open end

1.008

0.802

EYP0053AXXXXM02A00

(4 G 4² + (2 x 1²) + 2 x AW G22)

16.5

1.5 ÜWM

open end

0.420

0.280

EYP0053AXXXXM05A00

(4 G 4² + (2 x 1²) + 2 x AW G 22)

16.5

1.5 Speedtec

open end

0.420

0.280

EYP0054AXXXXM03A00

(4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

1.5 ÜWM

open end

0.540

0.360

EYP0054AXXXXM06A00

(4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

1.5 Speedtec

open end

0.540

0.360

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

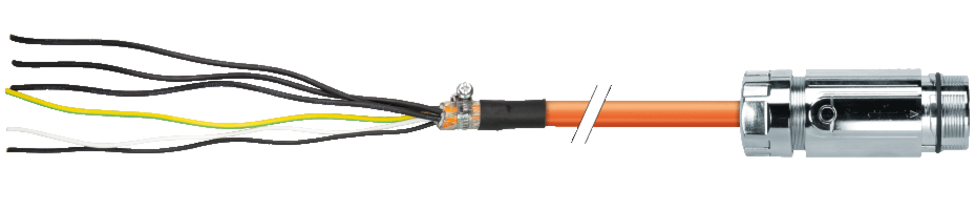

Power basic cables assembled to LENZE

LENZE
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

EYP0010VXXXXA00P04

(4 G 1² + (2 x 0.5²))

11.1

open end

1 Speedtec

0.166

0.09

EYP0011VXXXXA00P01

(4 G 1.5² + (2 x 0.5²))

12.1

open end

1 ÜWM

0.206

0.11

EYP0011VXXXXA00P04

(4 G 1.5² + (2 x 0.5²))

12.1

open end

1 Speedtec

0.206

0.11

EYP0012VXXXXA00P01

(4 G 2.5² + (2 x 0.5²))

13.8

open end

1 ÜWM

0.268

0.15

EYP0012VXXXXA00P02

(4 G 2.5² + (2 x 0.5²))

13.8

open end

1.5 ÜWM

0.268

0.15

EYP0012VXXXXA00P04

(4 G 2.5² + (2 x 0.5²))

13.8

open end

1 Speedtec

0.268

0.15

EYP0012VXXXXA00P05

(4 G 2.5² + (2 x 0.5²))

13.8

open end

1.5 Speedtec

0.268

0.15

EYP0015VXXXXA00P03

4   G  10  +  (2 x 1.0) C

20.1

open end

1.5 ÜWM

0.706

0.508

EYP0015VXXXXA00P06

4   G  10  +  (2 x 1.0) C

20.1

open end

1.5 Speedtec

0.706

0.508

EYP0016VXXXXA00P03

4   G  16  +  (2 x 1.0) C

23.8

open end

1.5 ÜWM

1.008

0.802

EYP0016VXXXXA00P06

4   G  16  +  (2 x 1.0) C

23.8

open end

1.5 Speedtec

1.008

0.802

EYP0053VXXXXA00P02

(4 G 4² + (2 x 1²) + 2 x AW G 22)

16.5

open end

1.5 ÜWM

0.42

0.28

EYP0053VXXXXA00P05

(4 G 4² + (2 x 1²) + 2 x AW G 22)

16.5

open end

1.5 Speedtec

0.42

0.28

EYP0054VXXXXA00P03

(4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

open end

1.5 ÜWM

0.54

0.36

EYP0054VXXXXA00P06

(4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

open end

1.5 Speedtec

0.54

0.36

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread

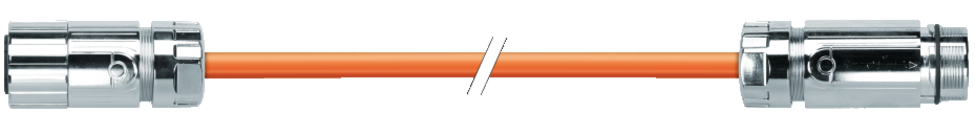

Power extension cables assembled to LENZE

LENZE
Assembling

Core number x
Cross-section
[mm2]

max. ∅
[mm]

Connection
Motor

Connection
Controler

Cable weight
[kg/m]

Copper weight
[kg/m]

EYP0010VXXXXM01P01

(4 G 1² + (2 x 0.5²))

11.1

1 ÜWM

1 ÜWM

0.166

0.090

EYP0010VXXXXM01P04

(4 G 1² + (2 x 0.5²))

11.1

1 ÜWM

1 Speedtec

0.166

0.090

EYP0010VXXXXM04P01

(4 G 1² + (2 x 0.5²))

11.1

1 Speedtec

1 ÜWM

0.166

0.090

EYP0010VXXXXM04P04

(4 G 1² + (2 x 0.5²))

11.1

1 Speedtec

1 Speedtec

0.166

0.090

EYP0011VXXXXM01P01

(4 G 1.5² + (2 x 0.5²))

12.1

1 ÜWM

1 ÜWM

0.206

0.110

EYP0011VXXXXM01P04

(4 G 1.5² + (2 x 0.5²))

12.1

1 ÜWM

1 Speedtec

0.206

0.110

EYP0011VXXXXM04P01

(4 G 1.5² + (2 x 0.5²))

12.1

1 Speedtec

1 ÜWM

0.206

0.110

EYP0011VXXXXM04P04

(4 G 1.5² + (2 x 0.5²))

12.1

1 Speedtec

1 Speedtec

0.206

0.110

EYP0012VXXXXM01P01

(4 G 2.5² + (2 x 0.5²))

13.8

1 ÜWM

1 ÜWM

0.268

0.150

EYP0012VXXXXM01P04

(4 G 2.5² + (2 x 0.5²))

13.8

1 ÜWM

1 Speedtec

0.268

0.150

EYP0012VXXXXM02P02

(4 G 2.5² + (2 x 0.5²))

13.8

1.5 ÜWM

1.5 ÜWM

0.268

0.150

EYP0012VXXXXM02P05

(4 G 2.5² + (2 x 0.5²))

13.8

1.5 ÜWM

1.5 Speedtec

0.268

0.150

EYP0012VXXXXM04P01

(4 G 2.5² + (2 x 0.5²))

13.8

1 Speedtec

1 ÜWM

0.268

0.150

EYP0012VXXXXM04P04

(4 G 2.5² + (2 x 0.5²))

13.8

1 Speedtec

1 Speedtec

0.268

0.150

EYP0012VXXXXM05P02

(4 G 2.5² + (2 x 0.5²))

13.8

1.5 Speedtec

1.5 ÜWM

0.268

0.150

EYP0012VXXXXM05P05

(4 G 2.5² + (2 x 0.5²))

13.8

1.5 Speedtec

1.5 Speedtec

0.268

0.150

EYP0015VXXXXM03P03

4 G 10 + (2 x 1.0) C

20.1

1.5 ÜWM

1.5 ÜWM

0.706

0.508

EYP0015VXXXXM03P06

4 G 10 + (2 x 1.0) C

20.1

1.5 ÜWM

1.5 Speedtec

0.706

0.508

EYP0015VXXXXM06P03

4 G 10 + (2 x 1.0) C

20.1

1.5 Speedtec

1.5 ÜWM

0.706

0.508

EYP0015VXXXXM06P06

4 G 10 + (2 x 1.0) C

20.1

1.5 Speedtec

1.5 Speedtec

0.706

0.508

EYP0016VXXXXM03P03

4 G 16 + (2 x 1.0) C

23.8

1.5 ÜWM

1.5 ÜWM

1.008

0.802

EYP0016VXXXXM03P06

4 G 16 + (2 x 1.0) C

23.8

1.5 ÜWM

1.5 Speedtec

1.008

0.802

EYP0016VXXXXM06P03

4 G 16 + (2 x 1.0) C

23.8

1.5 Speedtec

1.5 ÜWM

1.008

0.802

EYP0016VXXXXM06P06

4 G 16 + (2 x 1.0) C

23.8

1.5 Speedtec

1.5 Speedtec

1.008

0.802

EYP0053VXXXXM02P02

 (4 G 4² + (2 x 1²) + 2 x AW G 22)

16.5

1.5 ÜWM

1.5 ÜWM

0.42

0.280

EYP0053VXXXXM02P05

 (4 G 4² + (2 x 1²) + 2 x AW G 22)

16.5

1.5 ÜWM

1.5 Speedtec

0.42

0.280

EYP0053VXXXXM05P02

 (4 G 4² + (2 x 1²) + 2 x AW G 22)

16.5

1.5 Speedtec

1.5 ÜWM

0.42

0.280

EYP0053VXXXXM05P05

 (4 G 4² + (2 x 1²) + 2 x AW G 22)

16.5

1.5 Speedtec

1.5 Speedtec

0.42

0.280

EYP0054VXXXXM03P03

 (4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

1.5 ÜWM

1.5 ÜWM

0.54

0.360

EYP0054VXXXXM03P06

 (4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

1.5 ÜWM

1.5 Speedtec

0.54

0.360

EYP0054VXXXXM06P03

 (4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

1.5 Speedtec

1.5 ÜWM

0.54

0.360

EYP0054VXXXXM06P06

 (4 G 6² + (2 x 1²) + 2 x AW G 22)

18.8

1.5 Speedtec

1.5 Speedtec

0.54

0.360

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
