Power cables according to BOSCH REXROTH

Approvals:
cURus,
based on VDE,
REACH/RoHS II

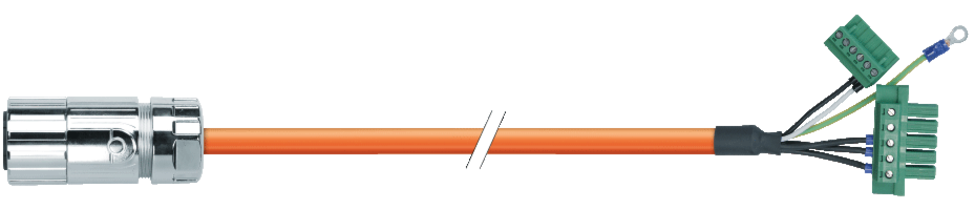

Power basic cables assembled to BOSCH REXROTH

Bosch Rexroth Assembling	Core number x Cross-section [mm²]	max. ∅ [mm]	Connection Motor	Connection Controler	Cable weight [kg/m]	Copper weight [kg/m]
IKG4008	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	AEH	0.194	0.136
RKL0005	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	RLS	0.194	0.136
RKL0014	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	RLS	0.194	0.136
RKL0015	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1 ÜWM	RLS	0.234	0.170
RKL0016	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1.5 ÜWM	RLS	0.234	0.170
RKL0017	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1.5 ÜWM	RLS	0.234	0.170
RKL0018	(4 G 2.5² + 2 x (2 x 1²))	14.3	1.5 ÜWM	RLS	0.327	0.229
RKL0019	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	RLS	0.194	0.136
RKL0046	(4 G 2.5²+2x(2x1²))	14.3	1 ÜWM	RLS	0.327	0.229
RKL0049	(4 G 6² + (2 x 1²) + (2 x 1.5²))	17.9	1.5 ÜWM	RLS	0.552	0.445
RKL0050	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1.5 ÜWM	RLS	0.234	0.170
RKL0052	(4 G 2.5² + 2 x (2 x 1²))	14.3	1.5 ÜWM	RLS	0.327	0.229
RKL0053	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	RLS	0.194	0.136
RKL0057	(4 G 2.5² + 2 x (2 x 1²))	14.3	1 ÜWM	RLS	0.327	0.229
RKL0058	(4 G 4² + (2 x 1²) + (2 x 1.5²))	16.1	1.5 ÜWM	RLS	0.435	0.328
RKL4300	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1 ÜWM	RLS	0.234	0.170
RKL4301	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1 ÜWM	RLS	0.234	0.170
RKL4302	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	RLS	0.194	0.136
RKL4303	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	RLS	0.194	0.136

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
RLS = Connector package

Power basic cables assembled to BOSCH REXROTH

Bosch Rexroth Assembling	Core number x Cross-section [mm²]	max. ∅ [mm]	Connection Motor	Connection Controler	Cable weight [kg/m]	Copper weight [kg/m]
RKL4306	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1.5 ÜWM	RLS	0.234	0.170
RKL4307	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1.5 ÜWM	RLS	0.234	0.170
RKL4308	(4 G 2.5² + 2 x (2 x 1²))	14.3	1.5 ÜWM	RLS	0.327	0.229
RKL4309	(4 G 2.5² + 2 x (2 x 1²))	14.3	1.5 ÜWM	RLS	0.327	0.229
RKL4310	(4 G 2.5² + 2 x (2 x 1²))	14.3	1.5 ÜWM	RLS	0.327	0.229
RKL4313	(4 G 4² + (2 x 1²) + (2 x 1.5²))	16.1	1.5 ÜWM	RLS	0.435	0.328
RKL4314	(4 G 4² + (2 x 1²) + (2 x 1.5²))	16.1	1.5 ÜWM	RLS	0.435	0.328
RKL4315	(4 G 4² + (2 x 1²) + (2 x 1.5²))	16.1	1.5 ÜWM	RLS	0.435	0.328
RKL4317	(4 G 6² + (2 x 1²) + (2 x 1.5²))	17.9	1.5 ÜWM	RLS	0.552	0.445
RKL4318	(4 G 6² + (2 x 1²) + (2 x 1.5²))	17.9	1.5 ÜWM	RLS	0.552	0.445
RKL4345	(4 G 2.5² + 2 x (2 x 1²))	14.3	1 ÜWM	RLS	0.327	0.229
RKL4346	(4 G 2.5² + 2 x (2 x 1²))	14.3	1 ÜWM	RLS	0.327	0.229

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
RLS = Connector package

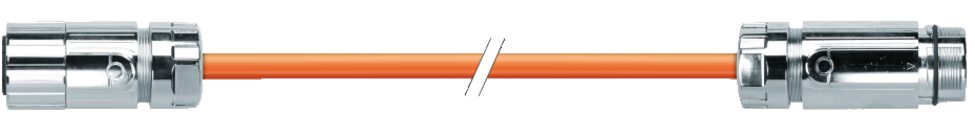

Power extension cables assembled to BOSCH REXROTH

Bosch Rexroth Assembling	Core number x Cross-section [mm²]	max. ∅ [mm]	Connection Motor	Connection Controler	Cable weight [kg/m]	Copper weight [kg/m]
IKG4006	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	1 ÜWM	0.194	0.136
IKG4027	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1 ÜWM	1 ÜWM	0.234	0.170
IKG4074	(4 G 2.5² + 2 x (2 x 1²))	14.3	1 ÜWM	1 ÜWM	0.327	0.229
RKL0006	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	1 ÜWM	0.194	0.136
RKL4304	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1 ÜWM	1 ÜWM	0.234	0.170
RKL4305	(4 G 1² + 2 x (2 x 0.75²))	11.3	1 ÜWM	1 ÜWM	0.194	0.136
RKL4347	(4 G 2.5² + 2 x (2 x 1²))	14.3	1 ÜWM	1 ÜWM	0.327	0.229
RKL4311	(4 G 1.5² + 2 x (2 x 0.75²))	12.5	1.5 ÜWM	1.5 ÜWM	0.234	0.170
RKL4312	(4 G 2.5² + 2 x (2 x 1²))	14.3	1.5 ÜWM	1.5 ÜWM	0.327	0.229
RKL4316	(4 G 4² + (2 x 1²) + (2 x 1.5²))	16.1	1.5 ÜWM	1.5 ÜWM	0.435	0.328
RKL4319	(4 G 6² + (2 x 1²) + (2 x 1.5²))	17.9	1.5 ÜWM	1.5 ÜWM	0.552	0.445

Additional types upon request.

Varying parameters possible.
ÜWM = coupling nut with full thread
