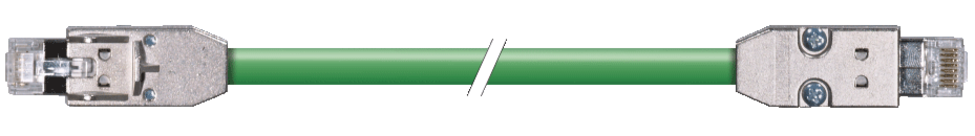

TRAXLINE® CAT.5E / CAT.6 700 CD assembled
Shielded continuous bending hi-flex CAT.5E / CAT.6 PUR cable
Properties of the TRAXLINE® cables
- UV-stable
- CFC-free
- Minimum bend radius 7.5 x Ø
- Halogen-free
- Flame-retardant
Approvals:
cURus,
based on VDE,
REACH/RoHS II
CAT cable | Cable | max. ∅ | Connection | Connection | Cable weight | Copper weight |
|---|---|---|---|---|---|---|
CAT.5E straight | ((4 x 2 x AWG 26)) | 7.1 | RJ45 8pol | RJ45 8pol | 0.056 | 0.031 |
CAT.5E cross-over | ((4 x 2 x AWG 26)) | 7.1 | RJ45 8pol | RJ45 8pol | 0.056 | 0.031 |
CAT.6E straight | ((4 x 2 x AWG 26)) | 8.0 | RJ45 8pol | RJ45 8pol | 0.065 | 0.034 |
CAT.6E cross-over | ((4 x 2 x AWG 26)) | 8.0 | RJ45 8pol | RJ45 8pol | 0.065 | 0.034 |
Additional types upon request.
Varying parameters possible.
Smaller bend radii are possible in many cases – contact us about options.
