XLC1650 RM

XLC1650 RM

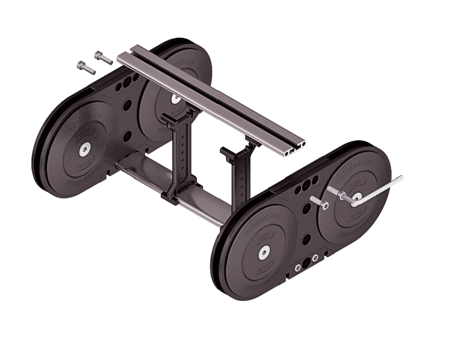

Aluminum stay RM – Frame stay, solid

Properties

  • Aluminum profile bars for heavy loads and maximum cable carrier widths. Double threaded joints on both sides “Heavy Duty”.
  • Available customized in 1 mm grid.
  • Inside/outside: Threaded joints easy to release.

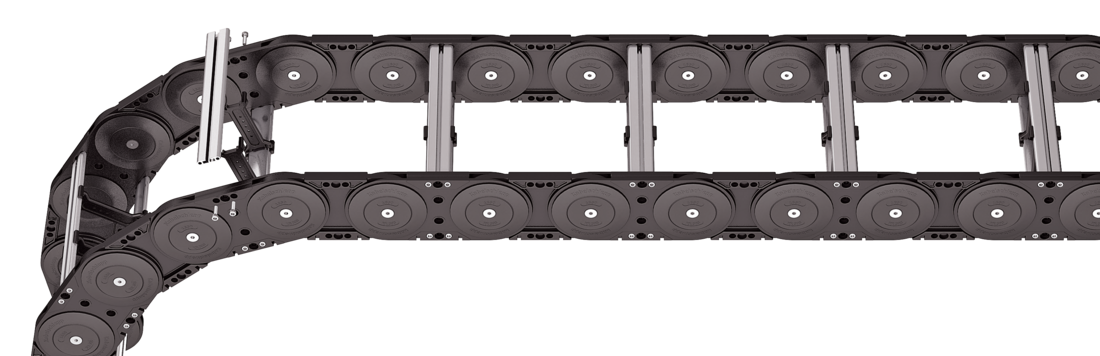

Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 200 - 1000 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">165</td> <td class="hi red">108</td> <td class="hg">140</td> <td class="hgdash">147</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 200 - 1000 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 68</td> <td class="bef">Bi + 68</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">10.5 - 15.3</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
250 300 350 400 450 500 550

Order example

XLC1650
Type
600
Bi [mm]
RM
Stay variant
350
KR [mm]
-
4125
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS – halfstayed).

As a standard, dividers or the complete divider System (dividers with height separations) are movable in the cross section (version A).

Divider system TS0
without height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A62517

The dividers can be moved in the cross section.

Divider system TS3
with height separation consisting of plastic partitions

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A116/42*82

* for aluminium partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Aluminum partitions in 1 mm increments with ax > 42 mm are also available.

ax (center distance of dividers) [mm]

ac (nominal width of inner chamber) [mm]

161823283233384348586468
81015202425303540505660
78808896112128144160176192208
70728088104120136152168184200

When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 5 mm). Twin dividers are also suitable for retrofitting in the partition system.

Order example

TS3
Divider system
A
Version
3
nT
K1
K4
Chamber
34
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS3), the version, and the number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax].

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection

Connection surface
A – connecting surface outside
I – connecting surface inside

Order example

Steel
Steel
End connector
F
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
