TKR0150.030

TKR0150.030

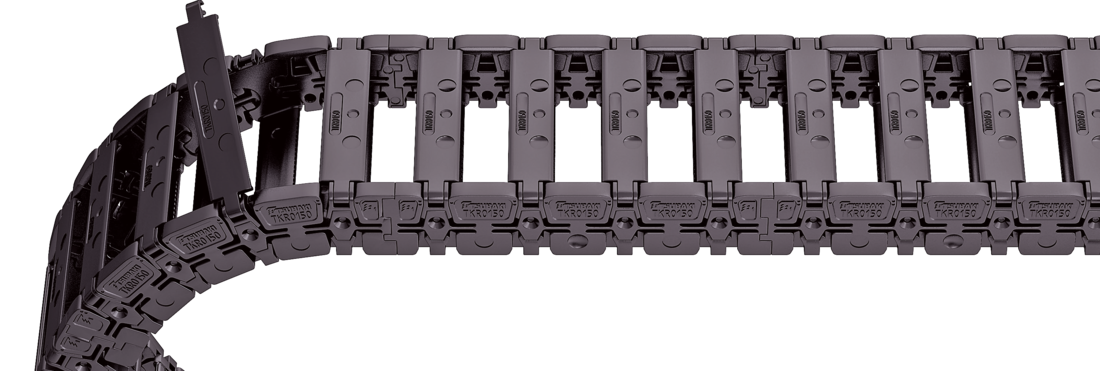

Stay variant 030 – with outside opening and detachable crossbars

Properties

  • Low-vibration plastic frame with particularly long service life thanks to molded chain links.
  • Swivable and detachable on one side in any position.
  • Outside: Swivable and detachable.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 20 - 60 mm

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t for even number of chain links
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">15</td> <td class="hi red">22</td> <td class="hg">27.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 14</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0.3 - 0.5</td> </tr> </tbody> </table>
Bi [mm]
20 40 60
KR [mm]
40 50 75

Order example

TKR0150
Type
60
Bi [mm]
030
Stay variant
75
KR [mm]
-
800
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As standard, the divider system is mounted on every 2nd chain link As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

The dividers are easily attached to the stay for applications with transverse accelerations and for applications laying on the side by simply turning them. The arresting cams click into place in the locking grids in the crossbars (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A564
B6642

Divider system TS1
with continuous height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A5642
B66422

Order example

TS1
Divider system
A
Version
3
nT
-
VD0
-
VD1
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT ].

If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 0,6 Nm for screws M4

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Order example

Plastic
Plastic
End connector
F
M
Connection point
A
A
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
